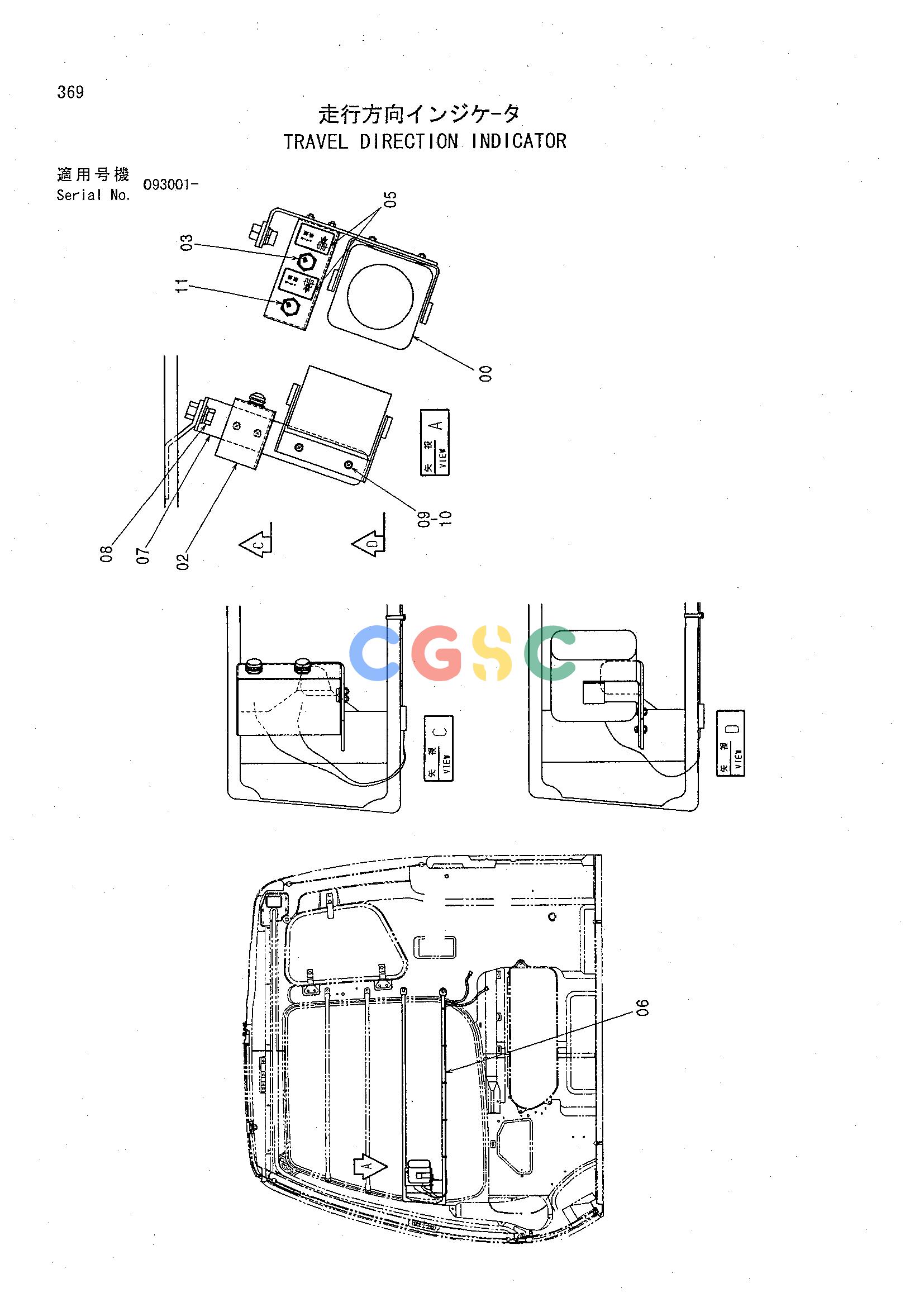

日立零件查询（CHR70）TRAVEL DIRECTION INDICATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
567 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4413115 | [1] | GAUGE;LEVEL | |
| 00A. | 4127782 | [1] | BULB | |
| 02. | 8080287 | [1] | BOX | |
| 03. | 4177142 | [1] | LAMP;PILOT | |
| 05. | 4432499 | [1] | NAME-PLATE | |
| 06. | 4432498 | [1] | GUARD | |
| 06A. | 4439914 | [1] | HARNESS;WIRE | |
| 06B. | 4469142 | [5] | CLIP;BAND | |
| 07. | 4438782 | [1] | BRACKET | |
| 08. | J021020 | [1] | BOLT;SEMS | |
| 08. | J271020 | [1] | BOLT;SEMS | TJ901020 |
| 08. | J271020 | [1] | BOLT;SEMS | TJ222010 |
| 09. | J680412 | [4] | SCREW;SEMS | |
| 10. | J230004 | [4] | NUT | |
| 11. | 4165911 | [1] | LAMP;PILOT | |
