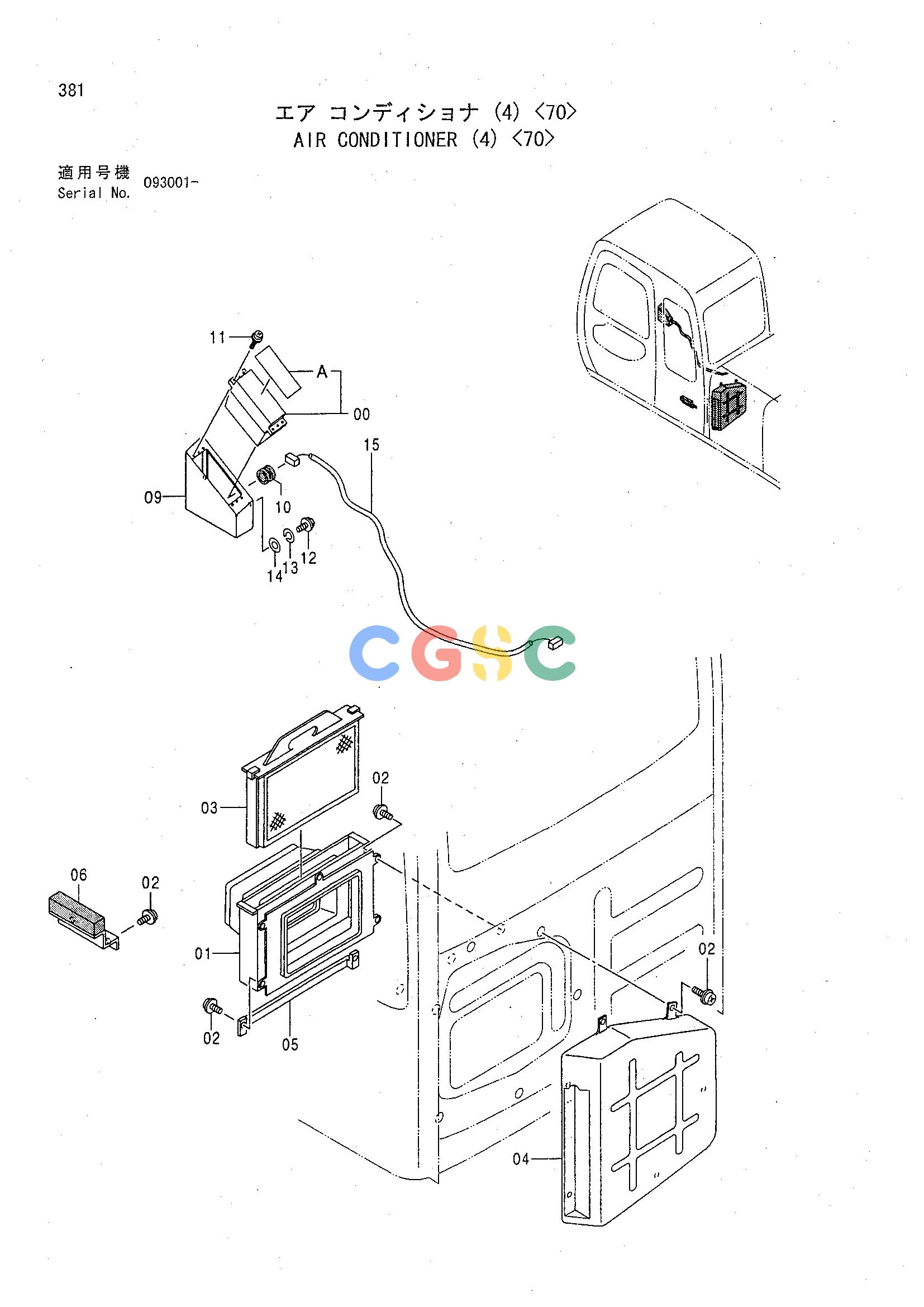

日立零件查询（CHR70）AIR CONDITIONER (4) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
376 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4383383 | [1] | CONTROLER | |
| 00A. | 4388121 | [1] | PANEL | |
| 01. | 4350238 | [1] | DUCT | |
| 02. | J460616 | [13] | SCREW;SEMS | |
| 03. | 4350249 | [1] | FILTER | |
| 04. | 4350234 | [1] | DUCT | |
| 05. | 3074721 | [1] | BRACKET | |
| 06. | 8064900 | [1] | BRACKET | |
| 09. | 7033320 | [1] | COVER | |
| 10. | 4159363 | [1] | BUSHING;RUBBER | |
| 11. | J680514 | [4] | SCREW;SEMS | |
| 12. | J900816 | [2] | BOLT | |
| 13. | A590908 | [2] | WASHER;SPRING | |
| 14. | A590108 | [2] | WASHER;PLANE | |
| 15. | 4385341 | [1] | HARNESS;WIRE | |
