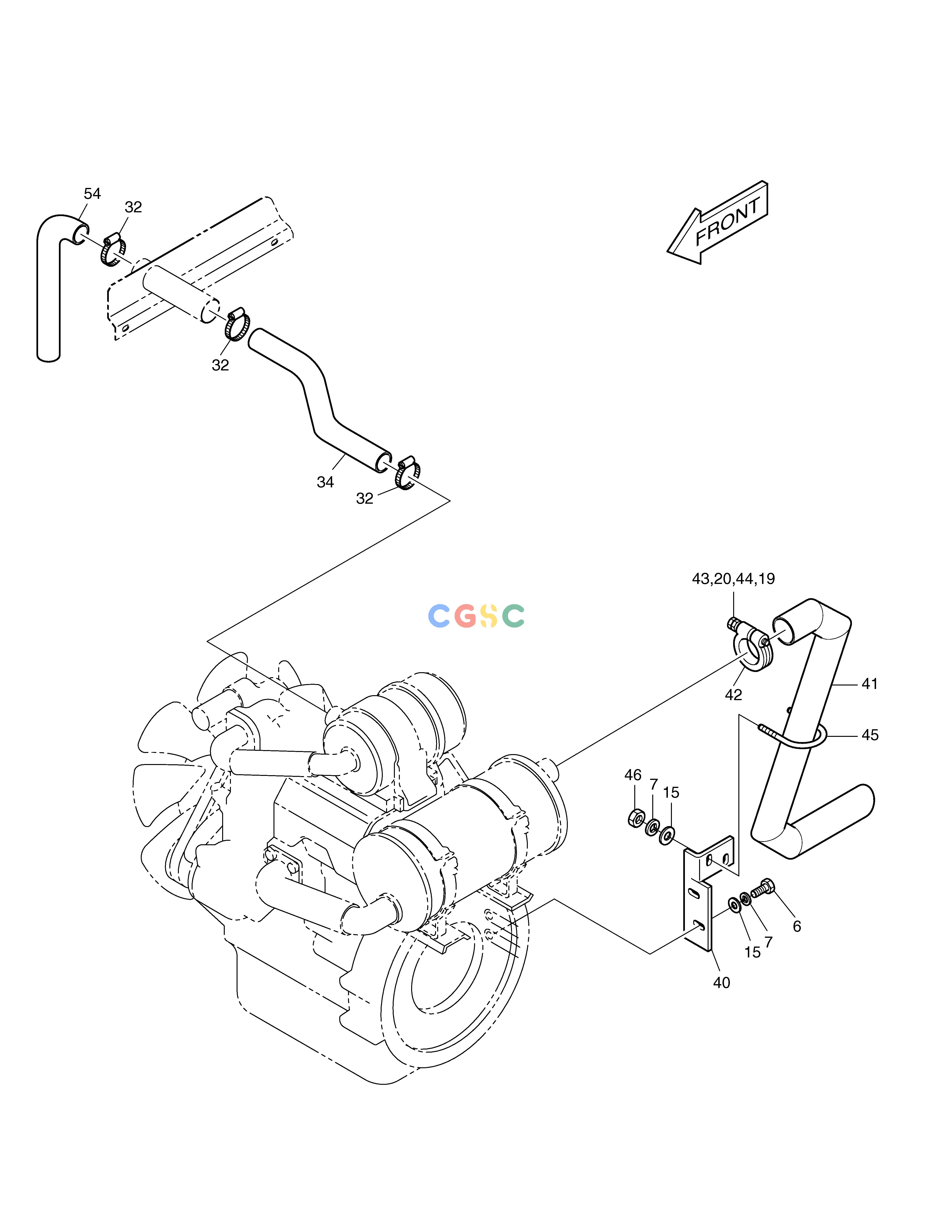

斗山零件查询ENGINE MOUNTING(3) - INTAKE & EXHAUST SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
241 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
201-00086
|
[-] |
ENGINE MOUNT
|
|
| 15. |
2114-1058D10
|
[4] |
WASHER
|
|
| 19. |
S5102503
|
[1] |
. WASHER
|
|
| 20. |
S5010513
|
[2] |
WASHER
|
|
| 32. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 32. |
S8450044
|
[3] |
CLAMP;HOSE
|
|
| 34. |
185-00281
|
[1] |
HOSE;AIR CLEANER
|
|
| 40. |
2197-1287
|
[1] |
BRACKET;TAIL PIPE
|
|
| 41. |
2182-1556
|
[1] |
PIPE;TAIL
|
|
| 42. |
894473-5630
|
[1] |
CLAMP;EXH PIPE
|
|
| 43. |
S0556653
|
[1] |
BOLT M8X1.25X65
|
|
| 44. |
S4012533
|
[1] |
NUT
|
|
| 45. |
2120-1413D9
|
[1] |
BOLT;U
|
|
| 46. |
S4012633
|
[2] |
NUT
|
|
| 54. |
K1008253
|
[1] |
HOSE
|
|
| 6. |
S0512053
|
[2] |
BOLT
|
|
| 7. |
S5102603
|
[4] |
. WASHER
|
|
