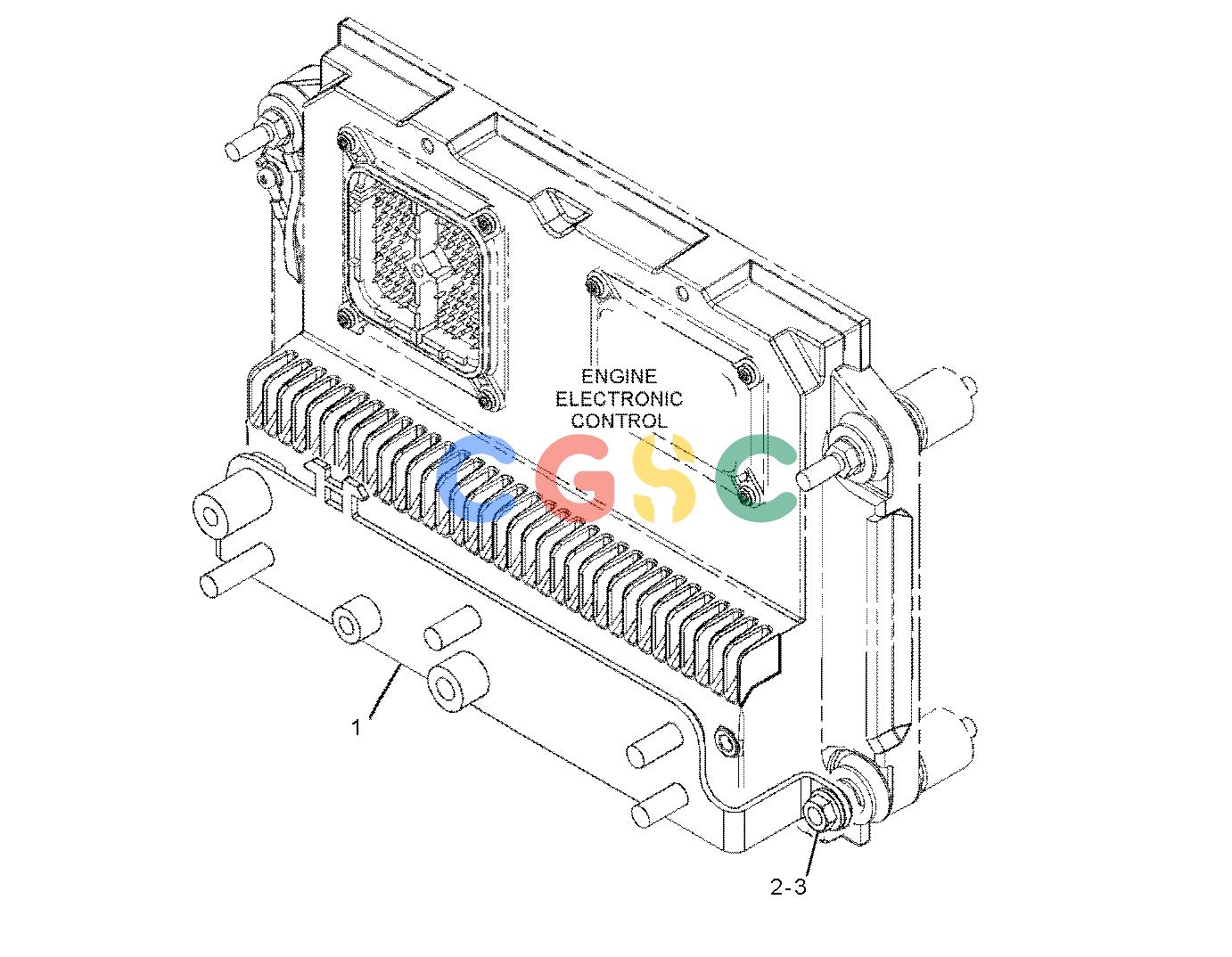

卡特零件查询（725C2） 343-9072: MOUNTING GP-CONNECTOR
广数供应链运营团队, 15 02月, 2025，浏览：
168 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 325-1872 | [1] | COVER AS | |
| 2. | 352-8980 | [1] | PLATE AS | |
| | 6V-6716 | [2] | RIVET-TRUSS HEAD | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| | 8T-8874M | [8] | NUT-WELD(M5X0.8-THD) | |
| | 9R-2160M | [1] | BOSS(M8X1.25X25-MM) | |
| | 109-1645 | [1] | CLIP | |
| 3. | 134-1374M | [4] | BOLT-SOCKET HEAD(M5X0.8X20-MM) | |
| 4. | 178-3336M | [4] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 5. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 6. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
