纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6230[001]) - SOUND SUPPRESSION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
781 次

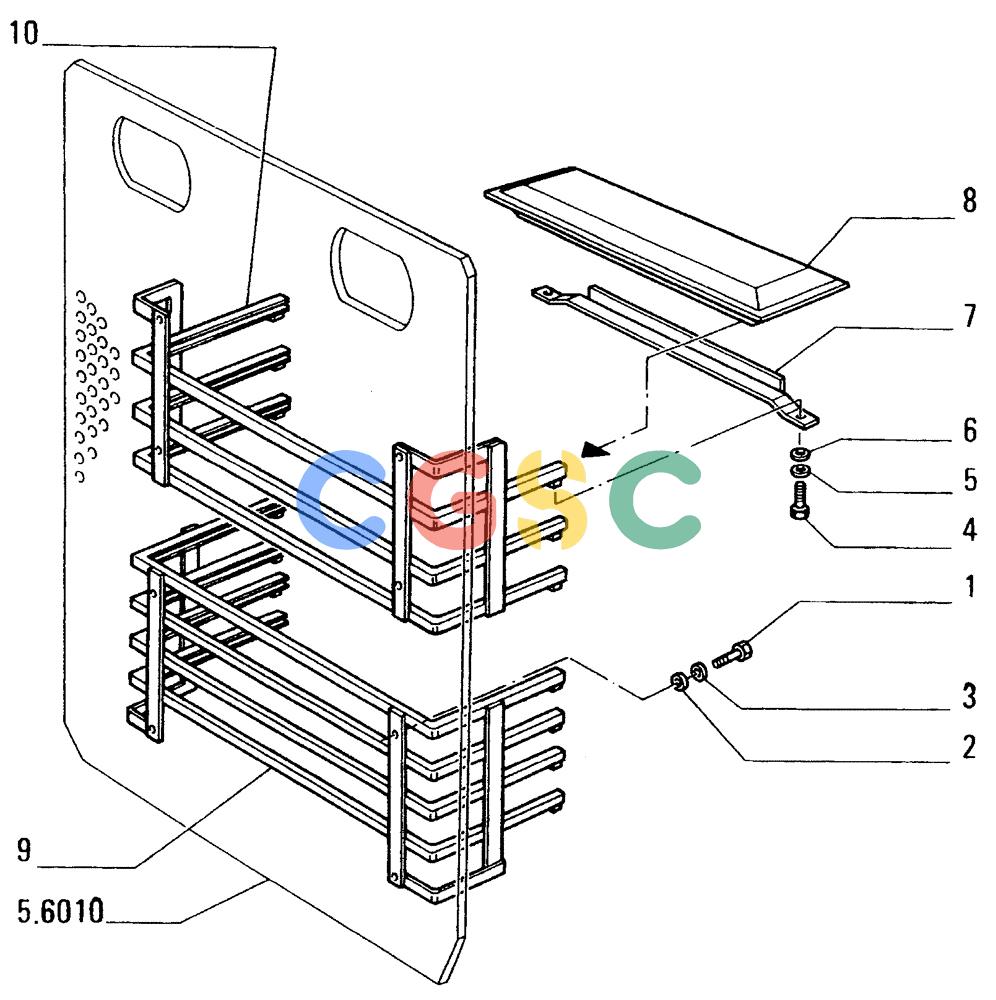

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11106031 | [8] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LECBOLT, Hex, M10 x 20, 10.9, Full Thd |
| 2. | 12626231 | [8] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 3. | 10615779 | [8] | LOCK WASHER,Ext Tooth, M10 | MKTWASHER, LOCK, Ext Tooth, M10 Superseded by part number: 12605671 |
| 4. | 16043131 | [14] | BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd | LEC |
| 5. | 10615679 | [14] | LOCK WASHER,Ext Tooth, M8 | BHBWASHER Superseded by part number: 10615671 |
| 6. | 12645031 | [14] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 7. | 79018020 | [7] | CROSSRAIL | LECCROSS BEAM |
| 8. | 79018014 | [7] | PANEL | LEC |
| 9. | 79094594 | [1] | FRAME | LEC- LOWER |
| 10. | 79094593 | [1] | FRAME | LEC- UPPER |
