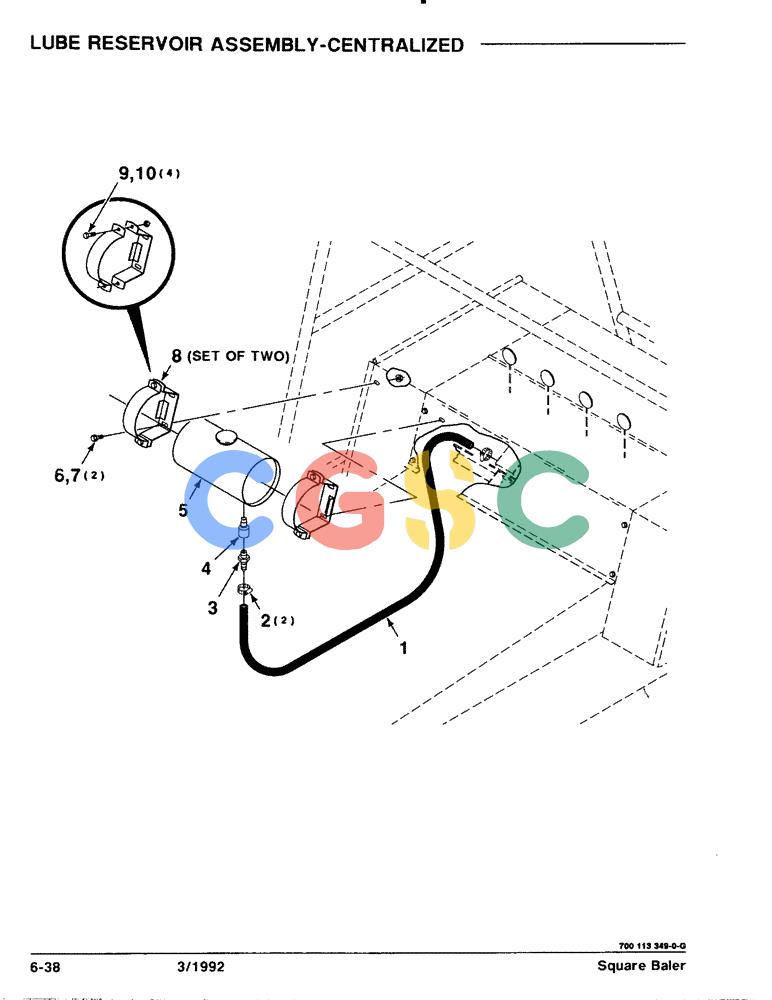

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (6-38) - LUBE RESERVOIR ASSEMBLY, CENTRALIZED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
517 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700706284
|
[1] |
FLEXIBLE HOSE
|
CAS
HOSE - HYDRAULIC Superseded by part number: 526602R1
|
| 2. |
7020019
|
[2] |
HOSE CLAMP
|
CAS
CLAMP - HOSE Superseded by part number: 87625624
|
| 3. |
846915
|
[1] |
INSERT
|
CAS
|
| 4. |
700706288
|
[1] |
ADAPTER
|
CAS
- SEDIMENT TRAP
|
| 5. |
700706285
|
[1] |
RESERVOIR, HYDRAULIC
|
HFI
RESERVOIR - OIL Superseded by part number: 700129433, 700715415, 700129435
|
| 6. |
7703424
|
[2] |
FLANGE BOLT,Hex, Serr, 3/8" - 16 x 1"
|
CAS
3/8-16 X 1 HFSS Superseded by part number: 9706726
|
| 7. |
704247
|
[2] |
NUT
|
CAS
3/8-16 HFSLN GR/F Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
|
| 8. |
700706287
|
[1] |
SUPPORT
|
HFI
(INCLUDES HARDWARE)
|
| 9. |
702035
|
[4] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd
|
CAS
3/8-16 X 1-1/4 C
|
| 10. |
231-4116
|
[4] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
