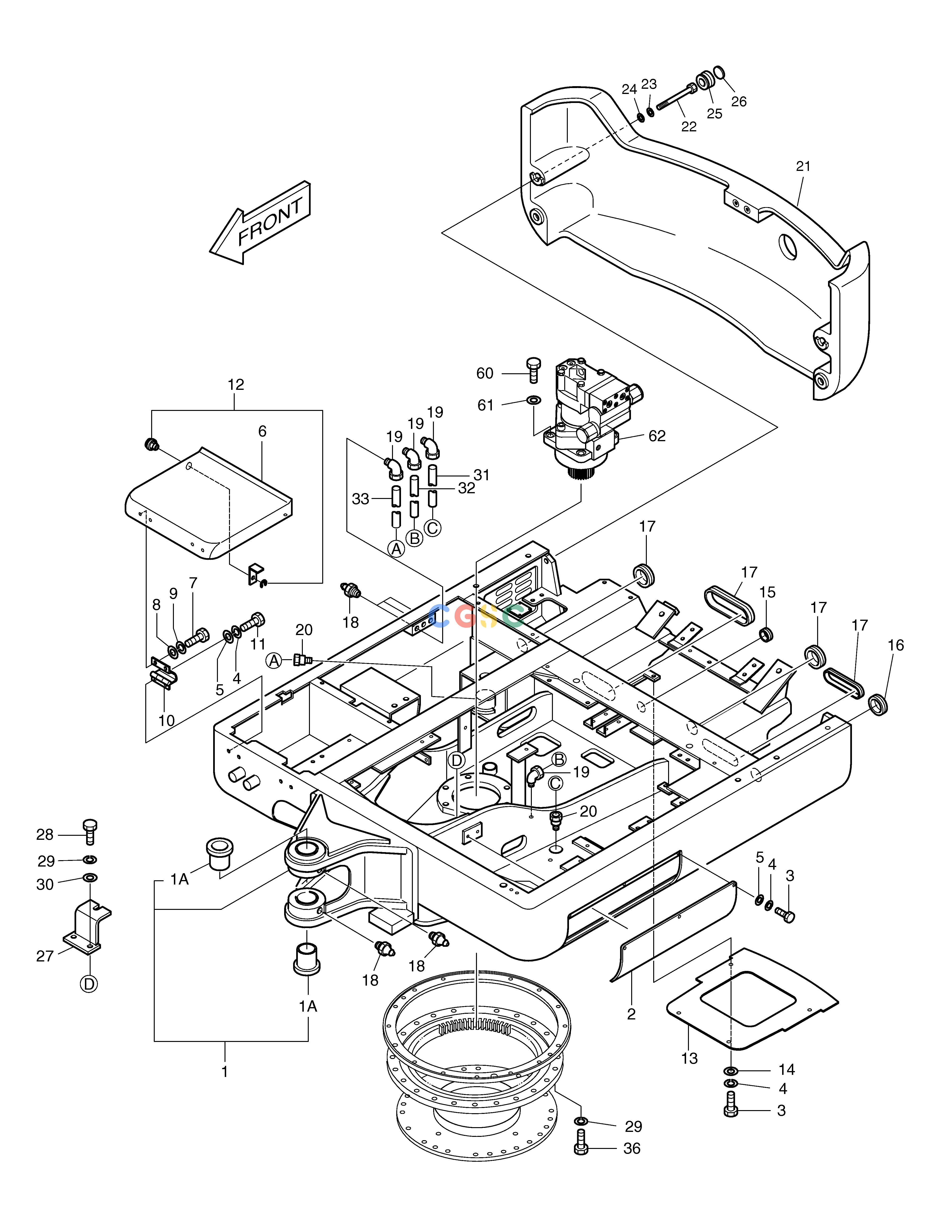

斗山零件查询FRAME SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
866 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
600-00087
|
[-] |
FRAME ASS'Y
|
|
| 1. |
603-00137K
|
[1] |
FRAME;MAIN
|
|
| 10. |
2171-1116
|
[2] |
HINGE
|
|
| 11. |
S0508653
|
[4] |
BOLT
|
|
| 12. |
2172-9033A
|
[1] |
KEY ASS'Y
|
|
| 13. |
2621-3250C
|
[1] |
COVER;UNDER
|
|
| 14. |
2114-1058D29
|
[4] |
WASHER
|
|
| 15. |
2161-2463
|
[1] |
BUSHING
|
|
| 16. |
2161-2462
|
[1] |
GROMMET
|
|
| 17. |
2161-1744
|
[4] |
RUBBER
|
|
| 18. |
S6710040
|
[5] |
NIPPLE;GREASE
|
|
| 19. |
2181-9098
|
[4] |
ELBOW
|
|
| 1A. |
110-00127
|
[2] |
BUSH
|
|
| 2. |
2191-3806C
|
[1] |
COVER
|
|
| 20. |
2181-1295A
|
[2] |
NIPPLE;CONNECTOR
|
|
| 21. |
624-00066B
|
[1] |
WIGHT;COUNTER
|
|
| 22. |
S0764661
|
[4] |
BOLT M14X1.5X140
|
|
| 23. |
S5102803
|
[4] |
WASHER
|
|
| 24. |
2114-1755
|
[4] |
WASHER
|
|
| 25. |
2161-2134
|
[2] |
HOUSING
|
|
| 26. |
6535-6001
|
[2] |
REFLECTOR
|
|
| 27. |
2197-1413B
|
[1] |
BRACKET
|
|
| 28. |
S0515253
|
[2] |
. BOLT
|
|
| 29. |
S5010713
|
[18] |
WASHER;PLAIN
|
|
| 3. |
S0508853
|
[10] |
. BOLT
|
|
| 30. |
S5102703
|
[2] |
WASHER
|
|
| 31. |
2185-1006D48
|
[1] |
TUBE;GREASE 4.54-1300
|
|
| 32. |
2185-1006D49
|
[1] |
TUBE;GREASE 4.54-950
|
|
| 33. |
2185-1006D47
|
[1] |
TUBE;GREASE 4.54-350
|
|
| 36. |
S0561161
|
[18] |
BOLT M12X1.75X70
|
|
| 4. |
S5102503
|
[14] |
. WASHER
|
|
| 5. |
S5010513
|
[10] |
WASHER
|
|
| 6. |
2621-3251G
|
[1] |
COVER;BATTERY
|
|
| 60. |
S2215761
|
[4] |
BOLT;SOCKET
|
|
| 61. |
S5102701
|
[4] |
WASHER;SPRING
|
|
| 62. |
2401-9217
|
[1] |
SWING MOTOR
|
|
| 7. |
S3640653
|
[4] |
SCREW
|
|
| 8. |
S5102303
|
[4] |
. WASHER
|
|
| 9. |
S5010313
|
[4] |
WASHER
|
|
