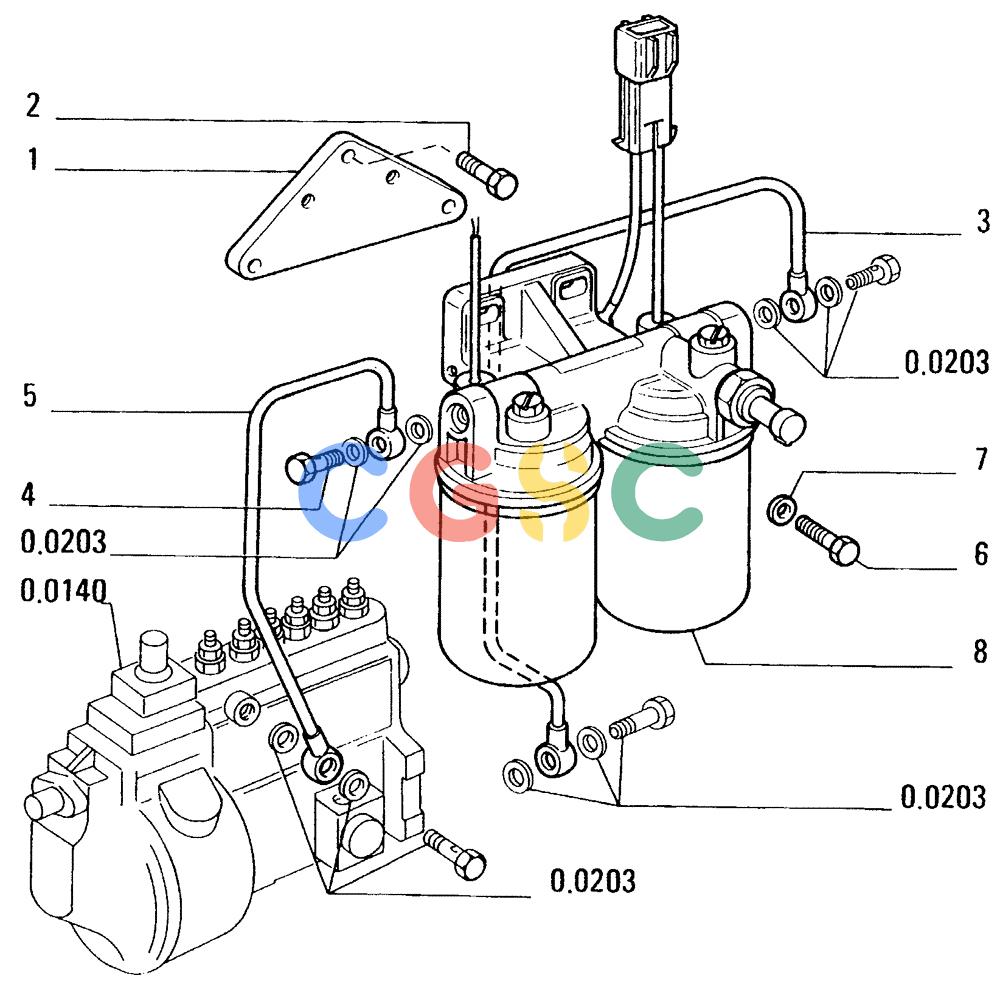

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[001]) - WINTERIZATION-FUEL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79102851 | [1] | PLATE | LEC |
| 2. | 15970931 | [1] | BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9 | LEC Superseded by part number: 15970934 |
| 3. | 79102852 | [1] | RIGID TUBE | LECTUBE |
| 4. | 10185111 | [1] | BANJO BOLT,M14 x 1.5 x 27mm | TORSCREW Superseded by part number: 10185114 |
| 5. | 79102854 | [1] | RIGID TUBE | LECTUBE |
| 6. | 11106431 | [2] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LECSCREW 10x1,5x30 Superseded by part number: 9515003 |
| 7. | 12626231 | [2] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 8. | 79102850 | [1] | FUEL FILTER | LEC- ASSEMBLY SEE TAV.2 Superseded by part number: 79111487 |
