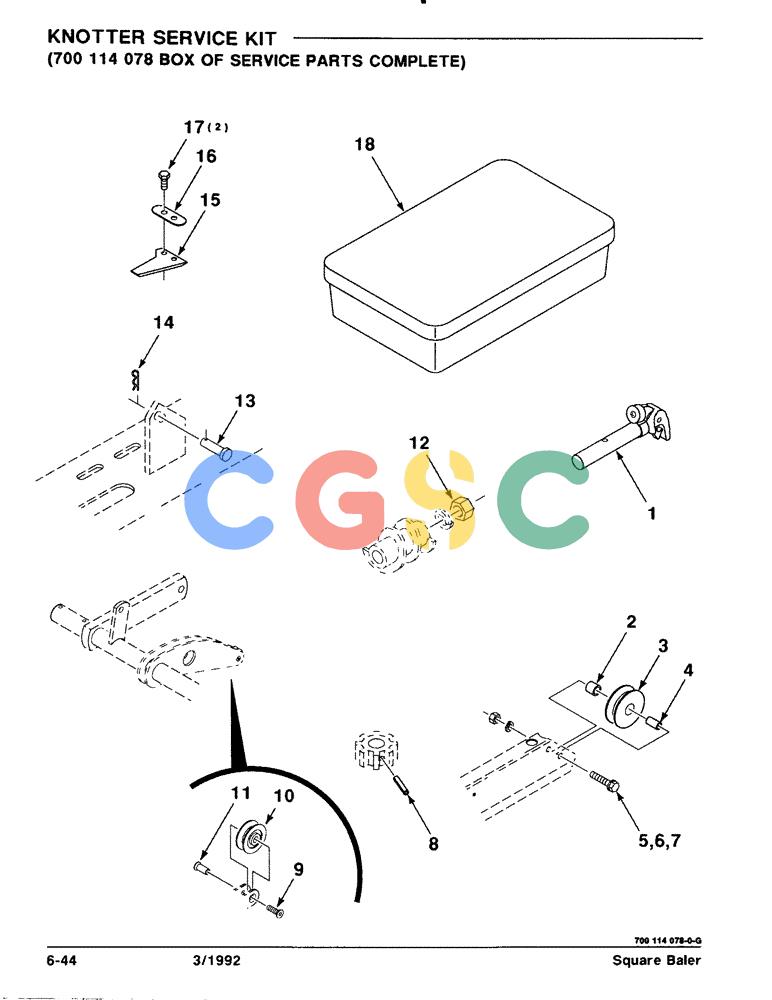

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (6-44) - KNOTTER SERVICE KIT, 700114078 BOX OF SERVICE PARTS COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
443 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700700968
|
[1] |
KNOTTER
|
CAS
BILL HOOK ASSEMBLY Superseded by part number: 700734489
|
| 2. |
7849656
|
[1] |
SLEEVE
|
CAS
- ROLLER
|
| 3. |
6529945
|
[1] |
ROLLER
|
CAS
|
| 4. |
7849110
|
[1] |
BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L
|
CAS
BUSHING - ROLLER
|
| 5. |
771345
|
[1] |
SCREW,Hex, #10 - 24 x 1"
|
CAS
#10-24 X 1 HWHMS Superseded by part number: 363-31016
|
| 6. |
705004
|
[1] |
LOCK WASHER
|
CAS
#10 L Superseded by part number: 80684
|
| 7. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
10-24H GR2
|
| 8. |
863761
|
[1] |
PIN, GROOVED
|
CAS
3/16 X 7/8 GROOVE PIN Superseded by part number: 435-7614
|
| 9. |
8701476
|
[1] |
HEX SOC SCREW,Flat Hd, CSK, #10 - 32 x 1/2"
|
CAS
#10-32 X 1/2 HSFCHCS Superseded by part number: 164-102
|
| 10. |
700707700
|
[1] |
BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm
|
CAS
BEARING - ROLLER Superseded by part number: 700737442
|
| 11. |
866566
|
[1] |
FASTENER,#10 - 32 x 9/16"
|
CAS
#10-32 FASTENER - SPECIAL
|
| 12. |
704304
|
[1] |
NUT
|
CAS
3/8-24 HEX NUT Superseded by part number: 86509310
|
| 13. |
063586
|
[1] |
CLEVIS PIN
|
IH
3/8 X 1-1/8 CLEVIS PIN Superseded by part number: 9838826
|
| 14. |
S120261
|
[1] |
PIN
|
CAS
.149 WIRE HAIRPIN COTTER
|
| 15. |
49783
|
[1] |
KNIFE
|
CAS
- TWINE Superseded by part number: 700718710
|
| 16. |
6613624
|
[1] |
WASHER, LOCK
|
CAS
LOCK - TAB
|
| 17. |
8701625
|
[2] |
SCREW,Hex, #10 - 32 x 1/2"
|
CAS
#10-32 X 1/2 HHMS Superseded by part number: 86637658
|
| 18. |
700707474
|
[1] |
BOX
|
CAS
- PLASTIC
|
