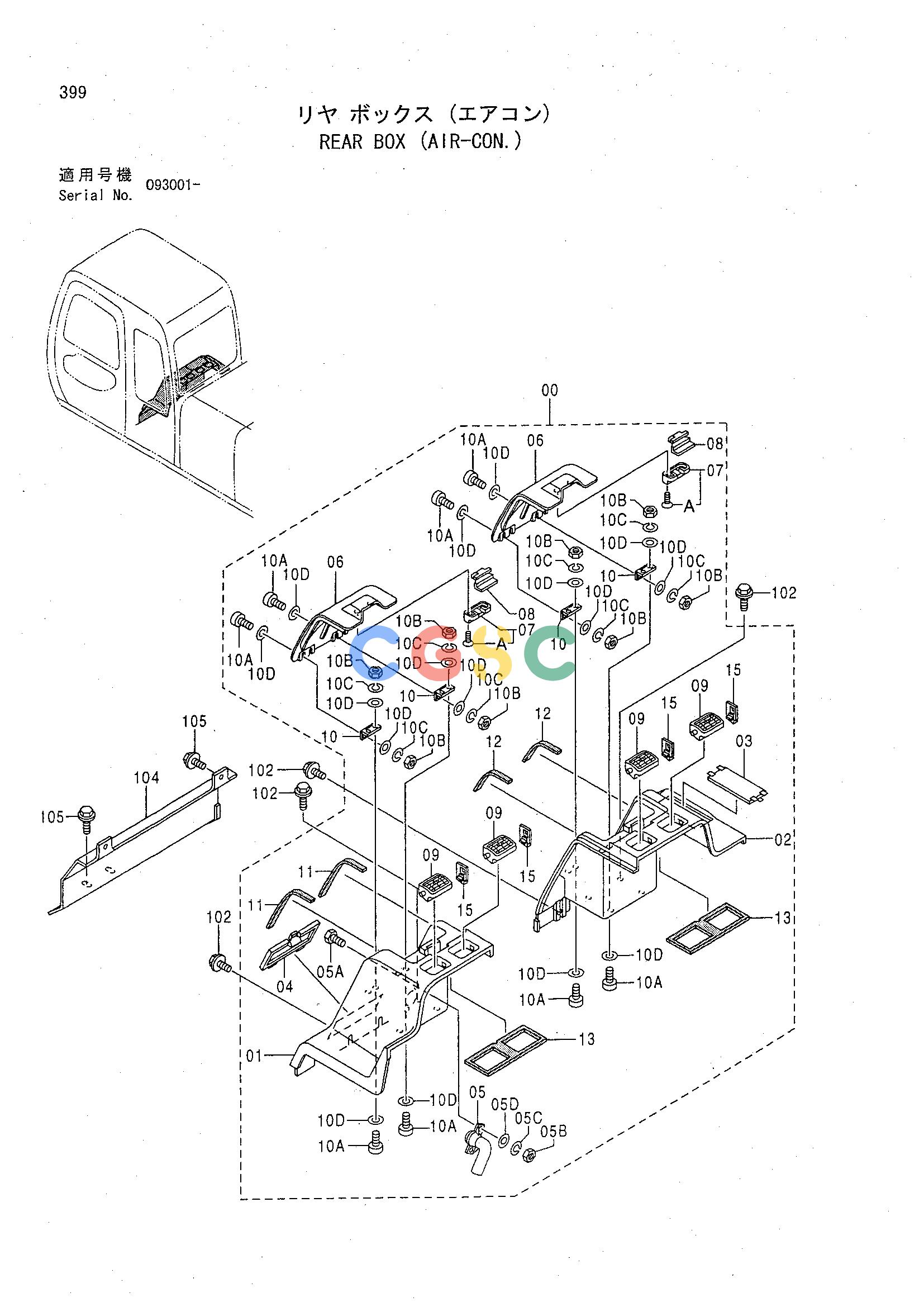

日立零件查询（CHR70）REAR BOX (AIR-CON.) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
360 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4346699 | [1] | BOX ASS'Y | |
| 01. | 4370823 | [1] | BOX | |
| 02. | 4370824 | [1] | BOX | |
| 03. | 4370825 | [1] | COVER | |
| 04. | 4370826 | [1] | COVER | |
| 05. | 4370827 | [1] | DUCT | |
| 05A. | 4370828 | [2] | BOLT | |
| 05B. | 4370829 | [2] | NUT | |
| 05C. | 4370830 | [2] | WASHER;SPRING | |
| 05D. | 4370831 | [1] | WASHER | |
| 06. | 4370832 | [2] | BOX | |
| 07. | 4370833 | [2] | COVER | |
| 07A. | 4370834 | [4] | SCREW | |
| 08. | 4370835 | [2] | LOCK | |
| 09. | 4370836 | [4] | LOUVER | |
| 10. | 4370837 | [4] | HINGE | |
| 10A. | 4370838 | [16] | SCREW | |
| 10B. | 4370839 | [16] | NUT | |
| 10C. | 4370840 | [16] | WASHER;SPRING | |
| 10D. | 4370841 | [32] | WASHER | |
| 11. | 4370842 | [2] | CUSHION | |
| 12. | 4370843 | [2] | CUSHION | |
| 13. | 4370844 | [2] | CUSHION | |
| 15. | 4370846 | [4] | COVER | |
| 102. | J050820 | [11] | BOLT;SEMS | |
| 102. | J780820 | [11] | BOLT;SOCKET | |
| 104. | 6014820 | [1] | COVER | |
| 105. | J020820 | [4] | BOLT;SEMS | |
| 105. | J260820 | [4] | BOLT;SEMS | TJ900820 |
| 105. | J260820 | [4] | BOLT;SEMS | TA590108 |
