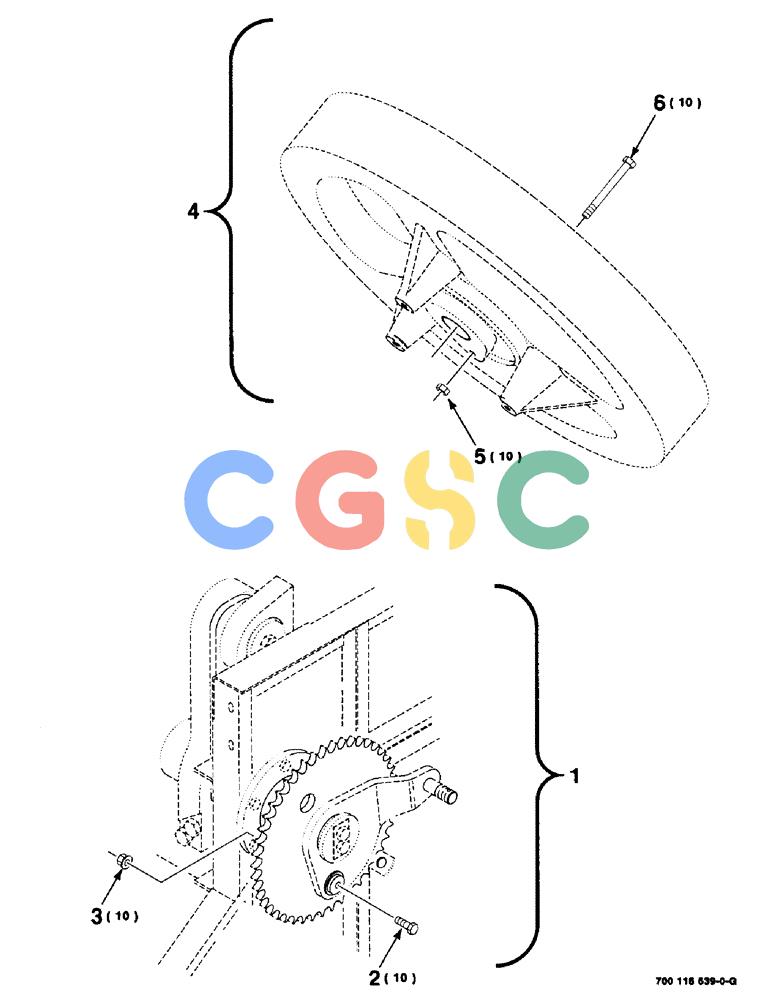

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (9-08) - SHEAR BOLT KITS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
347 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700116639
|
[1] |
KIT, SHEARBOLT, PAK
|
CAS
SACK OF BOLTS (Includes Ref: 2 & 3)
|
| 2. |
426-844
|
[10] |
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8
|
CAS
Superseded by part number: 86520614
|
| 3. |
231-5348
|
[10] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 4. |
700114059
|
[1] |
KIT
|
CAS
SACK OF BOLTS (Includes Ref: 5 & 6)
|
| 5. |
232-5316
|
[10] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 6. |
413-640
|
[10] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
