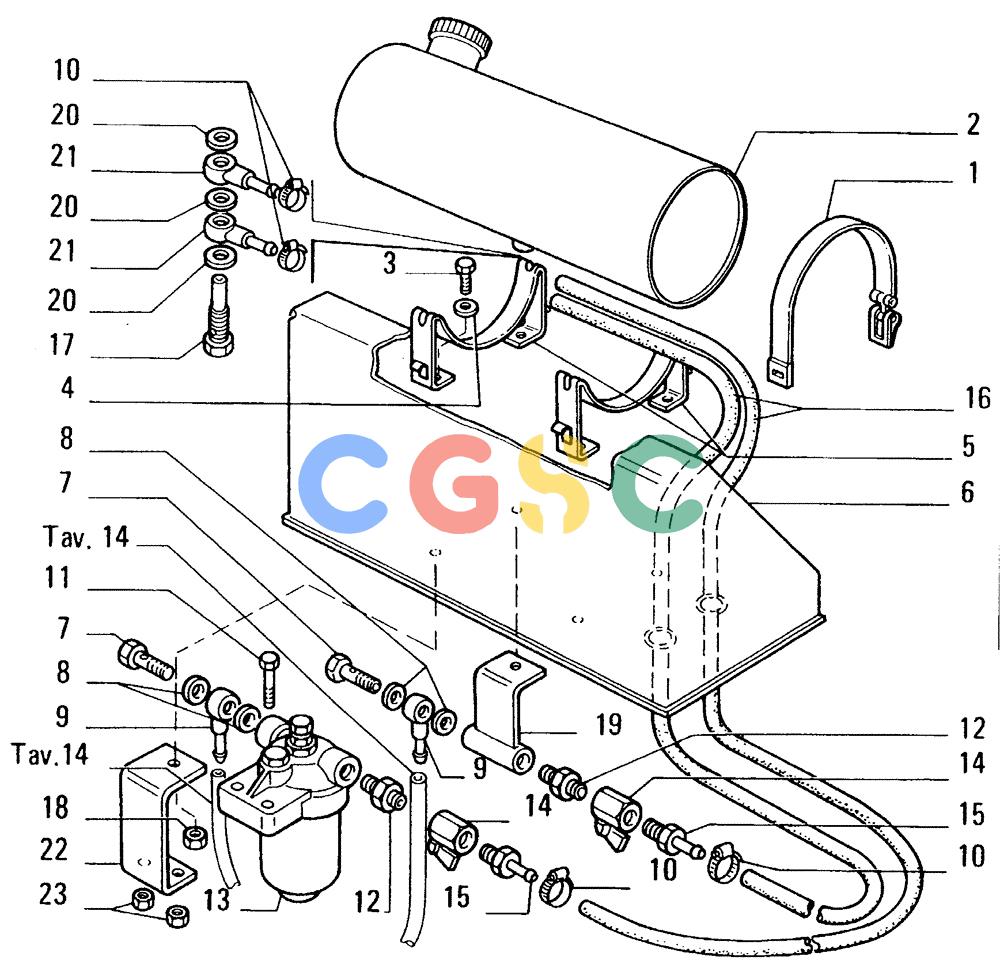

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[012]) - WINTERIZATION-FUEL TANK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
579 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79100039 | [2] | BELT | LEC |
| 2. | 79100037 | [1] | FUEL TANK | LEC Superseded by part number: 79108198 |
| 3. | 16044031 | [4] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 4. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 5. | 79100038 | [2] | SUPPORT | LEC |
| 6. | 79100024 | [1] | GUARD | LEC |
| 7. | 10184317 | [2] | BANJO BOLT,M14 x 1.5 x 27mm | BHBFITTING 14x1,5x27 Superseded by part number: 10184311 |
| 8. | 79035959 | [4] | SEAL | LECSEAL Superseded by part number: 44906168 |
| 9. | 79100029 | [2] | HYD CONNECTOR | LECFITTING |
| 10. | 79084752 | [4] | HOSE CLIP | LECCOLLAR Superseded by part number: 79084753 |
| 11. | 11106631 | [2] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 12. | 79100043 | [2] | HYD CONNECTOR | LECNIPPLE |
| 13. | 79100041 | [1] | FUEL FILTER | LEC- ASSEMBLY SEE TAV.13 |
| 14. | 79100063 | [2] | DRAINCOCK/TAP SUPPLY | LECCOCK |
| 15. | 79100031 | [2] | HYD CONNECTOR | LECFITTING |
| 16. | 79100084 | [2] | HOSE | LEC |
| 17. | 79100040 | [1] | SCREW | LEC |
| 18. | 16104121 | [2] | NUT,M8 x 1.25, Cl 10 | LECNUT, LOCK, M8 x 1.25, Cl 10 Superseded by part number: 17152821 |
| 19. | 79100034 | [1] | SUPPORT | LEC |
| 20. | 79086323 | [3] | SEAL,12.7mm ID x 18mm OD x 1.5mm Thk | LECSEAL |
| 21. | 79100027 | [2] | HYD CONNECTOR | LECFITTING |
| 22. | 79100033 | [1] | SUPPORT | LEC Superseded by part number: 79108210 |
| 23. | 12577221 | [2] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND | LECNUT 10x1,5x12,3 |
