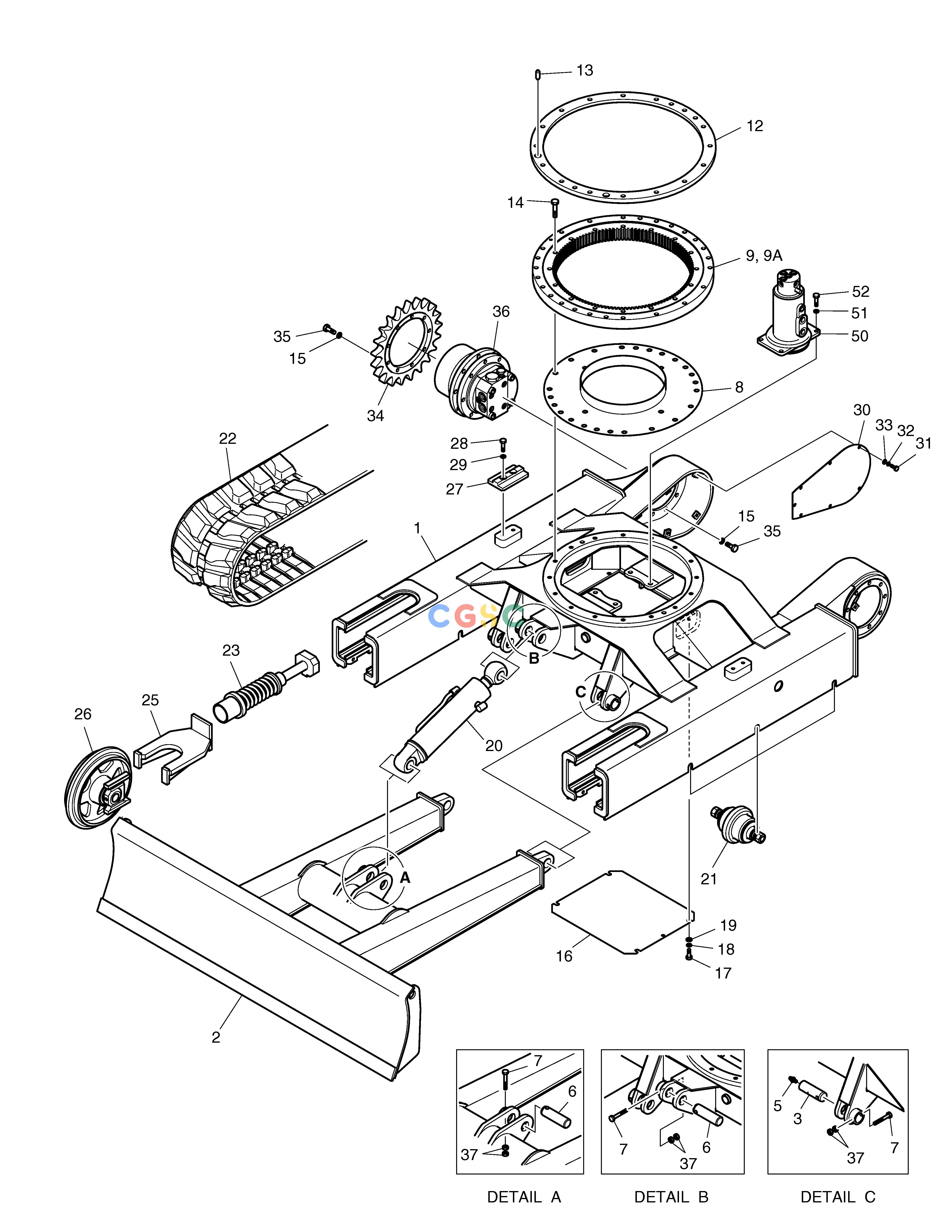

斗山零件查询TRACK(1) SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
600-00107A
|
[-] |
TRACK FRAME ASS'Y
|
|
| 1. |
604-00162B
|
[1] |
FRAME;TRACK
|
|
| 12. |
2412-1062A
|
[1] |
RING;TURNING
|
2412-1062B
|
| 12. |
2412-1062B
|
[1] |
RING;TURNING
|
|
| 13. |
2123-2132
|
[2] |
PIN;KNOCK
|
K1013936
|
| 13. |
K1013936
|
[2] |
PIN
|
|
| 14. |
S0560961
|
[16] |
BOLT M12X1.75X60
|
|
| 15. |
S5102703
|
[36] |
WASHER
|
|
| 16. |
2621-3333C
|
[1] |
COVER;SWIVEL
|
|
| 17. |
S0511853
|
[4] |
BOLT
|
|
| 18. |
S5102603
|
[4] |
. WASHER
|
|
| 19. |
S5010613
|
[4] |
WASHER
|
|
| 2. |
2608-1046J
|
[1] |
DOZER
|
|
| 20. |
2440-9301E
|
[1] |
CYLINDER;DOZER
|
|
| 21. |
270-00012B
|
[6] |
TRACK ROLLER ASS'Y
|
|
| 22. |
273-00003
|
[2] |
RUBBER CRAWLER ASS'Y
|
|
| 23. |
2440-9316B
|
[2] |
ADJUST CYLINDER ASS'Y
|
|
| 25. |
2157-1027C
|
[2] |
YORK
|
|
| 26. |
270-00011A
|
[2] |
FRONT IDLER ASS'Y
|
|
| 27. |
2627-1115A
|
[2] |
PLATE;SLIDE
|
|
| 28. |
S0512053
|
[4] |
BOLT
|
|
| 29. |
S5102603
|
[4] |
. WASHER
|
|
| 3. |
2123-2168C
|
[2] |
PIN(L.H)
|
|
| 30. |
2197-1291E
|
[2] |
COVER;MOTOR CASE
|
|
| 31. |
S0508853
|
[12] |
. BOLT
|
|
| 32. |
S5102503
|
[12] |
. WASHER
|
|
| 33. |
S5010513
|
[12] |
WASHER
|
|
| 34. |
108-00006A
|
[2] |
SPROCKET
|
|
| 35. |
S0515361
|
[36] |
BOLT M12X1.75X35
|
|
| 36. |
401-00265A
|
[2] |
TRAVEL DEVICE
|
|
| 37. |
S4012633
|
[8] |
NUT
|
|
| 5. |
S6710152
|
[2] |
NIPPLE;GREASE
|
|
| 50. |
2480-1016
|
[1] |
CENTER JOINT
|
|
| 51. |
S5102703
|
[4] |
WASHER
|
|
| 52. |
S0515253
|
[4] |
. BOLT
|
|
| 6. |
2123-2170B
|
[2] |
PIN
|
|
| 7. |
S0558953
|
[4] |
BOLT
|
|
| 8. |
2251-1002C
|
[1] |
BATH;GREASE
|
|
| 9. |
2109-9073B
|
[1] |
BEARING;SWING
|
|
| 9A. |
180-00297D2
|
[1] |
SEAL
|
|
