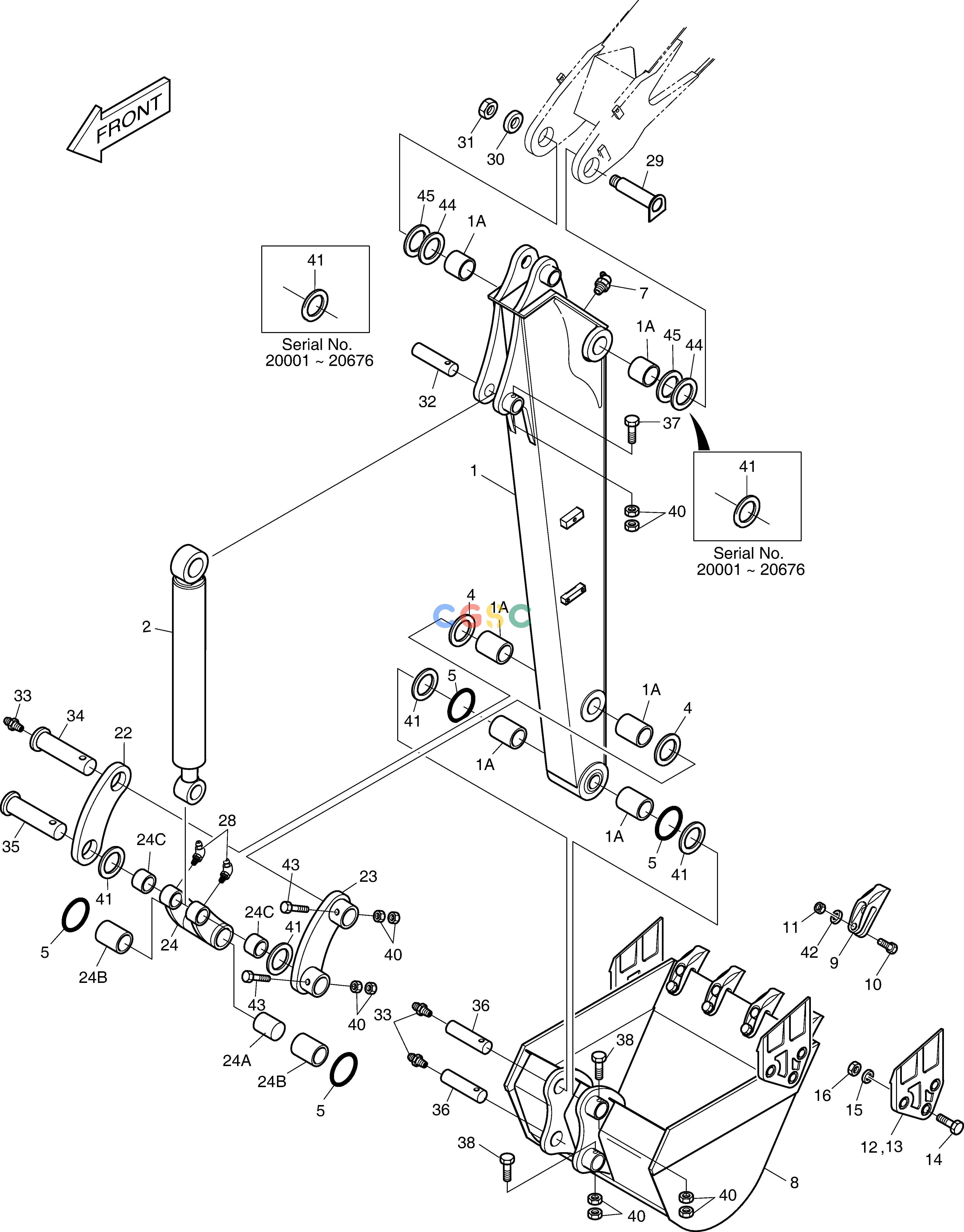

斗山零件查询ARM & BUCKET SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2700-1084A
|
[-] |
FRONT ASS'Y (2)
|
|
| 1. |
2701-1390J
|
[1] |
ARM ASS'Y
|
|
| 10. |
2120-2124
|
[8] |
BOLT
|
|
| 11. |
2121-1301
|
[8] |
NUT
|
|
| 12. |
2713-1206A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 13. |
2713-1207A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 14. |
S0515253
|
[6] |
. BOLT
|
|
| 15. |
S5102703
|
[6] |
WASHER
|
|
| 16. |
S4012733
|
[6] |
NUT
|
|
| 1A. |
2110-1312
|
[6] |
BUSH
|
|
| 2. |
2440-9299C
|
[1] |
CYLINDER;BUCKET
|
|
| 22. |
155-00037
|
[1] |
LINK;BUCKET(R.H)
|
|
| 23. |
155-00038
|
[1] |
LINK;BUCKET(L.H)
|
|
| 24. |
155-00039A
|
[1] |
DUMP LINK ASS'Y
|
|
| 24A. |
2114-1807
|
[1] |
COLLAR
|
|
| 24B. |
2110-1312A
|
[2] |
BUSH
|
|
| 24C. |
2110-1287A
|
[1] |
BUSH
|
|
| 28. |
S6710150
|
[2] |
NIPPLE;GREASE
|
|
| 29. |
2123-2167C
|
[1] |
PIN
|
|
| 30. |
2114-1058D60
|
[1] |
WASHER
|
|
| 31. |
2121-9017
|
[1] |
NUT;SELF LOCKING
|
|
| 32. |
2123-2165B
|
[1] |
PIN
|
|
| 33. |
S6710040
|
[5] |
NIPPLE;GREASE
|
|
| 34. |
2123-2112C
|
[1] |
PIN
|
|
| 35. |
2123-2117C
|
[1] |
PIN
|
|
| 36. |
2123-2166C
|
[2] |
PIN
|
|
| 37. |
S0558953
|
[1] |
BOLT
|
|
| 38. |
S0559153
|
[2] |
BOLT
|
|
| 4. |
2180-1106BD21
|
[2] |
SEAL;DUST
|
|
| 40. |
S4012633
|
[10] |
NUT
|
|
| 41. |
2114-1059D212
|
[8] |
SHIM
|
DS7701405
|
| 41. |
DS7701405
|
[12] |
SHIM
|
|
| 42. |
S5102901
|
[8] |
. WASHER;SPRING
|
|
| 43. |
S0559353
|
[2] |
BOLT M10X1.5X90
|
|
| 44. |
DS7701410
|
[2] |
SHIM
|
|
| 45. |
DS7701411
|
[2] |
SHIM
|
|
| 5. |
S8000651
|
[4] |
O-RING
|
|
| 7. |
S6710100
|
[1] |
NIPPLE;GREASE
|
|
| 8. |
2704-1359J
|
[1] |
BUCKET ASS'Y
|
2704-1359K
|
| 8. |
2704-1359K
|
[1] |
BUCKET ASS'Y
|
|
| 9. |
2713-1212A
|
[4] |
TOOTH
|
|
