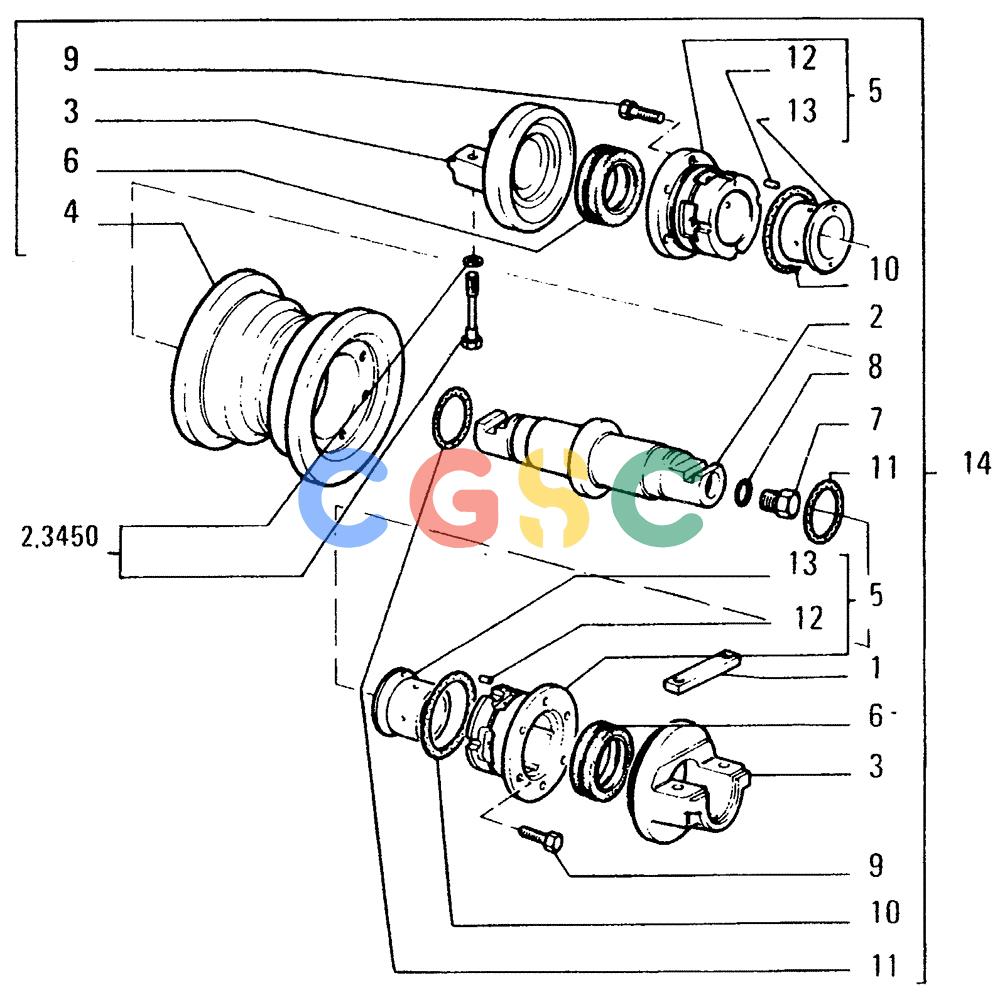

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[017]) - WINTERIZATION-TRACK ROLLERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
975 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76001768 | [2] | KEY | LEC |
| 2. | 76013221 | [1] | ROLLER SHAFT | LECPIN Superseded by part number: 79103259 |
| 3. | 76001770 | [2] | SUPPORT | LEC |
| 4. | 76004863 | [1] | TRACK ROLLER | LECWHEEL Superseded by part number: 76013223 |
| 5. | 76005867 | [2] | CASE | LEC- ASSEMBLY Superseded by part number: REFERENCE |
| 6. | 79044016 | [2] | O-RING | LECSEAL Superseded by part number: 76003974 |
| 7. | 79019318 | [1] | PLUG | LEC |
| 8. | 76016089 | [1] | O-RING | LEC0-RING |
| 9. | 14233730 | [12] | SCREW,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd | MOD10x1.25x35 Superseded by part number: 14233731 |
| 10. | 79044017 | [2] | O-RING | LEC0-RING |
| 11. | 79044018 | [2] | O-RING | LEC0-RING |
| 12. | 76003935 | [2] | DOWEL | LEC |
| 13. | 76005866 | [1] | BUSHING | LEC Superseded by part number: 79103256, 79103256, 79103259 |
| 14. | 76016085 | [8] | WHEEL | LEC- ASSEMBLY Superseded by part number: 79103891 |
