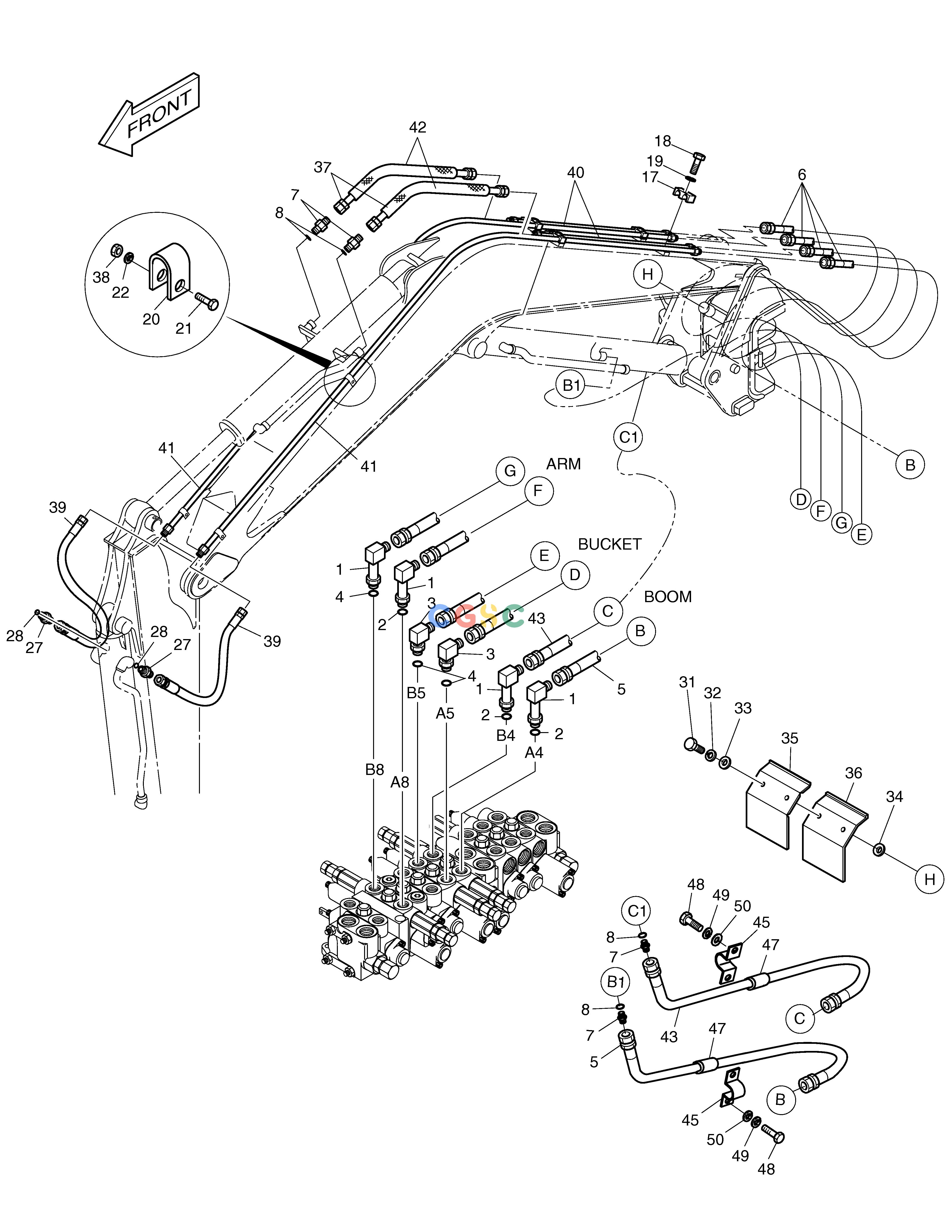

斗山零件查询FRONT PIPING SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-7088
|
[-] |
FRONT PIPING
|
|
| 1. |
2181-1702D5
|
[4] |
ELBOW
|
|
| 17. |
2124-1025D9
|
[4] |
CLAMP;PIPE
|
|
| 18. |
S0512053
|
[4] |
BOLT
|
|
| 19. |
S5102603
|
[4] |
. WASHER
|
|
| 2. |
S8000141
|
[3] |
O-RING
|
|
| 20. |
2124-1559
|
[4] |
CLAMP;PIPE
|
|
| 21. |
S0555953
|
[4] |
BOLT M8X1.25X30
|
|
| 22. |
S5102503
|
[4] |
. WASHER
|
|
| 27. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 28. |
S8000141
|
[2] |
O-RING
|
|
| 3. |
2181-1702D51
|
[2] |
ELBOW
|
|
| 31. |
S0511853
|
[2] |
BOLT
|
|
| 32. |
S5102603
|
[2] |
. WASHER
|
|
| 33. |
S5010613
|
[2] |
WASHER
|
|
| 34. |
2114-1058D10
|
[2] |
WASHER
|
|
| 35. |
2621-3487C
|
[1] |
COVER
|
|
| 36. |
2161-2135B
|
[1] |
PLATE;RUBBER
|
|
| 37. |
2184-1026D192
|
[2] |
HOSE PF3/8-820L
|
|
| 38. |
S4012533
|
[4] |
NUT
|
|
| 39. |
2184-1054D34
|
[2] |
HOSE 3/8-650L
|
|
| 4. |
S8000141
|
[3] |
O-RING
|
|
| 40. |
2193-1361A
|
[2] |
PIPE;ARM
|
|
| 41. |
2193-1362C
|
[2] |
PIPE;BUCKET(R.H)
|
|
| 42. |
2185-1623D3
|
[2] |
HOSE
|
|
| 43. |
2184-1026D362
|
[1] |
HOSE PF3/8-2300L
|
|
| 45. |
2124-1565
|
[2] |
CLAMP;HOSE
|
|
| 47. |
2161-2065
|
[2] |
PLATE;RUBBER
|
|
| 48. |
S0508853
|
[4] |
. BOLT
|
|
| 49. |
S5102503
|
[4] |
. WASHER
|
|
| 5. |
2184-1026D340
|
[1] |
HOSE 3/8-2500L
|
|
| 50. |
S5010513
|
[4] |
WASHER
|
|
| 6. |
2184-1026D363
|
[4] |
HOSE 3/8-2850L
|
|
| 7. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 8. |
S8000141
|
[4] |
O-RING
|
|
