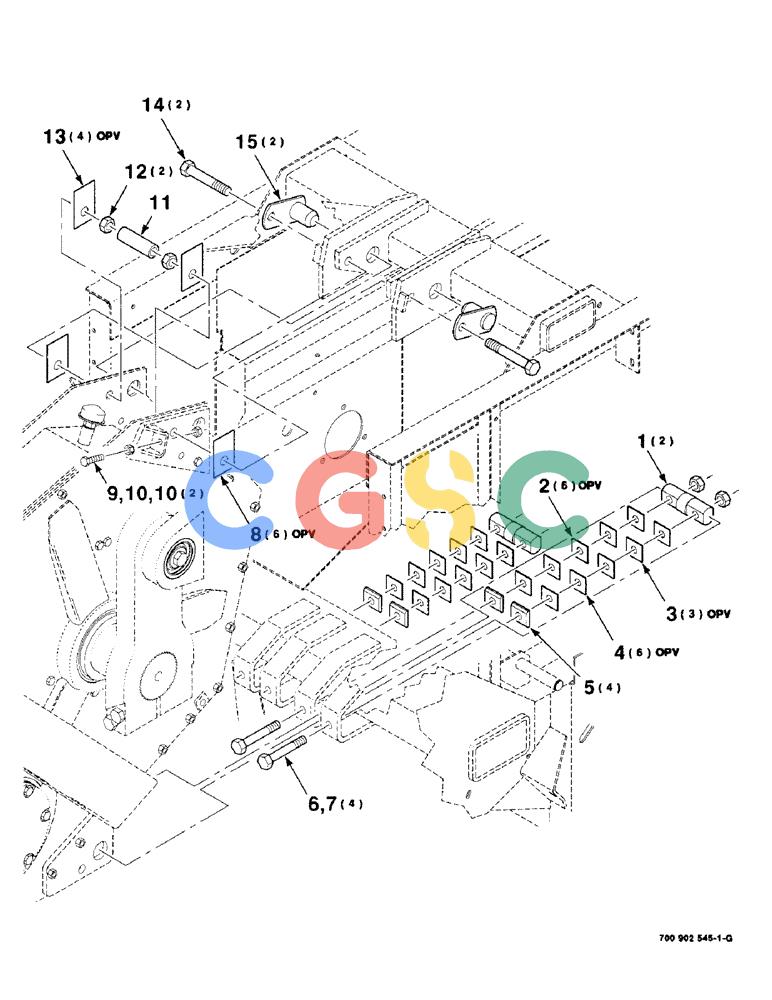

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (2-16) - GEARBOX MOUNTING ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123123
|
[2] |
PIN
|
CAS
-LOWER
|
| 2. |
700710399
|
[6] |
SHIM
|
CAS
-0.13/.005
|
| 3. |
700710398
|
[3] |
SHIM
|
CAS
-0.08/.003
|
| 4. |
700710401
|
[6] |
SHIM
|
CAS
-0.25/.010
|
| 5. |
700123124
|
[4] |
SPACER
|
CAS
|
| 6. |
413-1048
|
[4] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 7. |
232-41110
|
[4] |
NUT,5/8"-11, GC
|
CAS
NUT, LOCK, 5/8"-11, GC Superseded by part number: 85700693
|
| 8. |
700123485
|
[6] |
SHIM
|
CAS
|
| 9. |
113-420
|
[2] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd
|
CAS
|
| 10. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 11. |
700123129
|
[1] |
TUBE,16.93 mm ID, 31.75 mm OD, 110 mm Length
|
CAS
|
| 12. |
232-41112
|
[2] |
NUT,3/4"-10, GC
|
CAS
NUT, LOCK, 3/4"-10, GC Superseded by part number: 280375
|
| 13. |
700123486
|
[4] |
SHIM
|
CAS
|
| 14. |
326-1260
|
[2] |
BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8
|
CAS
|
| 15. |
700123126
|
[2] |
PIN
|
CAS
WA
|
