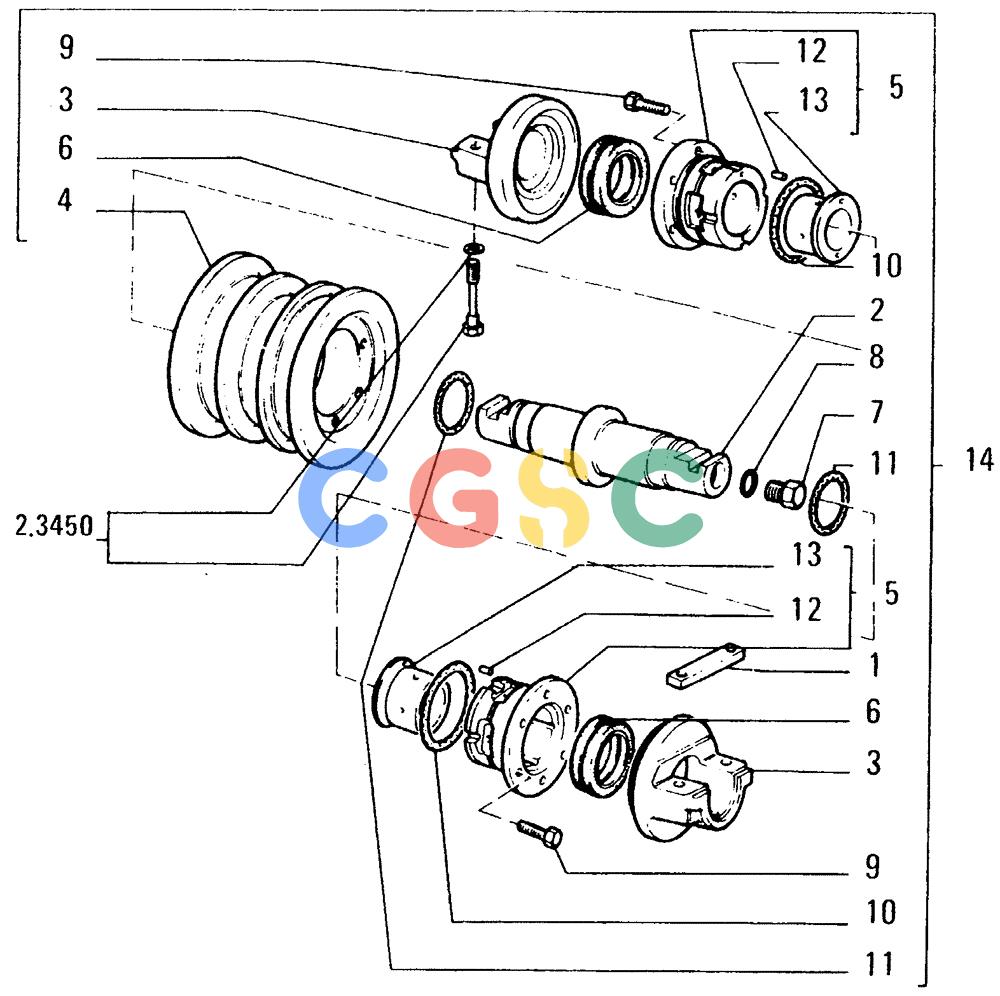

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6410[018A]) - WINTERIZATION-TRACK ROLLERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103264 | [2] | KEY | LEC |
| 2. | 79103259 | [1] | ROLLER SHAFT | LECSHAFT Superseded by part number: 76029450 |
| 3. | 76001770 | [2] | SUPPORT | LEC |
| 4. | 76004865 | [1] | TRACK ROLLER | LECWHEEL Superseded by part number: 76013222 |
| 5. | 79103256 | [2] | HOUSING | LECCASE - ASSEMBLY |
| 6. | 79104468 | [2] | GASKET | LECSEAL ASSY |
| 7. | 79019318 | [1] | PLUG | LEC |
| 8. | 79044017 | [2] | O-RING | LEC0-RING |
| 9. | 79044018 | [2] | O-RING | LEC0-RING |
| 10. | 14233730 | [12] | SCREW,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd | MOD10x1,25x35 Superseded by part number: 14233731 |
| 11. | 76016089 | [1] | O-RING | LEC0-RING |
| 12. | 79103263 | [1] | ROLL PIN | LECPIN |
| 13. | 79103257 | [1] | BUSHING | LEC |
| 14. | 79103892 | [4] | TRACK ROLLER | LECWHEEL - ASSEMBLY Superseded by part number: 76029638, 76029467 |
