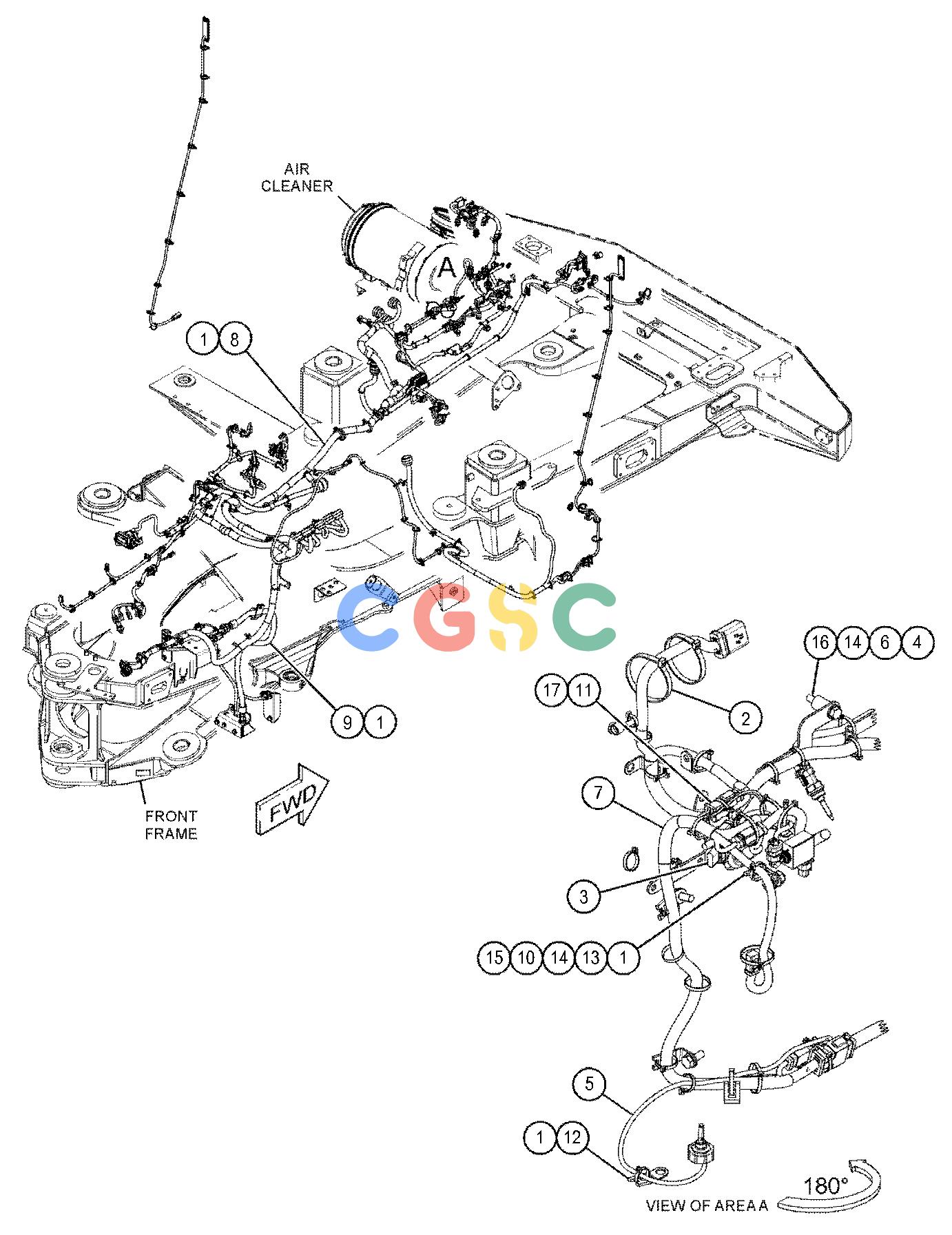

卡特零件查询（725C2） 470-4409: WIRING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
150 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [12] | STRAP-CABLE | |
| 2. | 7K-1181 | [3] | STRAP-CABLE | |
| 3. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 4. | 217-5449 | [1] | SPACER(11X20X30-MM THK) | |
| 5. | 382-2001 | [1] | SENSOR GP-LIQUID LEVEL(WATER IN FUEL) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 9X-3401 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 6. | 446-6322 | [1] | PLATE | |
| 7. | 446-9234Y | [1] | HARNESS AS-SENSOR(FUEL FILTER) | |
| 8. | 453-8815Y | [1] | HARNESS AS-FRONT CHASSIS | |
| 9. | 470-4415Y | [1] | WIRING GP-FRONT | |
| 10. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 11. | 355-3148 | [1] | SWITCH AS-PRESSURE(HIGH, LOW)(AIR CONDITIONER) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 12. | 4P-7428 | [1] | CLIP(LADDER) | |
| 13. | 4P-8134 | [1] | CLIP(LADDER) | |
| 14. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 16. | 8T-4185M | [1] | BOLT(M10X1.5X50-MM) | |
| 17. | 9X-7378 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
