斗山零件查询CENTER JOINT SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
636 次

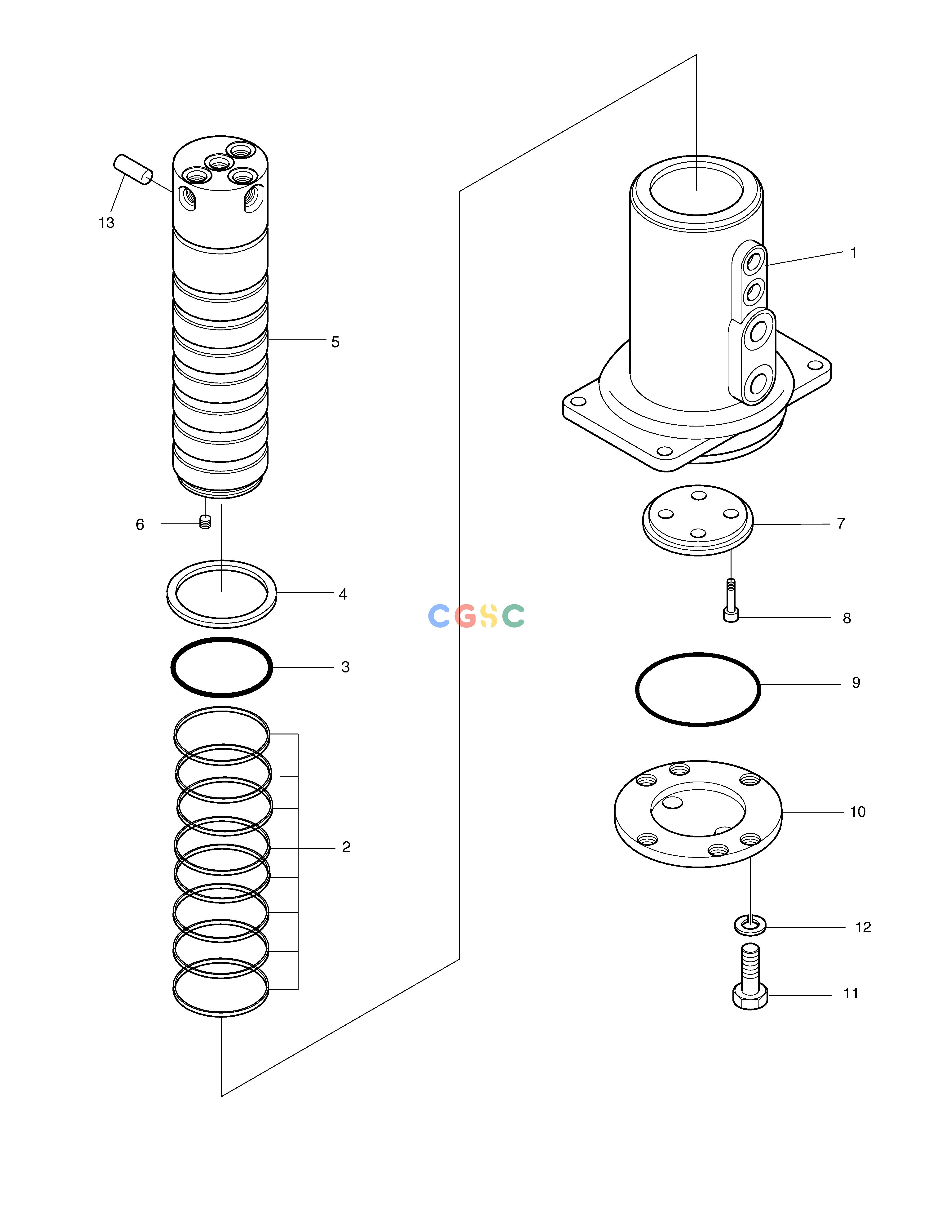

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2480-9001K
|
[1] |
SEAL KIT;CENTER JOINT
|
|
| -. |
2480-1016
|
[1] |
CENTER JOINT
|
|
| 1. |
53C260-0
|
[1] |
BODY
|
|
| 10. |
53C263-0
|
[1] |
COVER
|
|
| 11. |
E0020370
|
[6] |
BOLT
|
|
| 12. |
E3110092
|
[6] |
WASHER;SPRING
|
|
| 13. |
53C264-0
|
[1] |
PIN
|
|
| 2. |
E5690014
|
[8] |
SEAL;SLIPPER
|
|
| 3. |
E6301441
|
[1] |
O-RING P80
|
|
| 4. |
E6000840
|
[1] |
WIPER;DUST
|
|
| 5. |
53C261-0
|
[1] |
SPINDLE
|
|
| 6. |
E1500020
|
[4] |
PLUG;SOCKET
|
|
| 7. |
53C262-0
|
[1] |
PLATE;THRUST
|
|
| 8. |
E0501136
|
[4] |
BOLT;HEX SOCKET
|
|
| 9. |
E6311521
|
[1] |
O-RING
|
|
