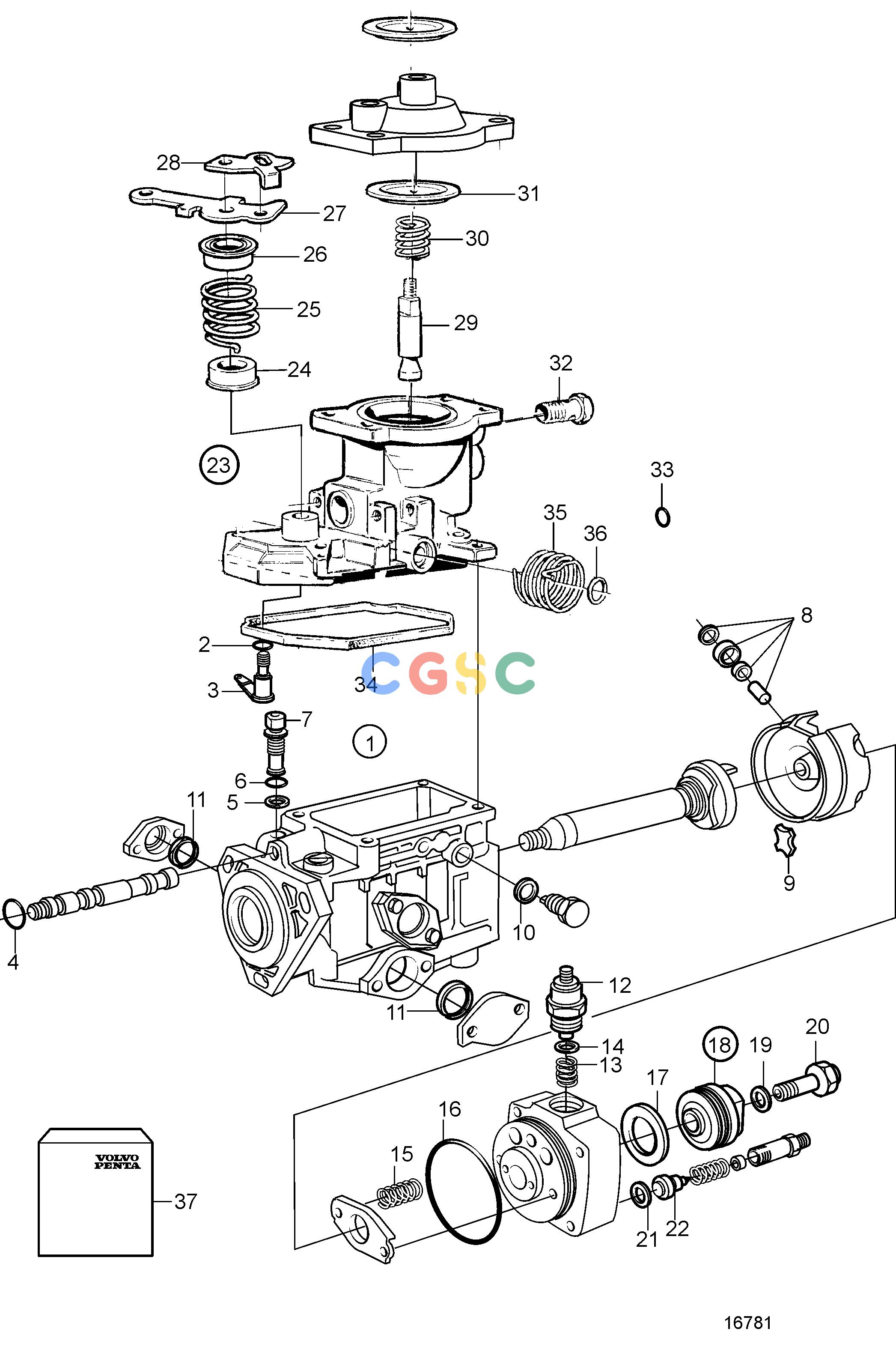

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BFuel SystemFuel Injection Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861102
|
[1] |
Injection pump
|
|
| 2. |
243567
|
[1] |
Sealing ring
|
Included in gasket kit.
|
| 3. |
244959
|
[1] |
Shaft
|
|
| 4. |
243786
|
[1] |
O-ring
|
Included in gasket kit.
|
| 5. |
861520
|
[1] |
O-ring
|
Included in gasket kit.
|
| 6. |
243520
|
[1] |
Sealing ring
|
Included in gasket kit.
|
| 7. |
844179
|
[1] |
Valve
|
|
| 8. |
|
|
|
|
| 9. |
844150
|
[2] |
Absorber
|
Included in gasket kit.
|
| 10. |
|
|
|
Included in gasket kit.
|
| 11. |
838445
|
[1] |
O-ring
|
Included in gasket kit.
|
| 12. |
876614
|
[1] |
Stop solenoid
|
12V
|
| 13. |
861208
|
[1] |
Spring
|
|
| 14. |
|
|
|
Included in gasket kit.
|
| 15. |
859482
|
[1] |
Compression spring
|
|
| 16. |
243555
|
[1] |
Sealing ring
|
Included in gasket kit
|
| 17. |
838402
|
[1] |
O-ring
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
845738
|
[6] |
Washer
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
244967
|
[1] |
Spring
|
|
| 26. |
244972
|
[1] |
Spring disc
|
|
| 27. |
244961
|
[1] |
Lever
|
TH=1,80mm
|
| 28. |
244969
|
[1] |
Lever
|
TH=1,95mm
|
| 29. |
|
|
|
TH=2.00mm
|
| 30. |
|
|
|
TH=2,12mm
|
| 31. |
244944
|
[1] |
Diaphragm
|
TH=2.20mm
|
| 32. |
861514
|
[1] |
Hollow screw
|
TH=2,32mm
|
| 33. |
244963
|
[1] |
Shim
|
Included in gasket kit., TH=2.40mm
|
| 34. |
|
|
|
TH=2.50mm
|
| 35. |
859463
|
[1] |
Spring
|
TH=2,52mm
|
| 36. |
844224
|
[1] |
O-ring
|
Included in gasket kit., TH=2.80mm
|
| 37. |
844240
|
[1] |
Gasket kit
|
|
