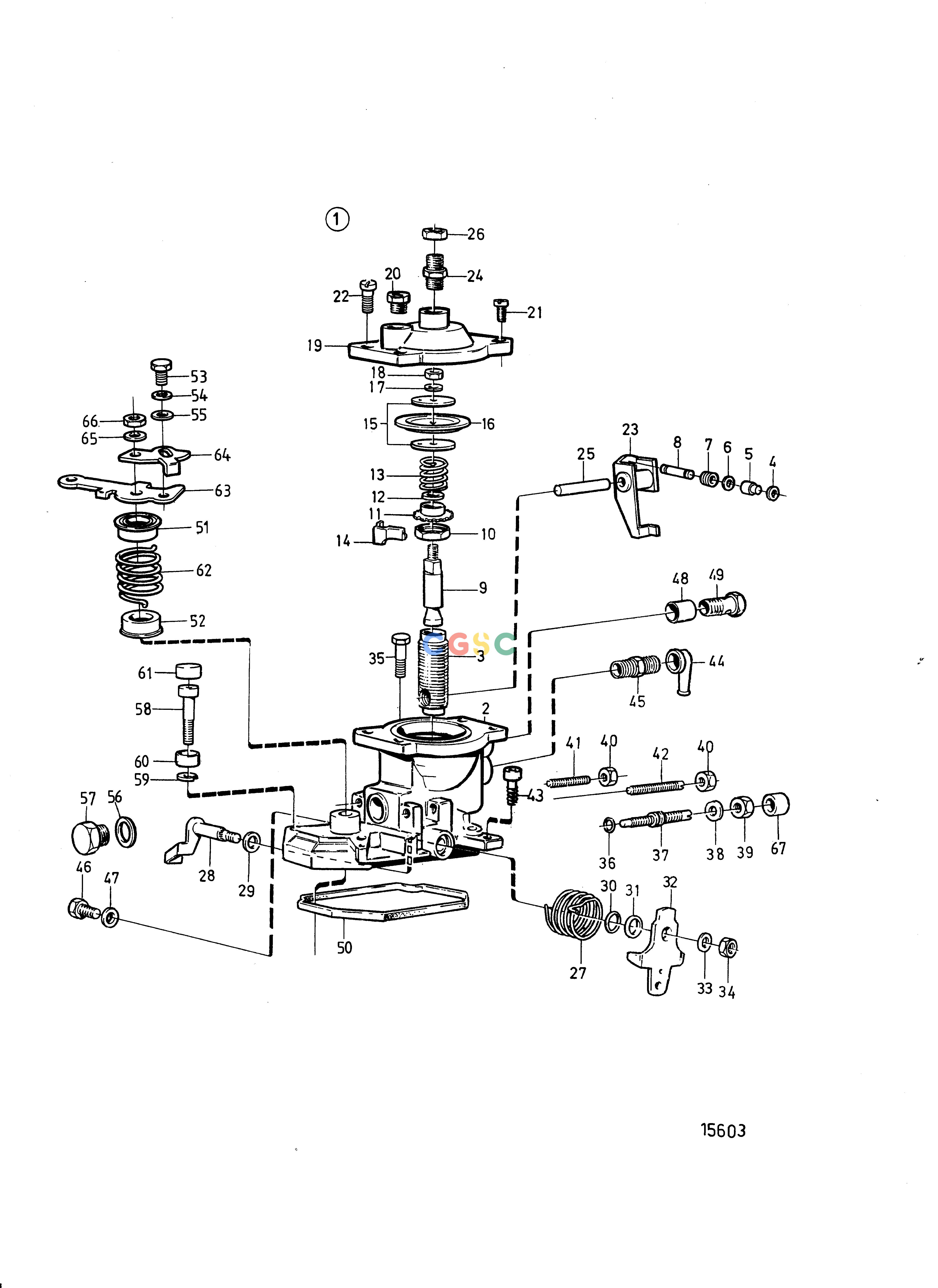

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BFuel SystemRegulatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
630 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
244935
|
[1] |
Bearing bushing
|
|
| 4. |
|
|
|
|
| 5. |
244934
|
[1] |
Bearing bushing
|
|
| 6. |
244417
|
[1] |
O-ring
|
|
| 7. |
1698691
|
[1] |
Washer
|
(244933)
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
6213509
|
[1] |
Nut
|
|
| 11. |
|
|
|
|
| 12. |
244948
|
[1] |
Bushing
|
TH=1,70mm
|
| 12. |
244949
|
[1] |
Bushing
|
TH=2.50mm
|
| 12. |
244950
|
[1] |
Bushing
|
TH=3.50mm
|
| 12. |
244951
|
[1] |
Bushing
|
TH=4,50mm
|
| 13. |
859282
|
[1] |
Compression spring
|
|
| 14. |
244936
|
[1] |
Striker plate
|
|
| 15. |
|
|
|
|
| 16. |
244944
|
[1] |
Diaphragm
|
|
| 17. |
949607
|
[1] |
Spring washer
|
|
| 18. |
244945
|
[1] |
Nut
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
956092
|
[2] |
Cross recessed screw
|
|
| 22. |
244955
|
[2] |
Screw
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 26. |
244954
|
[1] |
Nut
|
|
| 27. |
859463
|
[1] |
Spring
|
|
| 28. |
844222
|
[1] |
Shaft
|
|
| 29. |
844220
|
[1] |
Washer
|
|
| 30. |
844224
|
[1] |
O-ring
|
Included in gasket kit.
|
| 31. |
244938
|
[1] |
Gasket
|
|
| 32. |
844226
|
[1] |
Lever
|
|
| 33. |
949607
|
[1] |
Spring washer
|
|
| 34. |
955781
|
[1] |
Hexagon nut
|
|
| 35. |
959208
|
[4] |
Hex. socket screw
|
|
| 36. |
244963
|
[1] |
Shim
|
Included in gasket kit.
|
| 37. |
244962
|
[1] |
Screw
|
|
| 38. |
|
|
|
|
| 39. |
|
|
|
|
| 40. |
955781
|
[2] |
Hexagon nut
|
|
| 41. |
|
|
|
|
| 42. |
|
|
|
|
| 43. |
959208
|
[1] |
Hex. socket screw
|
|
| 44. |
|
|
|
|
| 45. |
244973
|
[1] |
Screw
|
|
| 46. |
|
|
|
|
| 47. |
190990
|
[2] |
Gasket
|
|
| 48. |
844236
|
[1] |
Sleeve
|
|
| 49. |
861514
|
[1] |
Hollow screw
|
|
| 50. |
|
|
|
|
| 51. |
244972
|
[1] |
Spring disc
|
|
| 52. |
|
|
|
|
| 53. |
244970
|
[1] |
Screw
|
|
| 54. |
949607
|
[1] |
Spring washer
|
|
| 55. |
955892
|
[1] |
Washer
|
|
| 56. |
|
|
|
|
| 57. |
|
|
|
|
| 58. |
959208
|
[1] |
Hex. socket screw
|
|
| 59. |
843166
|
[1] |
Washer
|
|
| 60. |
|
|
|
|
| 61. |
|
|
|
|
| 62. |
244967
|
[1] |
Spring
|
|
| 63. |
244961
|
[1] |
Lever
|
|
| 64. |
244969
|
[1] |
Lever
|
|
| 65. |
949607
|
[1] |
Spring washer
|
(838340)
|
| 66. |
940197
|
[1] |
Hexagon nut
|
|
| 67. |
844652
|
[1] |
Spacer sleeve
|
|
