斗山零件查询SPARE PARTS SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
565 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

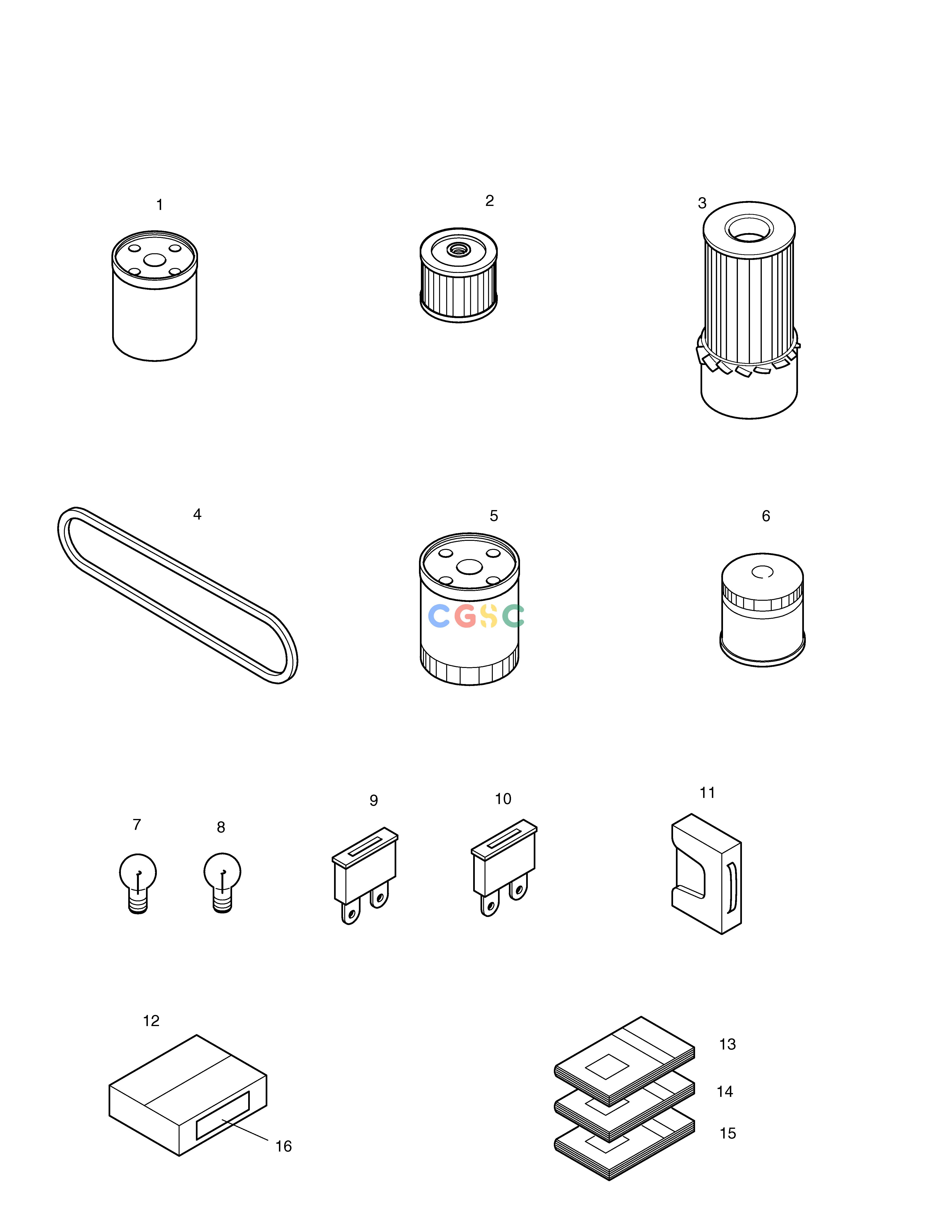

918-00124A
|
[-] |
SPARE PARTS
|
|
| 1. |
562-03400
|
[1] |
ELEMENT;LINE FILTER
|
|
| 10. |
2527-1016
|
[2] |
FUSE,BLADE 10A
|
|
| 11. |
2527-1027
|
[1] |
FUSIBLE LINK
|
|
| 12. |
2512-9007
|
[1] |
BOX;SPARE
|
|
| 13. |
021-00063EF
|
[1] |
PART LIST
|
|
| 14. |
022-00056E
|
[1] |
OPERATION MANUAL
|
|
| 15. |
023-00077E
|
[1] |
MAINTENANCE MANUAL
|
|
| 16. |
190-00530B
|
[1] |
LABEL
|
|
| 16. |
190-00530C
|
[1] |
LABEL
|
|
| 2. |
471-00052
|
[1] |
FILTER;SUCTION
|
|
| 3. |
897076-3960
|
[1] |
ELEMENT KIT
|
|
| 3. |
K1030381
|
[1] |
FILTER;AIRCLEANER
|
|
| 4. |
2106-1021D23
|
[1] |
BELT;COOLING FAN L=836
|
|
| 4. |
DS3202026
|
[1] |
BELT;FAN
|
|
| 5. |
894132-9471
|
[1] |
CARTRIDGE;FUEL FILTER
|
|
| 5. |
K1030379
|
[1] |
ELEMENT;FUEL FILTER
|
|
| 6. |
894456-7411
|
[1] |
FILTER;OIL CARTRIDGE
|
|
| 6. |
K1030380
|
[1] |
CARTRIDGE;E/G OIL
|
|
| 7. |
2515-1016D2
|
[1] |
BULB
|
|
| 8. |
515-00001
|
[2] |
BULB 12V 1.2W
|
|
| 9. |
2527-1017
|
[2] |
FUSE,BLADE 15A
|
|
