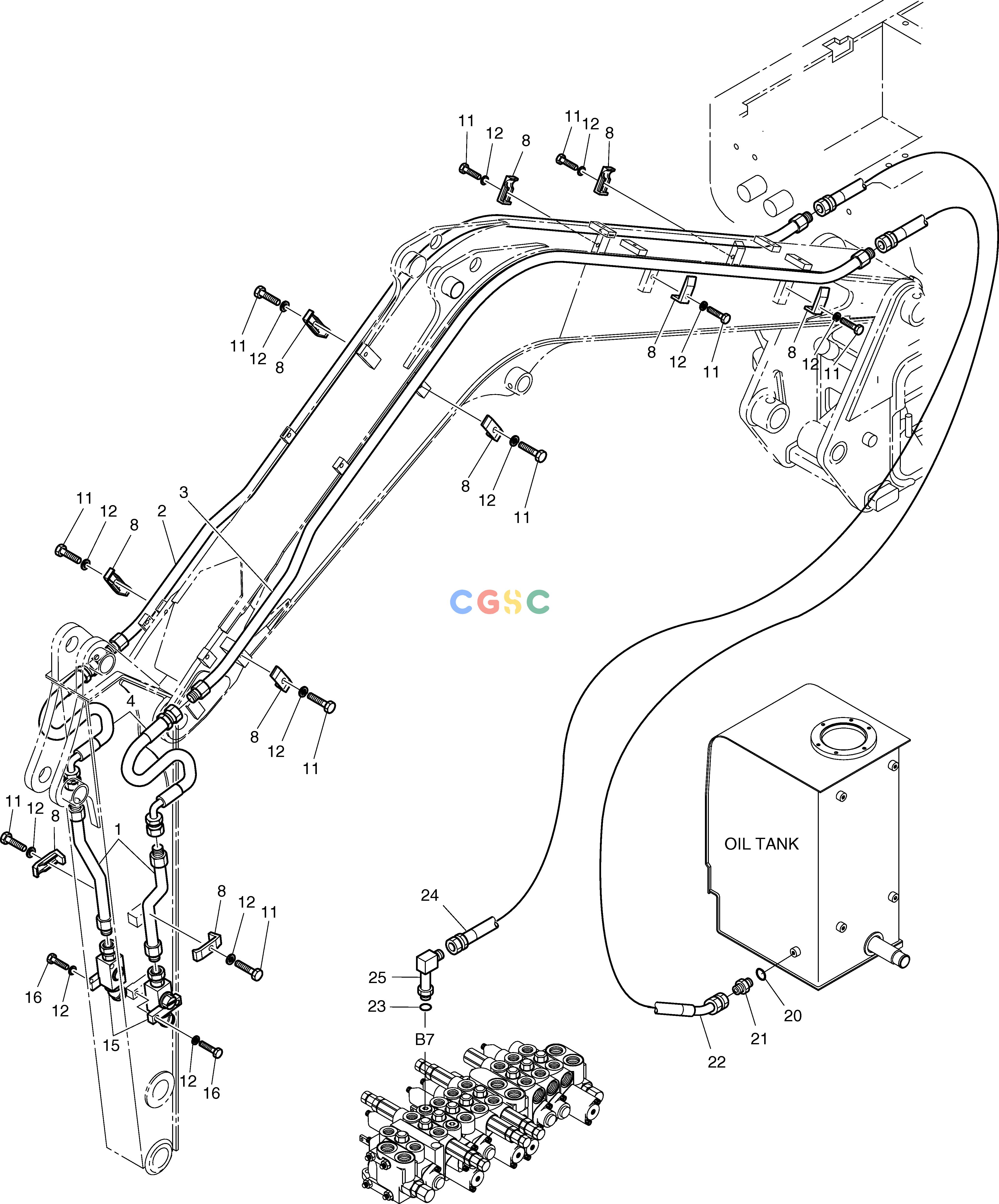

斗山零件查询BREAKER PIPING - ONE WAY SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1927A
|
[-] |
BREAKER PIPING-ONE WAY
|
|
| 1. |
2182-1757B
|
[2] |
PIPE
|
|
| 11. |
S0558453
|
[10] |
BOLT
|
|
| 12. |
S5102603
|
[14] |
. WASHER
|
|
| 15. |
2420-9612B
|
[2] |
STOP VALVE ASS'Y
|
|
| 16. |
S0558753
|
[4] |
BOLT M10X1.5X60
|
|
| 2. |
2182-1700C
|
[1] |
PIPE
|
|
| 20. |
S8000181
|
[1] |
O-RING
|
|
| 21. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 22. |
2184-1060D102
|
[1] |
HOSE PF1/2-2000L
|
|
| 23. |
2181-1702D35
|
[1] |
ELBOW
|
|
| 24. |
2184-1026D299
|
[1] |
HOSE PF1/2-3000L
|
|
| 25. |
S8000141
|
[1] |
O-RING
|
|
| 3. |
2182-1701C
|
[1] |
PIPE
|
|
| 4. |
2184-1071D57
|
[2] |
HOSE PF1/2-660L
|
|
| 8. |
2124-1026D1
|
[10] |
CLAMP;PIPE
|
|
