斗山零件查询CABIN MOUNTING SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

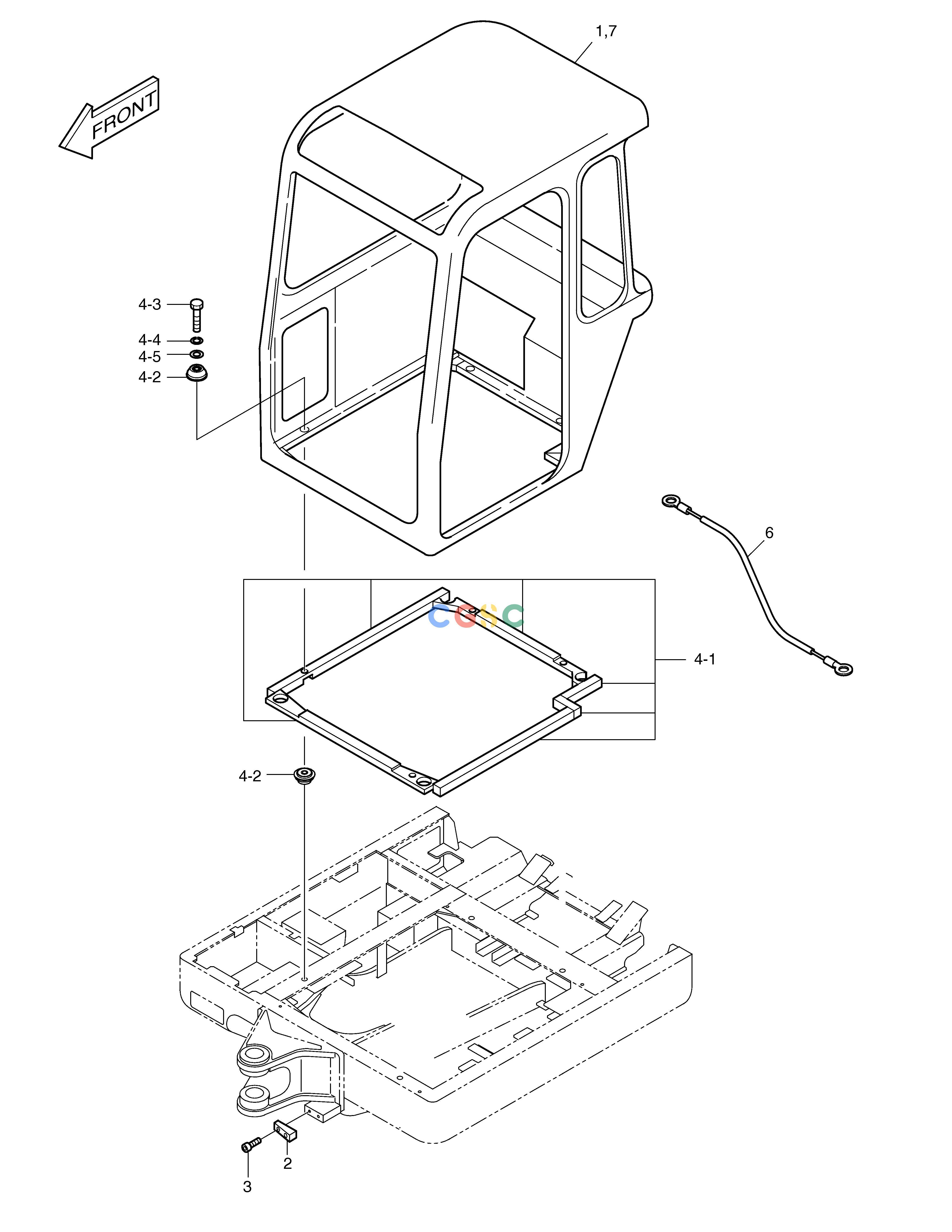

622-00228
|
[-] |
CABIN MOUNTING
|
|
| 1. |
622-00311A
|
[1] |
CABIN ASS'Y
|
|
| 2. |
2128-1207
|
[1] |
STOPPER;SWING
|
|
| 3. |
S2212053
|
[2] |
BOLT;SOCKET M10X1.5X25
|
|
| 4. |
2622-1447A
|
[1] |
CABIN ASS'Y
|
|
| 4-1. |
2161-2244A
|
[1] |
ABSORBER;RUBBER
|
|
| 4-2. |
854-10004
|
[8] |
RUBBER;MOUNTING
|
|
| 4-3. |
S0561553
|
[4] |
BOLT M12X1.75X90
|
|
| 4-4. |
S5102703
|
[4] |
WASHER
|
|
| 4-5. |
2114-1058D85
|
[4] |
WASHER
|
|
| 6. |
2530-1659
|
[1] |
HARNESS
|
|
| 7. |
622-00322
|
[1] |
CABIN ASS'Y(TOPS)
|
|
