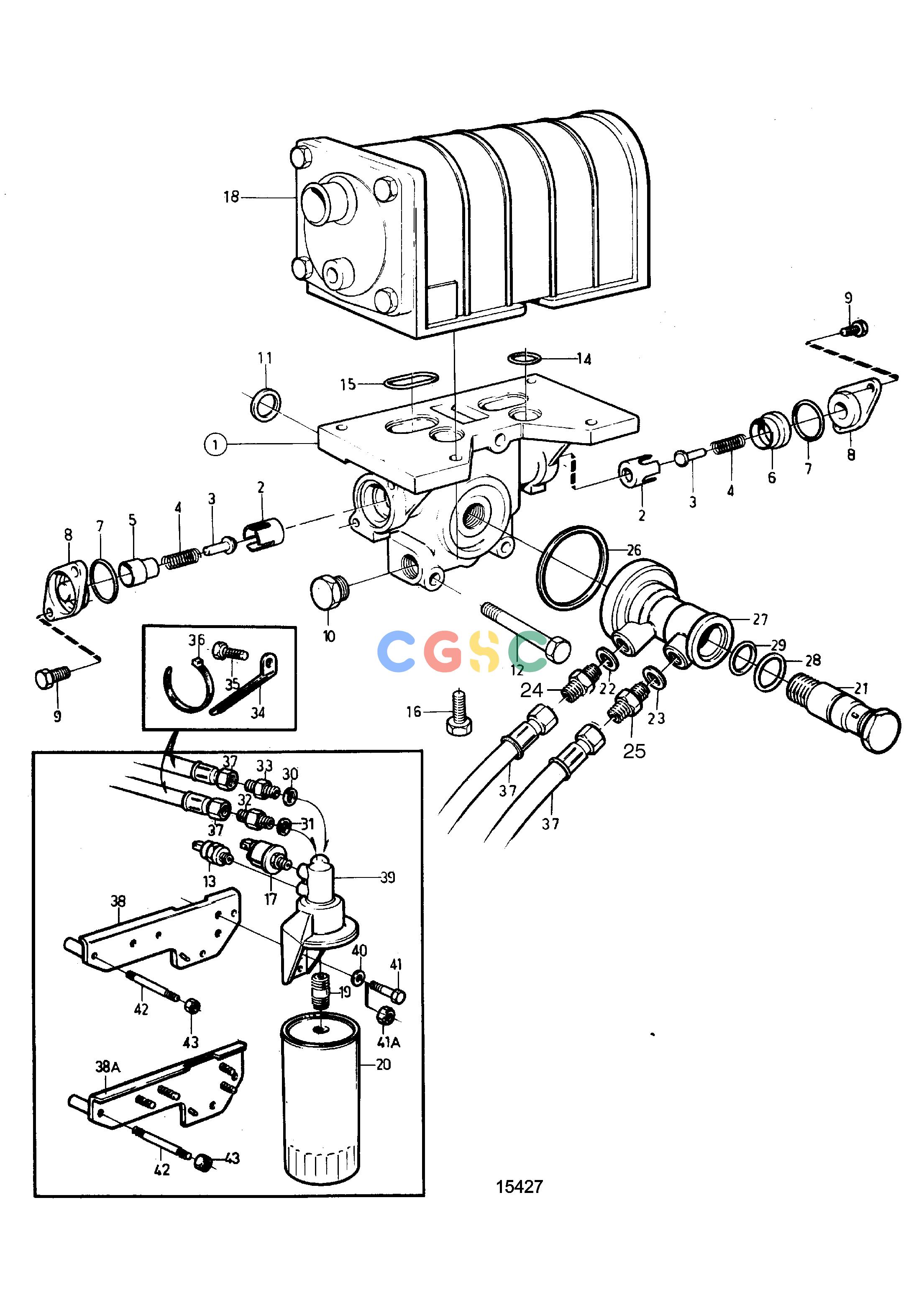

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BLubricating SystemOil FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860608
|
[1] |
Housing
|
|
| 2. |
1542265
|
[2] |
Valve seat
|
|
| 3. |
471085
|
[2] |
Valve cone
|
|
| 4. |
468087
|
[2] |
Spring
|
|
| 5. |
1542268
|
[1] |
Sleeve
|
|
| 6. |
1542266
|
[1] |
Sleeve
|
|
| 7. |
925065
|
[2] |
O-ring
|
|
| 8. |
1542267
|
[2] |
Cover
|
|
| 9. |
946544
|
[4] |
Flange screw
|
|
| 10. |
479977
|
[1] |
Plug
|
(952077)
|
| 11. |
469483
|
[4] |
Sealing ring
|
|
| 12. |
965182
|
[3] |
Flange screw
|
|
| 13. |
863169
|
[1] |
Pressure monitor
|
0,7 bar
|
| 14. |
469483
|
[2] |
Sealing ring
|
|
| 15. |
859086
|
[2] |
Sealing ring
|
|
| 16. |
946671
|
[4] |
Flange screw
|
|
| 17. |
866835
|
[1] |
Sensor, oil-engine
|
0-10 bar
|
| 18. |
|
|
|
|
| 19. |
423067
|
[1] |
Nipple
|
|
| 20. |
4785974
|
[1] |
Oil filter
|
|
| 21. |
860482
|
[1] |
Screw
|
|
| 22. |
947627
|
[1] |
Gasket
|
|
| 23. |
947627
|
[1] |
Gasket
|
|
| 24. |
947554
|
[1] |
Nipple
|
|
| 25. |
860794
|
[1] |
Nipple
|
|
| 26. |
967343
|
[1] |
O-ring
|
|
| 27. |
860483
|
[1] |
Adapter
|
|
| 28. |
949659
|
[1] |
O-ring
|
|
| 29. |
949721
|
[1] |
O-ring
|
|
| 30. |
947627
|
[1] |
Gasket
|
|
| 31. |
947627
|
[1] |
Gasket
|
|
| 32. |
860794
|
[1] |
Nipple
|
|
| 33. |
947554
|
[1] |
Nipple
|
|
| 34. |
21619824
|
[1] |
Bracket
|
|
| 35. |
946440
|
[1] |
Flange screw
|
|
| 36. |
948211
|
[1] |
Cable tie
|
|
| 37. |
860527
|
[2] |
Oil hose
|
|
| 38. |
860529
|
[1] |
Bracket
|
Early type
|
| 38A. |
861550
|
[1] |
Bracket
|
Later prod
|
| 39. |
860530
|
[1] |
Filter housing
|
|
| 40. |
941907
|
[2] |
Spring washer
|
|
| 41. |
968886
|
[2] |
Flange screw
|
For 860529
|
| 41A. |
945408
|
[2] |
Flange nut
|
For 861550
|
| 42. |
|
|
|
See group 25
|
| 43. |
|
|
|
See group 25
|
