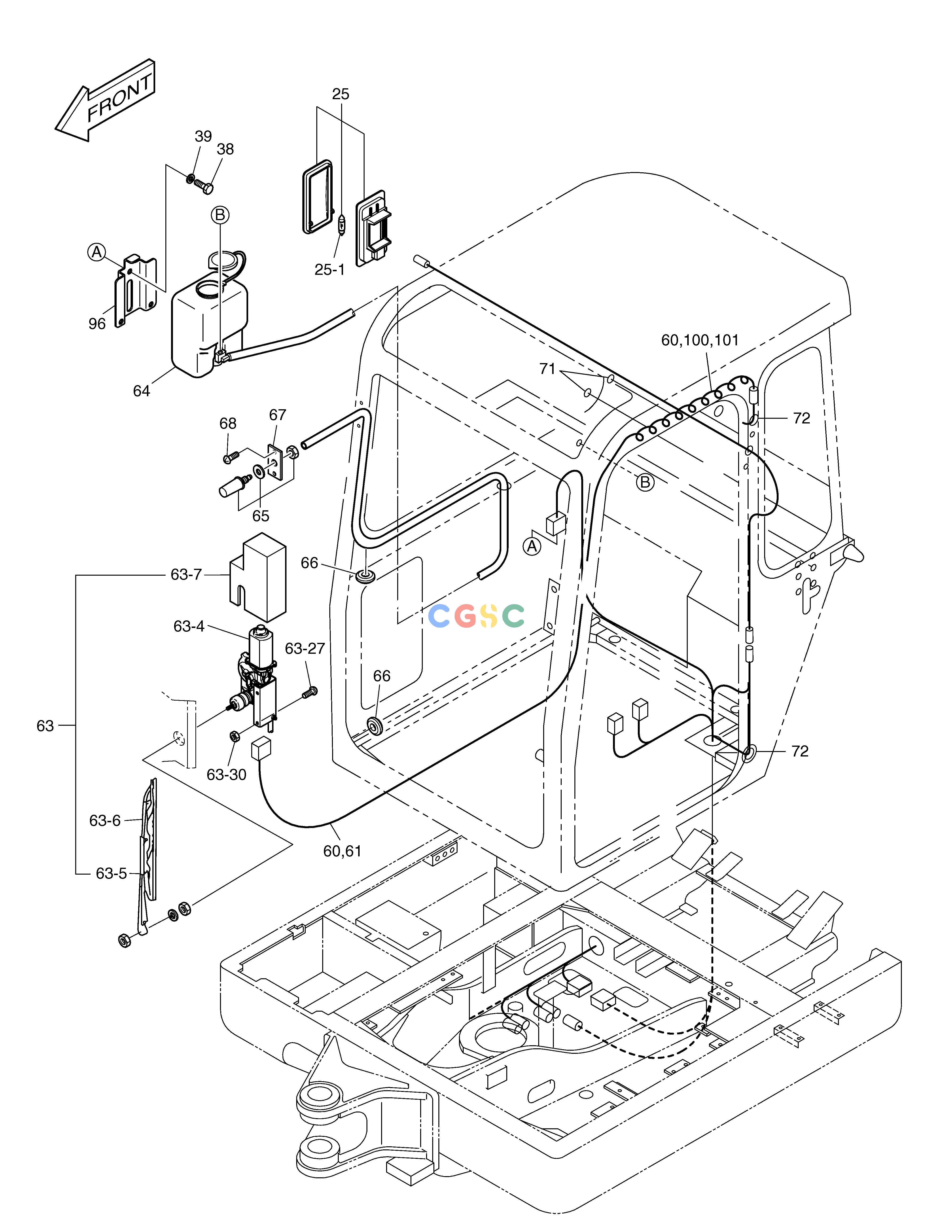

斗山零件查询CABIN(4) - TOPS SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
486 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00322
|
[1] |
CABIN ASS'Y(TOPS)
|
622-00322B
|
| -. |
622-00322B
|
[1] |
CABIN ASS'Y(TOPS)
|
|
| 100. |
S3450823
|
[1] |
SCREW
|
|
| 101. |
S3654333
|
[2] |
SCREW;TAPPING
|
|
| 25. |
2534-9068
|
[1] |
LAMP;ROOM
|
|
| 25-1. |
2515-1021D6
|
[1] |
BULB
|
|
| 38. |
S0504453
|
[2] |
BOLT
|
|
| 39. |
S5102303
|
[2] |
. WASHER
|
|
| 60. |
2124-1620
|
[4] |
CLIP
|
|
| 61. |
2530-1623A
|
[1] |
HARNESS;ROOM LAMP
|
|
| 63. |
2622-1424E
|
[1] |
DOOR ASS'Y(FRONT)
|
2622-1424H
|
| 63. |
2622-1424H
|
[1] |
DOOR ASS'Y(FRONT)
|
|
| 63-27. |
S3452823
|
[2] |
SCREW M5X0.8X10
|
|
| 63-30. |
S4012233
|
[2] |
NUT
|
|
| 63-4. |
538-00005
|
[1] |
MOTOR;WIPER
|
538-00005A
|
| 63-4. |
538-00005A
|
[1] |
MOTOR;WIPER
|
|
| 63-5. |
2541-6021
|
[1] |
ARM;WIPER
|
|
| 63-6. |
2507-6006
|
[1] |
BLADE;WIPER
|
|
| 63-7. |
2403-1053
|
[1] |
COVER;WIPER MOTOR
|
|
| 64. |
2916-9002A
|
[1] |
TANK;WASHER
|
|
| 65. |
2415-9001A
|
[1] |
NOZZLE
|
|
| 66. |
2160-1004D9
|
[2] |
GROMMET
|
|
| 67. |
2891-1229A
|
[1] |
PLATE
|
|
| 68. |
S3654183
|
[5] |
SCREW;TAPPING
|
|
| 71. |
2546-1002
|
[2] |
RING
|
|
| 72. |
2160-1004D10
|
[2] |
GROMMET
|
|
| 96. |
2195-1534
|
[1] |
BRACKET
|
|
