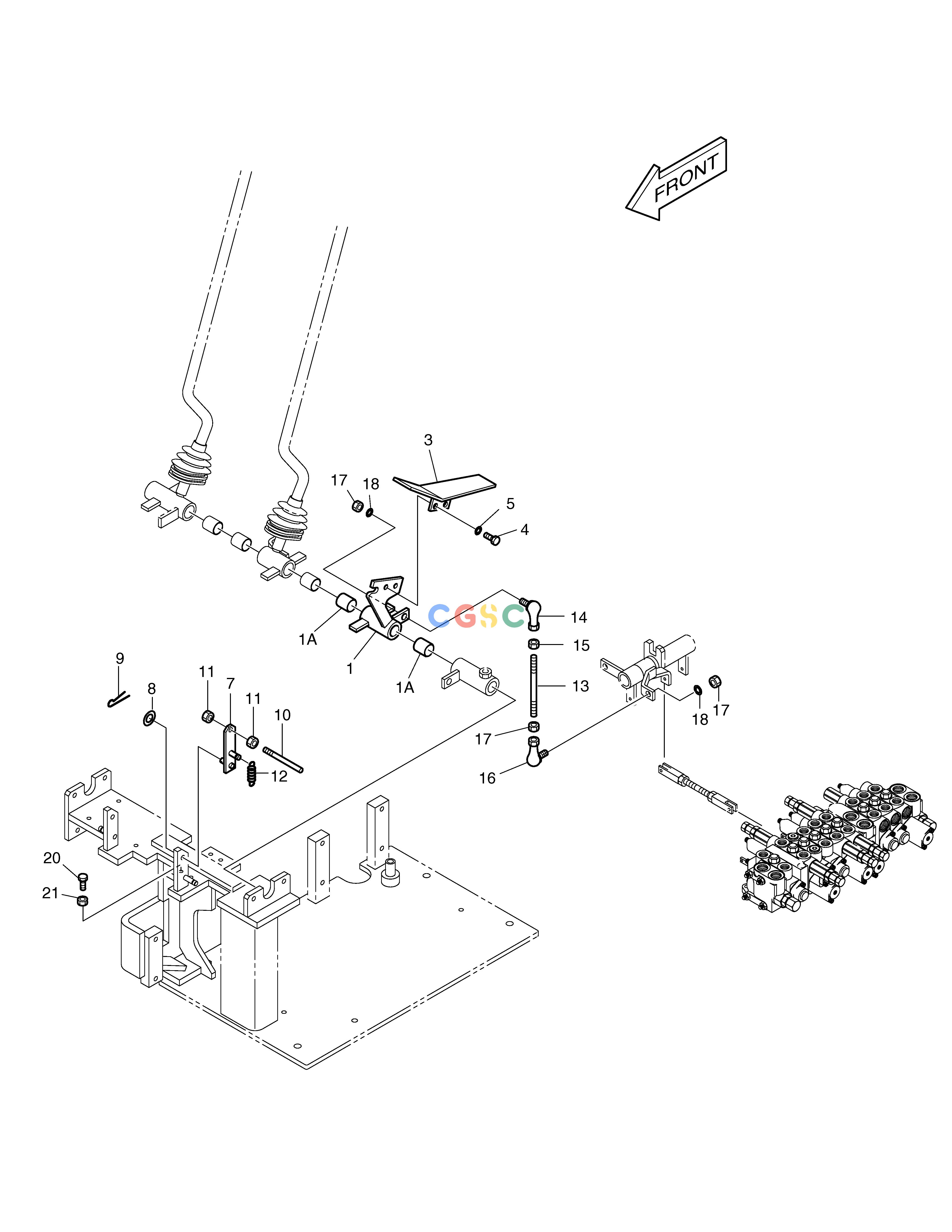

斗山零件查询CONTROL LEVER - BREAKER SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-2120
|
[-] |
CONTROL LEVER-BREAKER
|
|
| 1. |
137-00074
|
[1] |
LINK
|
|
| 10. |
2123-2124
|
[1] |
PIN
|
|
| 11. |
S4012533
|
[2] |
NUT
|
|
| 12. |
2129-1426
|
[1] |
SPRING
|
|
| 13. |
2136-1419A
|
[1] |
ROD(E)
|
|
| 14. |
2138-9018
|
[1] |
BALL;LINK(L.H)
|
|
| 15. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 16. |
2138-9017
|
[1] |
BALL;LINK
|
|
| 17. |
S4012633
|
[3] |
NUT
|
|
| 18. |
S5102603
|
[2] |
. WASHER
|
|
| 1A. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 20. |
S0509053
|
[1] |
. BOLT
|
|
| 21. |
S4012533
|
[1] |
NUT
|
|
| 3. |
134-00031
|
[1] |
PEDAL
|
|
| 4. |
S0509053
|
[2] |
. BOLT
|
|
| 5. |
S5102503
|
[2] |
. WASHER
|
|
| 7. |
2137-1177
|
[1] |
LINK
|
|
| 8. |
S5010513
|
[1] |
WASHER
|
|
| 9. |
S5735241
|
[1] |
PIN;SPLIT
|
|
