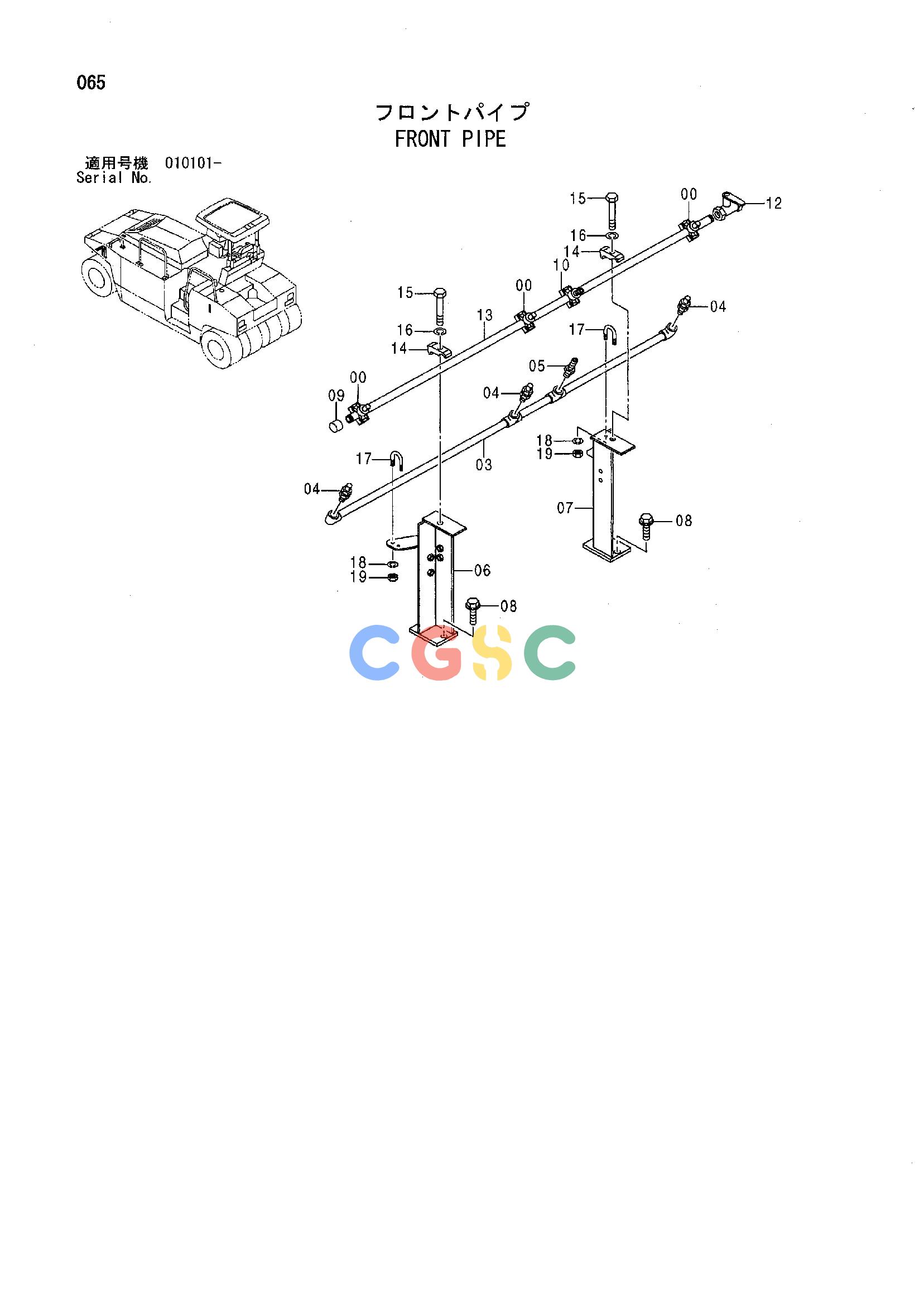

日立零件查询（CP210）FRONT PIPE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
679 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424373 | [3] | NOZZLE ASS'Y | |
| 03. | 424546 | [1] | PIPE;F | |
| 04. | 439517 | [3] | NOZZLE ASS'Y | |
| 05. | 424352 | [1] | FITTING;HOSE | |
| 06. | 426329 | [1] | BRACKET;(L) | |
| 07. | 426330 | [1] | BRACKET;(R) | |
| 08. | 500028 | [4] | BOLT;SEMS | |
| 09. | 947400 | [1] | CAP | |
| 10. | 424372 | [1] | FITTING;HOSE | |
| 12. | 424180 | [1] | COCK | |
| 13. | 424910 | [1] | PIPE;F | |
| 14. | 425980 | [2] | CLAMP;PIPE | |
| 15. | 947946 | [2] | BOLT | |
| 16. | 947887 | [2] | WASHER;SPRING | |
| 17. | 424435 | [2] | BOLT;U | |
| 18. | 947886 | [4] | WASHER;SPRING | |
| 19. | 947853 | [4] | NUT | |
