神钢零件查询(F4HFE613E B005) - ENGINE 5801925171 47748445 CX5090 S/L/H T4B (1/12-) (10.400.AE) - COOLING SYSTEM LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
692 次

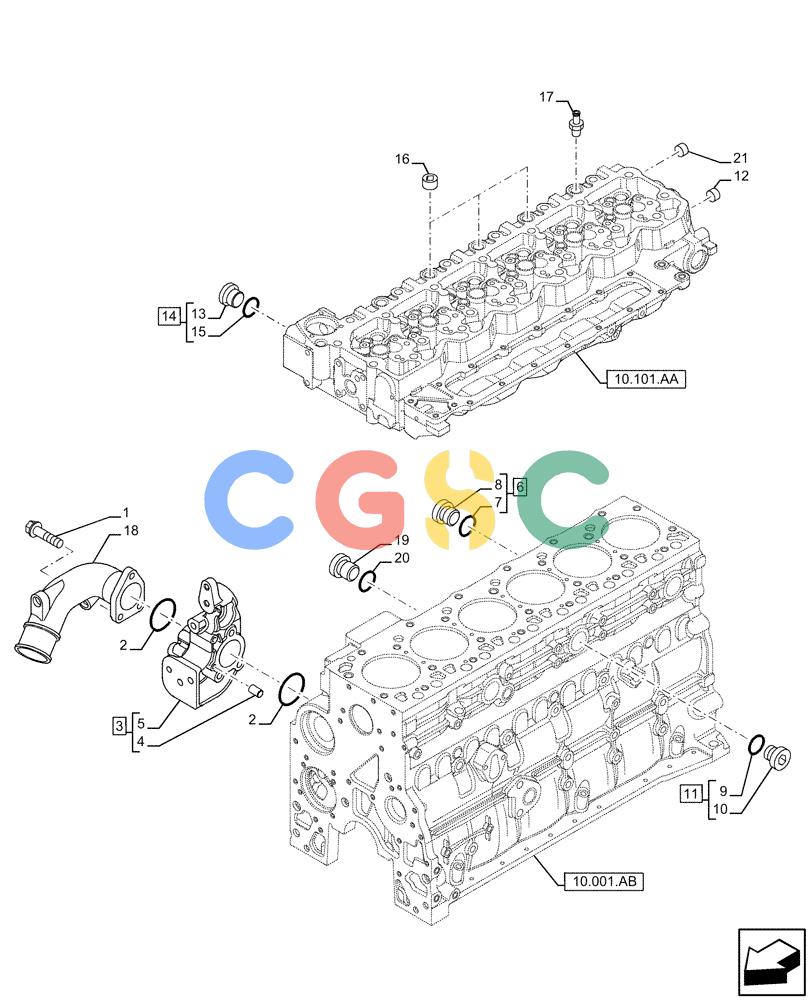

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NS | [3] | NOT SERVICED | BASScrew |
| 2. | 2854072 | [2] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 3. | NS | [1] | NOT SERVICED | BASASSY, Incl 4, 5 |
| 4. | 98405182 | [2] | DOWEL | TOR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSupport, Incl in 3 |
| 6. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORASSY, Incl 7, 8 |
| 7. | 4895393 | [2] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 6 |
| 9. | 4895082 | [1] | O-RING,19.3mm ID x 2.2mm Width | TOR Superseded by part number: 2854072 |
| 11. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORASSY, Incl 9, 10 |
| 12. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 14 |
| 14. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY, Incl 13, 15 |
| 15. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TORID = 19.3 x 2.2 Superseded by part number: 504062710 |
| 16. | 4895078 | [3] | PIPE PLUG,1/2"-14 | TOR |
| 18. | NS | [1] | NOT SERVICED | BASTube |
