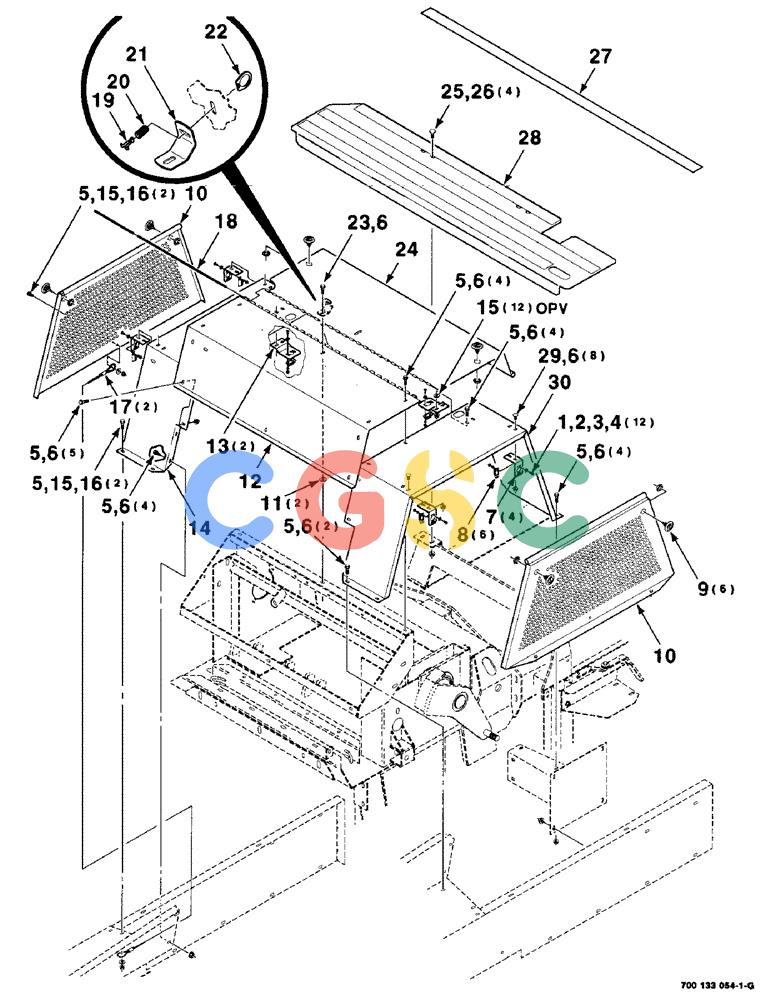

| 1. |
340-1108
|
[12] |
SCREW,Cross Pan Hd, #10-24 x 1/2"
|
CAS
#10-24 X 1/2 CRPHMS GR60M
|
| 2. |
195-513
|
[12] |
WASHER,#10
|
CAS
PLAIN WASHER #10 Superseded by part number: 9824326
|
| 3. |
492-11010
|
[12] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 4. |
225-14110
|
[12] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 5. |
121-115
|
[27] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 6. |
231-5145
|
[32] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 7. |
700133164
|
[4] |
SUPPORT
|
CAS
-RECEPTACLE
|
| 8. |
700714529
|
[6] |
SOCKET/RECEPTACLE
|
CAS
RECEPTACLE Superseded by part number: 292504A1
|
| 9. |
700714528
|
[6] |
LATCH
|
CAS
-1/4 TURN (Includes Nut) Superseded by part number: 292505A1
|
| 10. |
700133155
|
[2] |
SHIELD
|
CAS
WA-KNOTTER
|
| 11. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 12. |
700133159
|
[1] |
SHIELD
|
HFI
|
| 13. |
700133160
|
[2] |
SUPPORT
|
CAS
-LATCH
|
| 14. |
700133154
|
[1] |
SHIELD
|
CAS
-KNOTTER, RIGHT
|
| 15. |
495-61034
|
[16] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
5/16 WIDE PLAIN WASHER
|
| 16. |
232-5315
|
[4] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 17. |
8021693
|
[2] |
CABLE
|
CAS
|
| 18. |
6854301
|
[1] |
PIN
|
CAS
-HINGE
|
| 19. |
7894975
|
[1] |
CLIP
|
CAS
|
| 20. |
7758212
|
[1] |
SPRING
|
CAS
-COMPRESSION
|
| 21. |
6564595
|
[1] |
STOP
|
CAS
-DOOR
|
| 22. |
7894967
|
[1] |
HANDLE
|
CAS
|
| 23. |
121-108
|
[1] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 X 1 HWHMS
|
| 24. |
700133158
|
[1] |
SHIELD
|
HFI
-KNOTTER, TOP
|
| 25. |
111-360
|
[4] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5 Superseded by part number: 280430
|
| 26. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 27. |
6849178
|
[1] |
WALL
|
CAS
SAFETY-WALK (10 FOOT)
|
| 28. |
700123910
|
[1] |
PLATFORM
|
CAS
ASSEMBLY (Includes Safety-Walk)
|
| 29. |
434-512
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 280497, 87779118
|
| 30. |
700133153
|
[1] |
SHIELD
|
CAS
-KNOTTER, LEFT
|
