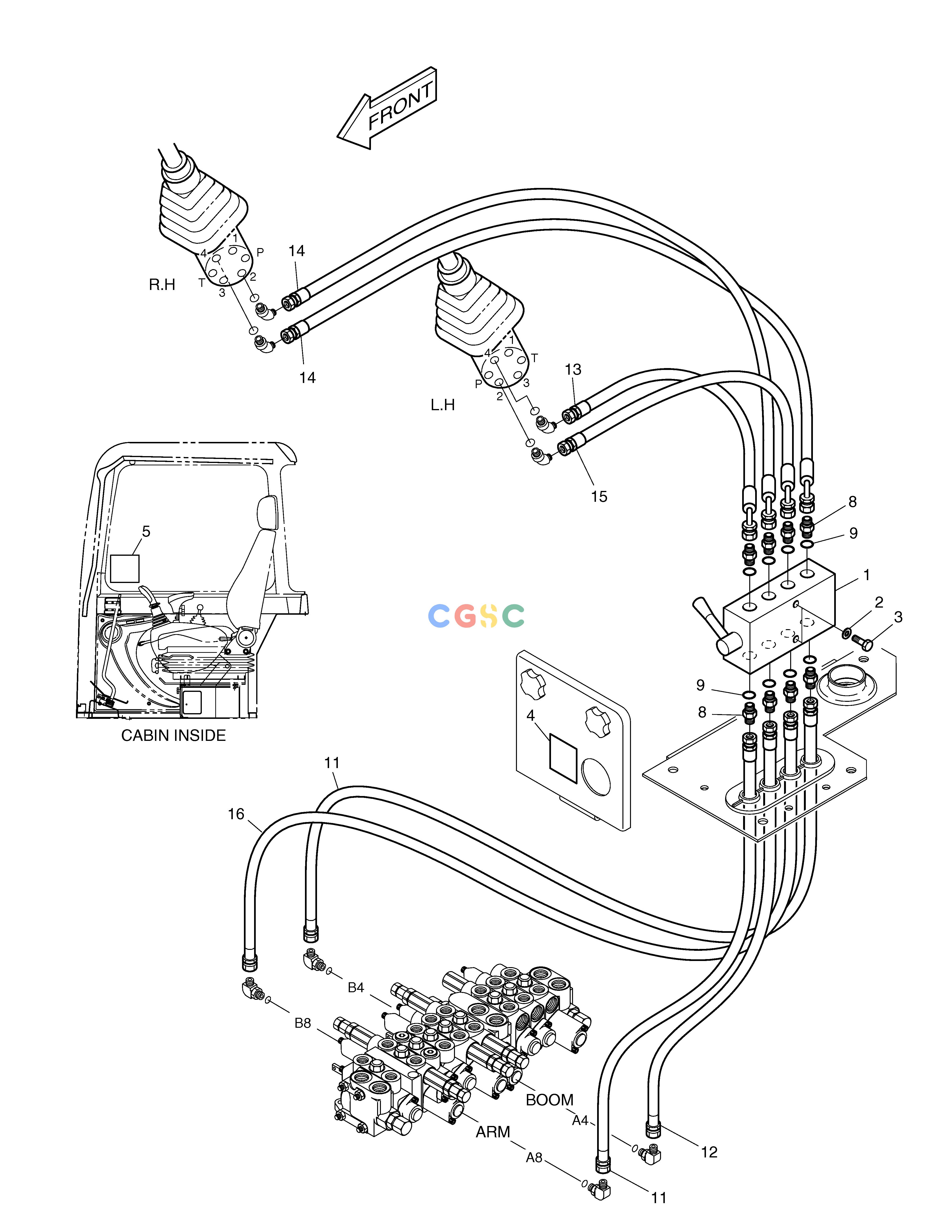

斗山零件查询SELECTOR VALVE PIPING SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002434
|
[-] |
SELECTOR VALVE PIPING
|
|
| 1. |
K1002374
|
[1] |
VALVE;SELECT
|
|
| 11. |
2184-1045D158
|
[2] |
HOSE PF1/4-650L
|
|
| 12. |
2184-1045D112
|
[1] |
HOSE PF1/4-510L
|
|
| 13. |
2184-1046D162
|
[1] |
HOSE PF1/4-920L
|
|
| 14. |
2184-1046D73
|
[2] |
HOSE PF1/4-1900L
|
|
| 15. |
2184-1046D191
|
[1] |
HOSE PF1/4-870L
|
|
| 16. |
2184-1045D200
|
[1] |
HOSE PF1/4-750L
|
|
| 2. |
2114-1898D2
|
[2] |
WASHER
|
|
| 3. |
2120-2166D38
|
[2] |
BOLT M8X1.25X35
|
|
| 4. |
190-00545A
|
[1] |
PLATE;NAME
|
|
| 5. |
K1002500
|
[1] |
PLATE;NAME
|
|
| 8. |
2181-1126D14
|
[8] |
ADAPTER
|
|
| 9. |
S8000111
|
[8] |
O-RING
|
|
