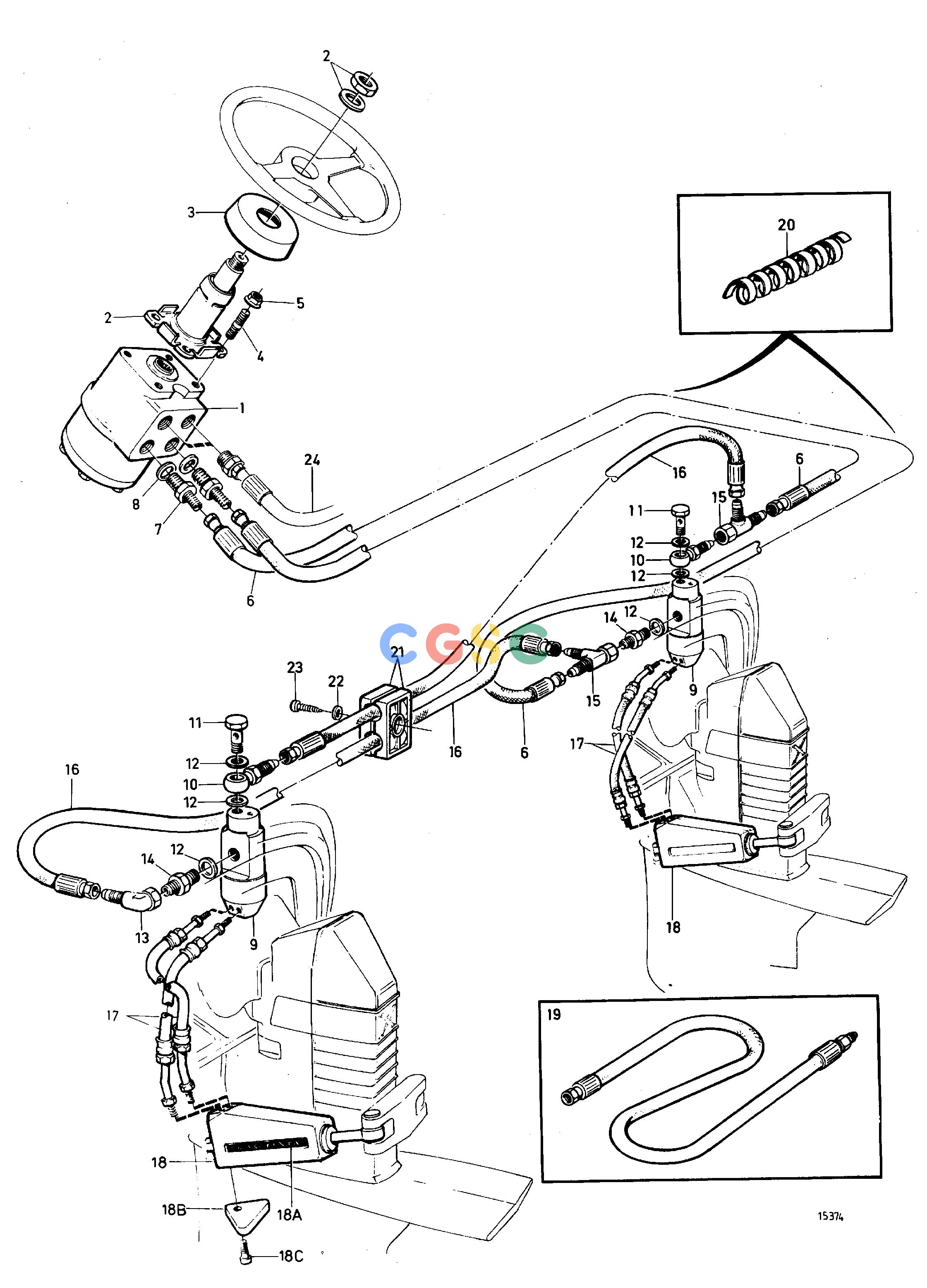

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BSteering SystemSteering and Steering Cylinders for Twin Inst.EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872156
|
[1] |
Pump unit
|
|
| 2. |
872157
|
[1] |
Steering column
|
|
| 3. |
873357
|
[1] |
Cover
|
|
| 4. |
924085
|
[4] |
Stud
|
|
| 5. |
971095
|
[4] |
Flange nut
|
|
| 6. |
872158
|
[2] |
Pressure hose
|
L=6,0m
|
| 7. |
873340
|
[2] |
Adapter
|
|
| 8. |
873341
|
[2] |
Washer
|
|
| 9. |
872956
|
[2] |
Grommet
|
|
| 10. |
873325
|
[2] |
Banjo nipple
|
|
| 11. |
873326
|
[2] |
Hollow screw
|
|
| 12. |
873327
|
[6] |
Washer
|
|
| 13. |
873328
|
[2] |
Adapter
|
|
| 14. |
873329
|
[2] |
Adapter
|
|
| 15. |
873330
|
[2] |
Manifold
|
|
| 16. |
872166
|
[2] |
Pressure hose
|
L=1,2m
|
| 17. |
872593
|
[8] |
Hydraulic hose
|
|
| 18. |
873231
|
[4] |
Steering cylinder
|
Mounted on interm. housing of the drive unit and connected to the hook up fork.
|
| 18A. |
872965
|
[4] |
Decal
|
|
| 18B. |
872793
|
[4] |
Zinc electrode
|
|
| 18C. |
963683
|
[4] |
Hex. socket screw
|
|
| 19. |
872169
|
[1] |
Pressure hose
|
L=1,0m
|
| 20. |
873331
|
[1] |
Coil
|
L=0,5m
|
| 21. |
873335
|
[3] |
Clamp
|
|
| 22. |
873337
|
[3] |
Washer
|
|
| 23. |
873339
|
[3] |
Screw
|
|
| 24. |
872158
|
[2] |
Pressure hose
|
|
