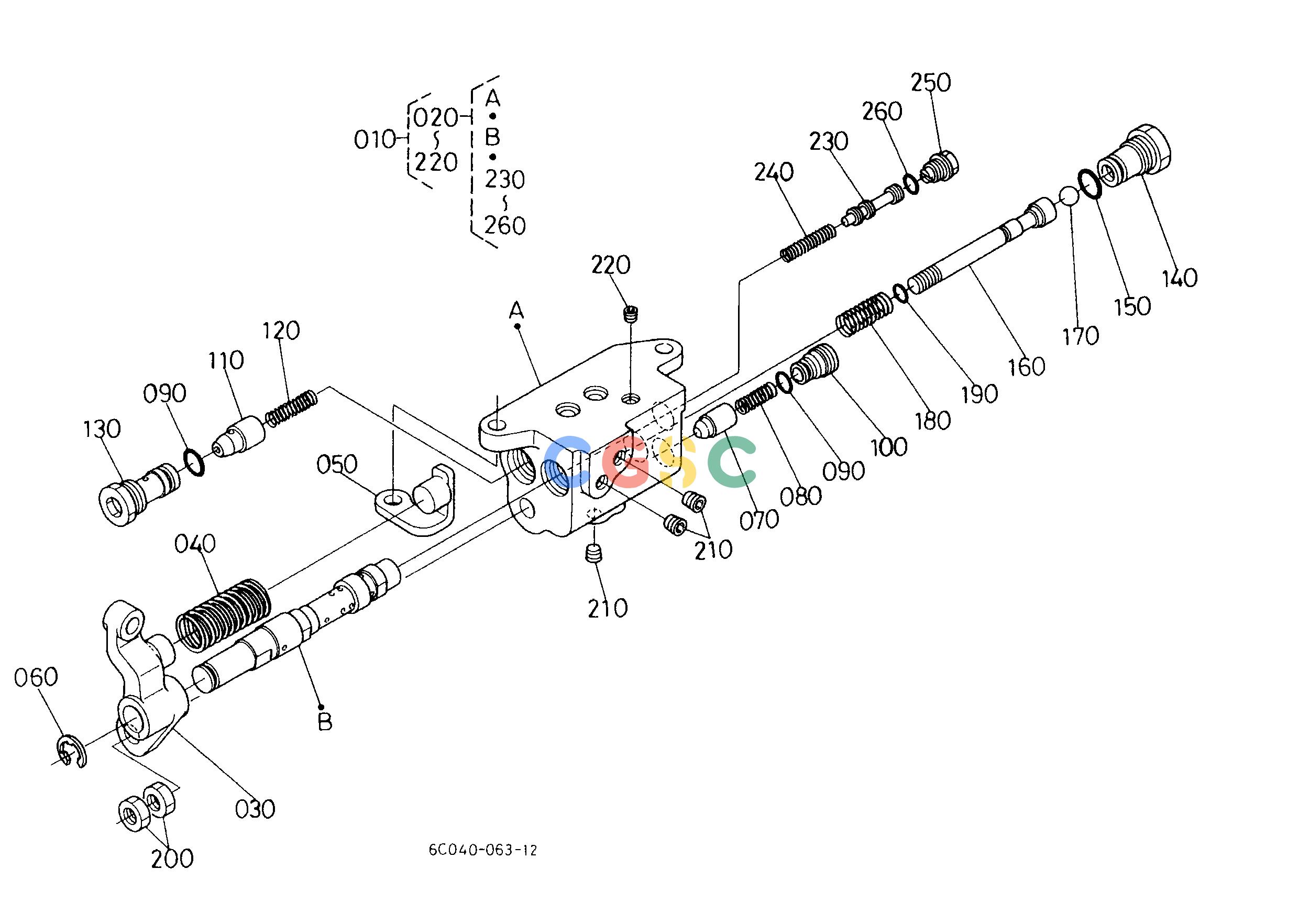

久保田零件查询J41002 CONTROL VALVE [COMPONENT PARTS] ## S.No.>=72546 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
304 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04036203
|
[1] |
ASSY VALVE CONTROL
|
0.0000(lbs); 0.000
|
| 010. |
6C04036204
|
[1] |
ASSY VALVE CONTROL
|
2.8820(lbs); 1.310
|
| 020. |
6C04036602
|
[1] |
ASSY BODY-SPOOL
|
0.0000(lbs); 0.000
|
| 020. |
6C04036603
|
[1] |
ASSY BODY-SPOOL
|
2.4200(lbs); 1.100
|
| 020. |
6C04036604
|
[1] |
ASSY BODY-SPOOL
|
2.1120(lbs); 0.960
|
| 030. |
6C04036652
|
[1] |
LEVER
|
0.0858(lbs); 0.039
|
| 040. |
6C04036660
|
[1] |
SPRING RETURN
|
0.0220(lbs); 0.010
|
| 050. |
6C04036270
|
[1] |
HOLDER SPRING
|
0.0550(lbs); 0.025
|
| 060. |
0461350090
|
[2] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6C04036670
|
[1] |
POPPET
|
0.0264(lbs); 0.012
|
| 080. |
6C04036680
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 090. |
0481700090
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
6A10036660
|
[1] |
PLUG
|
0.0330(lbs); 0.015
|
| 110. |
4810038320
|
[1] |
POPPET
|
0.0308(lbs); 0.014
|
| 120. |
4810038330
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 130. |
6A10036670
|
[1] |
PLUG
|
0.0594(lbs); 0.027
|
| 140. |
6A10036680
|
[1] |
PLUG
|
0.0924(lbs); 0.042
|
| 150. |
0481706100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
6A10036690
|
[1] |
POPPET
|
0.0770(lbs); 0.035
|
| 170. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 180. |
6A10036710
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 190. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
0205250080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 210. |
3270136150
|
[2] |
PLUG
|
0.0110(lbs); 0.005
|
| 220. |
3242067380
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 230. |
6A10036720
|
[1] |
SPRING PLUNGER
|
0.0110(lbs); 0.005
|
| 240. |
6A10036730
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 250. |
6A10036740
|
[1] |
PLUG
|
0.0132(lbs); 0.006
|
| 260. |
0481600060
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
