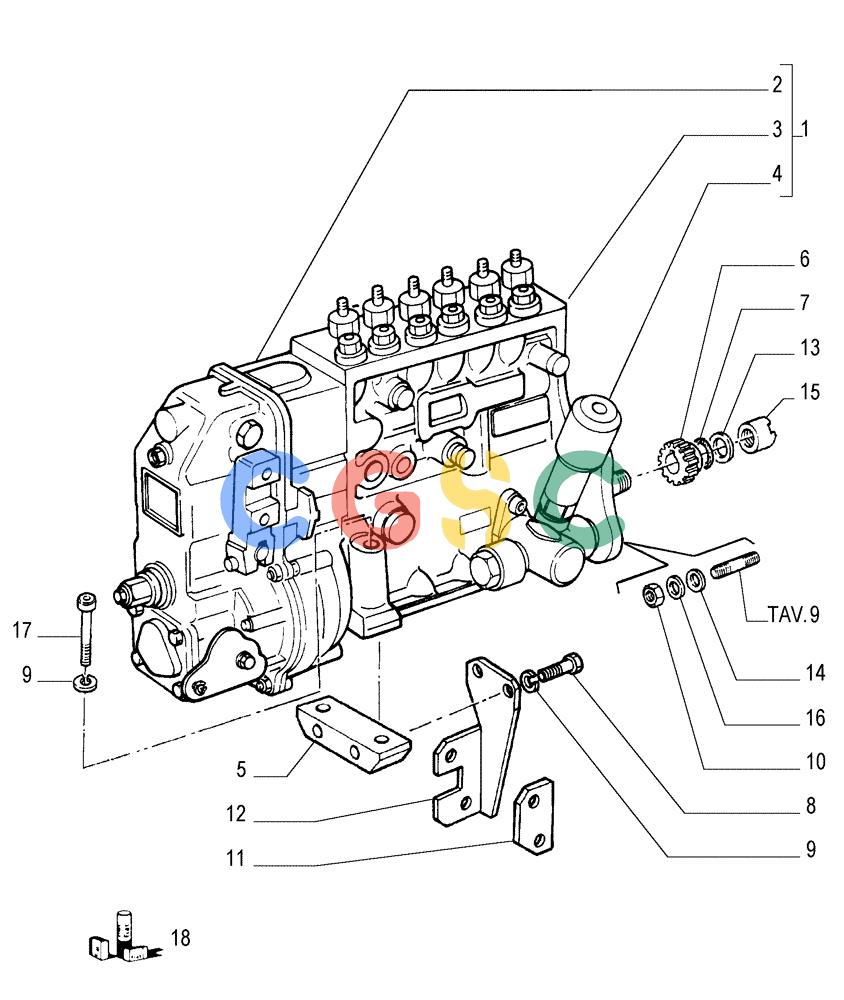

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.140[01]) - INJECTION EQUIPMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
732 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99450825 | [1] | FUEL INJECTION PUMP | LEC- ASSY - BOSCH |
| 4. | 71445067 | [1] | FUEL PUMP | TOR- ASSY SEE TAV.8 Superseded by part number: 76030852 |
| 5. | 4852806 | [1] | BLOCK | BRE |
| 6. | 4852814 | [1] | BUSHING | BRE |
| 7. | 61317701 | [1] | GASKET | BRE |
| 8. | 16605524 | [2] | SCREW,Hex, M8 x 20mm | TOR Superseded by part number: 16605534 |
| 9. | 11193874 | [4] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 10. | 17038221 | [4] | NUT | TOR Superseded by part number: 12164721 |
| 11. | 4852805 | [1] | SUPPORT | BRE |
| 12. | 4852804 | [1] | BRACKET | BRE |
| 13. | 4750525 | [1] | WASHER | BRE |
| 14. | 11198374 | [4] | BELLEVILLE WASHER,Belleville, M10.5 | TTF |
| 15. | 4750524 | [1] | NUT | BRE18X1,5 |
| 16. | 759850 | [4] | WASHER | MOD Superseded by part number: 12626024 |
| 17. | 16045024 | [2] | BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8 | IMO |
| 18. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
