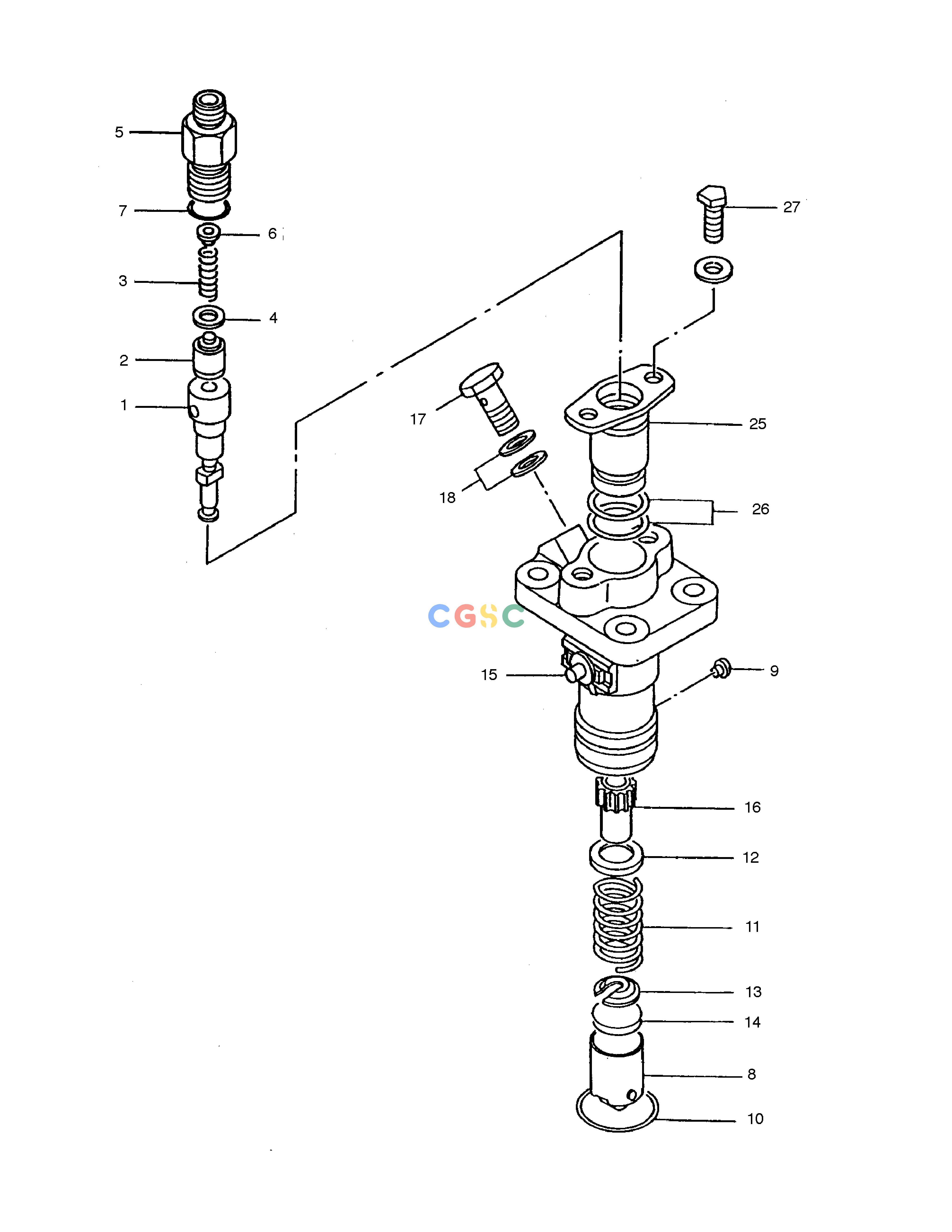

斗山零件查询INJECTION PUMP SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
897034-5915
|
[3] |
PUMP ASS'Y;INJECTION
|
|
| 1. |
897138-6490
|
[3] |
PLUNGER ASS'Y
|
|
| 10. |
897083-3500
|
[3] |
RING;SNAP
|
|
| 11. |
894128-9190
|
[3] |
SPRING;PLUNGER
|
|
| 12. |
894128-9200
|
[3] |
SEAT;SPRING UPPER
|
|
| 13. |
894128-9210
|
[3] |
SEAT;SPRING LOWER
|
|
| 14. |
894128-9310
|
[1] |
PLATE T=2.60
|
|
| 14. |
894128-9320
|
[1] |
PLATE T=2.65(OR)
|
|
| 14. |
894128-9330
|
[1] |
PLATE T=2.70(OR)
|
|
| 14. |
894128-9340
|
[1] |
PLATE T=2.75(OR)
|
|
| 14. |
894128-9350
|
[1] |
PLATE T=2.80(OR)
|
|
| 14. |
894128-9360
|
[1] |
PLATE T=2.85(OR)
|
|
| 14. |
894128-9370
|
[1] |
PLATE T=2.90(OR)
|
|
| 14. |
894128-9380
|
[1] |
PLATE T=2.95(OR)
|
|
| 14. |
894128-9390
|
[1] |
PLATE T=3.00(OR)
|
|
| 14. |
894128-9400
|
[1] |
PLATE T=3.05(OR)
|
|
| 14. |
894128-9410
|
[1] |
PLATE T=3.10(OR)
|
|
| 14. |
894128-9420
|
[1] |
PLATE T=3.15(OR)
|
|
| 14. |
894128-9430
|
[1] |
PLATE T=3.20(OR)
|
|
| 14. |
894128-9440
|
[1] |
PLATE T=3.25(OR)
|
|
| 14. |
894128-9450
|
[1] |
PLATE T=3.30(OR)
|
|
| 14. |
894128-9460
|
[1] |
PLATE T=3.35(OR)
|
|
| 14. |
894128-9470
|
[1] |
PLATE T=3.40(OR)
|
|
| 14. |
894128-9480
|
[1] |
PLATE T=3.45(OR)
|
|
| 14. |
894128-9490
|
[1] |
PLATE T=3.50(OR)
|
|
| 14. |
894128-9500
|
[1] |
PLATE T=3.55(OR)
|
|
| 14. |
894128-9510
|
[1] |
PLATE T=3.60(OR)
|
|
| 14. |
894128-9520
|
[1] |
PLATE T=3.65(OR)
|
|
| 14. |
894128-9530
|
[1] |
PLATE T=3.70(OR)
|
|
| 14. |
894128-9540
|
[1] |
PLATE T=3.75(OR)
|
|
| 14. |
894128-9550
|
[1] |
PLATE T=3.80(OR)
|
|
| 14. |
894128-9560
|
[1] |
PLATE T=3.85(OR)
|
|
| 14. |
894128-9570
|
[1] |
PLATE T=3.90(OR)
|
|
| 14. |
894128-9580
|
[1] |
PLATE T=3.95(OR)
|
|
| 14. |
894128-9590
|
[1] |
PLATE T=4.00(OR)
|
|
| 14. |
894128-9600
|
[1] |
PLATE T=4.05(OR)
|
|
| 14. |
894128-9610
|
[1] |
PLATE T=4.10(OR)
|
|
| 15. |
897083-3551
|
[3] |
RACK;CONTROL
|
|
| 16. |
894128-9230
|
[3] |
SLEEVE;CONTROL
|
|
| 17. |
894379-6880
|
[3] |
BOLT;EYE
|
|
| 18. |
894144-5880
|
[6] |
GASKET
|
|
| 2. |
897083-3460
|
[3] |
VALVE ASS'Y;DELIVERY
|
|
| 25. |
897083-3480
|
[3] |
SLEEVE;FLANGE
|
|
| 26. |
894379-6920
|
[6] |
O-RING
|
|
| 27. |
894379-6910
|
[6] |
BOLT
|
|
| 3. |
894128-9110
|
[3] |
SPRING;DELIVERY
|
|
| 4. |
894128-9120
|
[3] |
GASKET
|
|
| 5. |
894132-7461
|
[3] |
HOLDER;DELIVRY
|
|
| 6. |
897083-3470
|
[3] |
SEAT;SPRING
|
|
| 7. |
894128-9150
|
[3] |
O-RING
|
|
| 8. |
894128-9160
|
[3] |
TAPPET
|
|
| 9. |
897083-3490
|
[3] |
PIN
|
|
