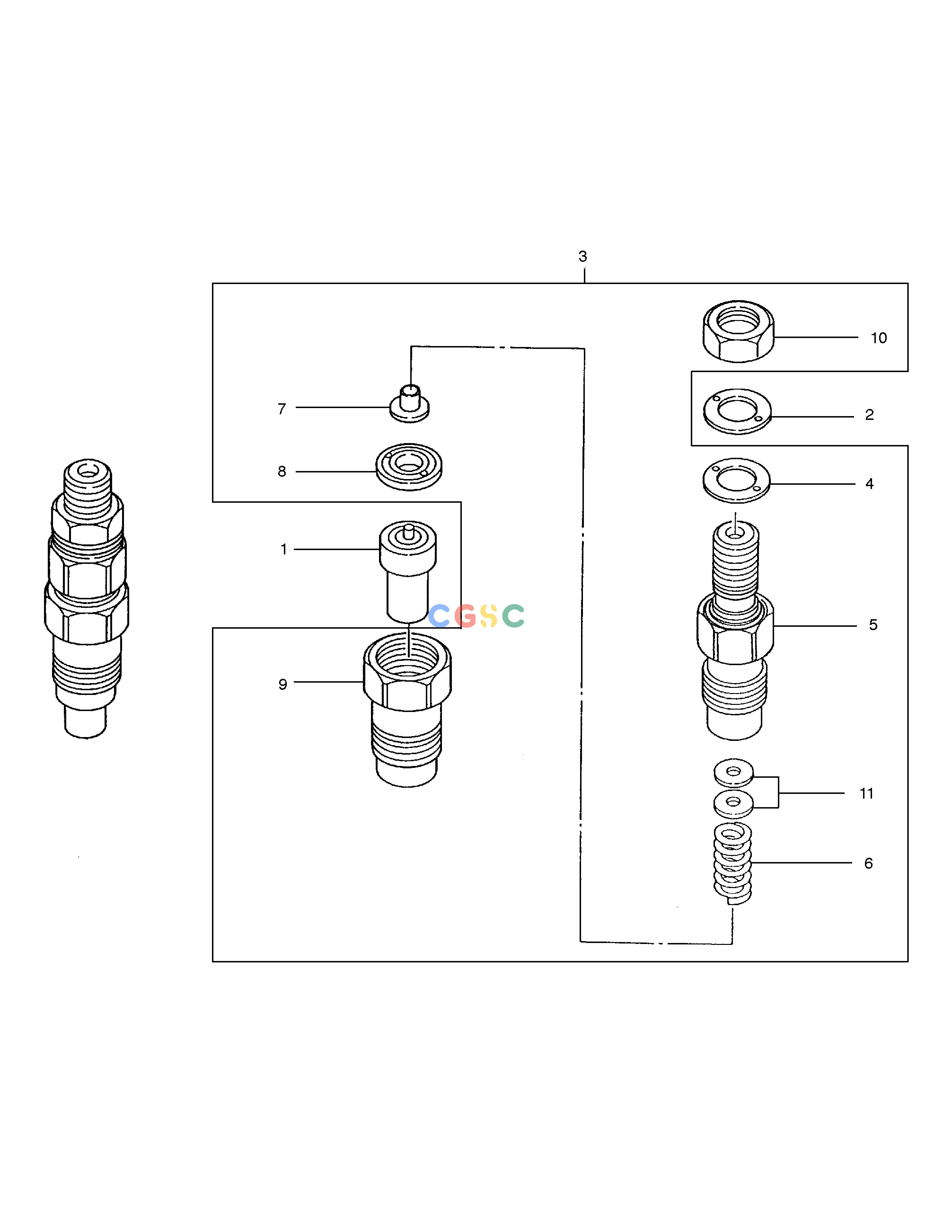

斗山零件查询NOZZLE ASS'Y SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
917 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
897079-9760
|
[3] |
NOZZLE ASS'Y INJ
|
|
| 1. |
894130-5320
|
[3] |
NOZZLE
|
|
| 10. |
894129-0060
|
[3] |
NUT
|
|
| 11. |
894176-9620
|
[1] |
SHIM;T=0.1
|
|
| 11. |
894176-9630
|
[1] |
SHIM;T=0.2(OR)
|
|
| 11. |
894176-9640
|
[1] |
SHIM;T=0.3(OR)
|
|
| 11. |
894176-9650
|
[1] |
SHIM;T=0.4(OR)
|
|
| 11. |
894176-9660
|
[1] |
SHIM;T=0.5(OR)
|
|
| 11. |
894176-9670
|
[1] |
SHIM;T=0.52(OR)
|
|
| 11. |
894176-9680
|
[1] |
SHIM;T=0.54(OR)
|
|
| 11. |
894176-9690
|
[1] |
SHIM;T=0.56(OR)
|
|
| 11. |
894176-9700
|
[1] |
SHIM;T=0.58(OR)
|
|
| 11. |
894176-9710
|
[1] |
SHIM;T=0.8(OR)
|
|
| 2. |
894101-9930
|
[3] |
GASKET
|
|
| 3. |
N.P.N
|
[3] |
BODY;NOZZLE
|
|
| 4. |
894104-9930
|
[3] |
GASKET
|
|
| 5. |
N.P.N
|
[3] |
BODY;NOZZLE
|
|
| 6. |
894128-9640
|
[3] |
SPRING;NOZZLE
|
|
| 7. |
894128-9630
|
[3] |
SEAT;SPRING
|
|
| 8. |
897083-3580
|
[3] |
SPACER
|
|
| 9. |
897084-6170
|
[3] |
NUT;RETAINING
|
|
