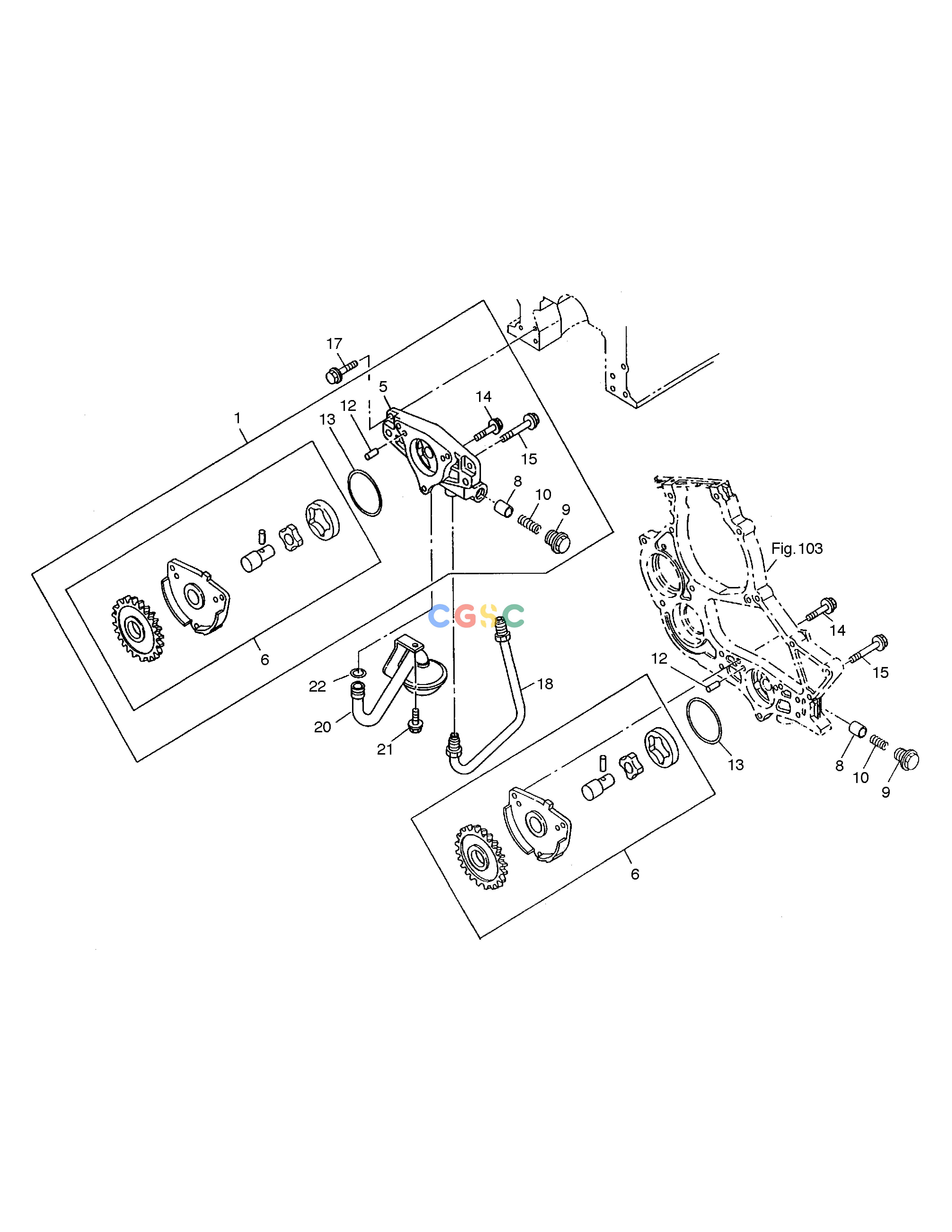

斗山零件查询OIL PUMP SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
617 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897048-8093
|
[1] |
PUMP ASS'Y;OIL
|
|
| 10. |
897113-3320
|
[1] |
SPRING;VALVE
|
|
| 12. |
908160-6160
|
[2] |
PIN;STRAIGHT RETAINER
|
|
| 13. |
897109-6790
|
[1] |
O-RING;OIL PUMP
|
|
| 14. |
028080-6300
|
[2] |
BOLT;OIL PUMP SUB FIX
|
|
| 15. |
028080-6500
|
[1] |
BOLT;OIL PUMP SUB FIX
|
|
| 17. |
028080-8300
|
[4] |
BOLT;BAND-SILENCER FIX
|
|
| 18. |
897045-4000
|
[1] |
PIPE;OIL PUMP-CYL BLOCK
|
|
| 20. |
897045-3991
|
[1] |
STRAINER ASS'Y;OIL
|
|
| 21. |
028080-8160
|
[1] |
BOLT;BRKT FIX
|
|
| 22. |
109623-4960
|
[1] |
O-RING;OIL STRAINER
|
|
| 5. |
897048-8103
|
[1] |
BODY;OIL PUMP
|
|
| 6. |
897044-8132
|
[1] |
PUMP SUB ASS'Y;OIL
|
|
| 8. |
894235-5671
|
[1] |
VALVE;RELIEF
|
|
| 9. |
894104-6150
|
[1] |
PLUG;VALVE
|
|
