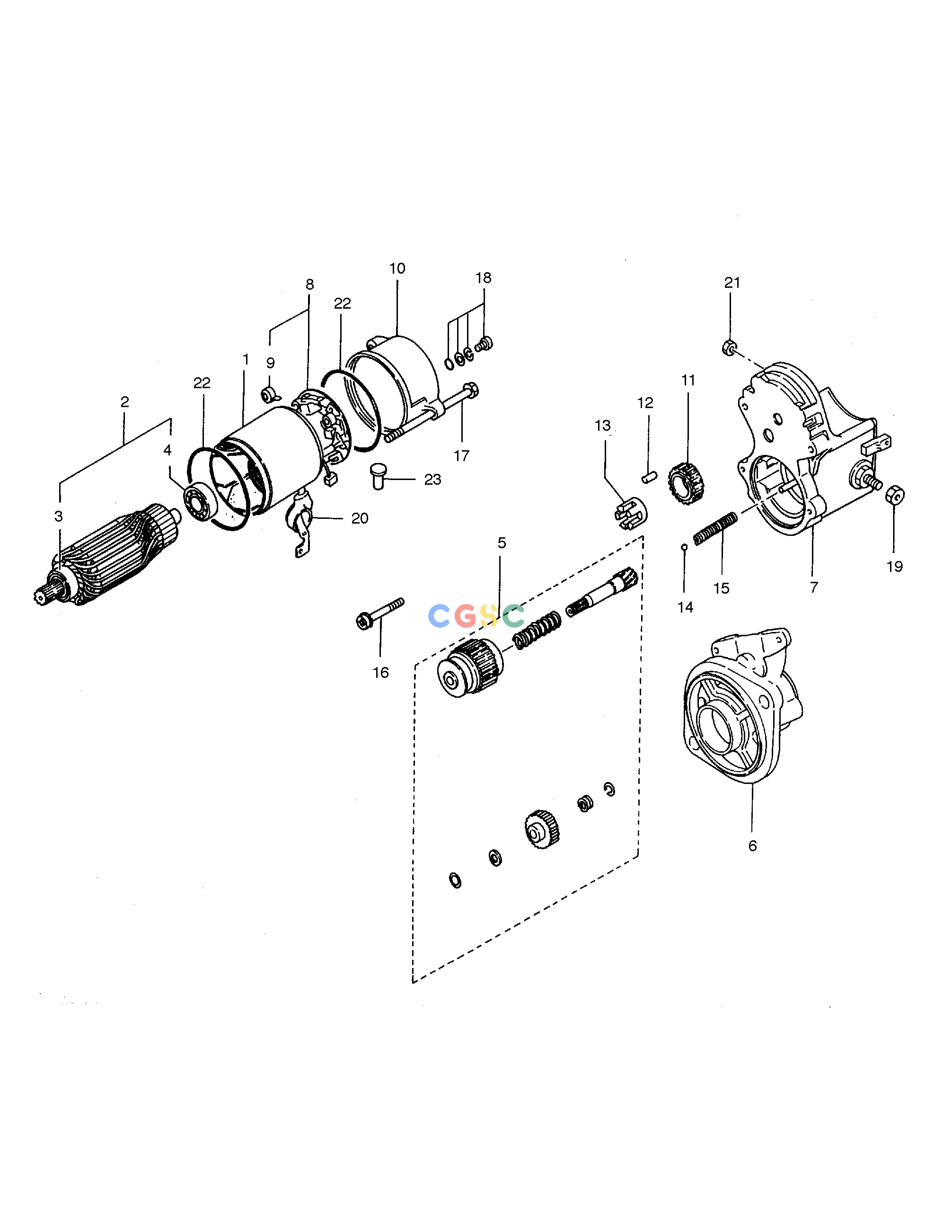

斗山零件查询STARTER SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
825 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
897048-9660
|
[1] |
STARTER ASS'Y
|
|
| 1. |
894377-2600
|
[1] |
YOKE ASS'Y
|
|
| 10. |
897078-6500
|
[1] |
FRAME;END
|
|
| 11. |
897078-6490
|
[1] |
PINION
|
|
| 12. |
581129-0990
|
[5] |
ROLLER;CLUTCH
|
|
| 13. |
894377-2460
|
[1] |
RETAINER
|
|
| 14. |
581129-0920
|
[1] |
BALL;STEEL
|
|
| 15. |
894377-2450
|
[1] |
SPRING;BETURN
|
|
| 16. |
894377-2430
|
[2] |
BOLT;W/WASHER
|
|
| 17. |
894381-9440
|
[2] |
BOLT;THROUGH
|
|
| 18. |
894170-2160
|
[2] |
SCREW;W/O-RING
|
|
| 19. |
509400-0420
|
[1] |
NUT
|
|
| 2. |
894377-2590
|
[1] |
AMATURE ASS'Y
|
|
| 20. |
581119-0290
|
[1] |
CAP;TERMINAL RUBBER
|
|
| 21. |
894377-2380
|
[1] |
NUT
|
|
| 22. |
894170-2140
|
[2] |
O-RING
|
|
| 23. |
897041-4210
|
[1] |
BUSHING;DRAIN
|
|
| 3. |
897377-2400
|
[1] |
BEARING;BALL
|
|
| 4. |
894377-2410
|
[1] |
BEARING;BALL
|
|
| 5. |
897078-6530
|
[1] |
CLUTCH KIT
|
|
| 6. |
897078-6520
|
[1] |
HOUSING ASS'Y
|
|
| 7. |
897078-6510
|
[1] |
SWITCH ASS'Y;MAGNETIC
|
|
| 8. |
894377-2580
|
[1] |
HOLDER ASS'Y;BRUSH
|
|
| 9. |
581177-0070
|
[4] |
SPRING;BRUSH
|
|
