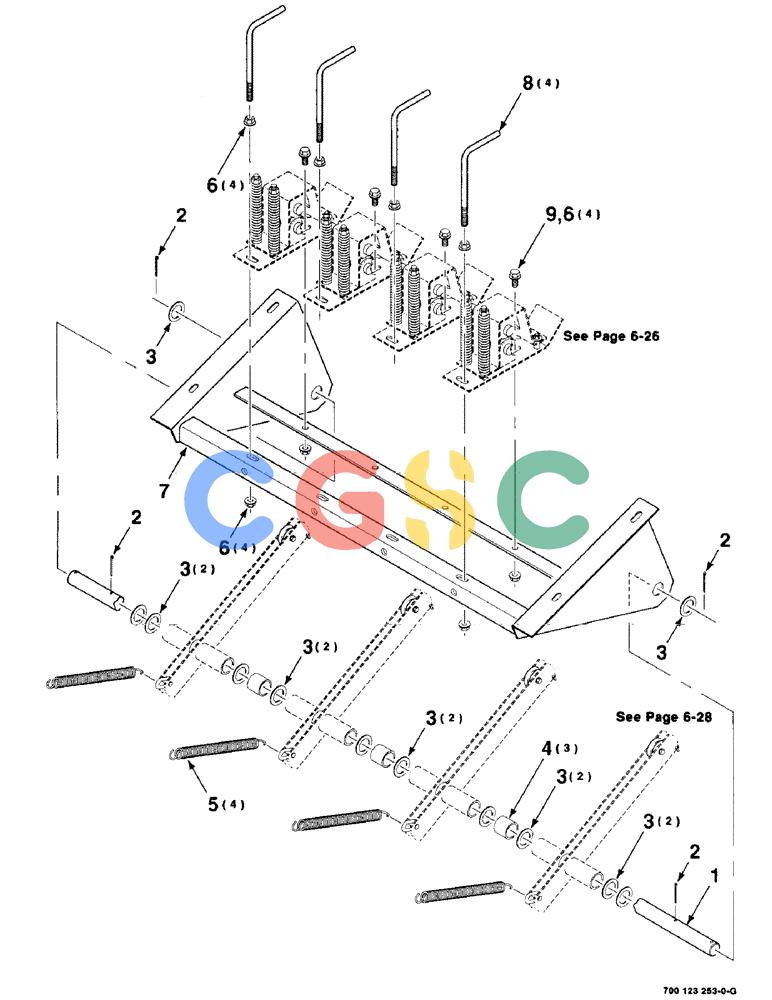

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (6-24) - TENSIONER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
950 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123260
|
[1] |
ROD
|
CAS
|
| 2. |
432-1024
|
[4] |
COTTER PIN,5/32" x 1 1/2"
|
CAS
5/32" x 1 1/2" Superseded by part number: 72187233, 88350
|
| 3. |
52258
|
[12] |
BUSHING
|
CAS
1 X 14 GAUGE NRMB
|
| 4. |
571823R1
|
[3] |
SPACER,1 1/4" Tube x 1"
|
IH
|
| 5. |
700714986
|
[4] |
SPRING
|
CAS
-EXTENSION
|
| 6. |
231-5146
|
[12] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 7. |
700123254
|
[1] |
SUPPORT
|
CAS
WA
|
| 8. |
702400048
|
[4] |
ROD
|
CAS
Superseded by part number: 700602446
|
| 9. |
409-7612
|
[4] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HFSS Superseded by part number: 72187187, 255918
|
