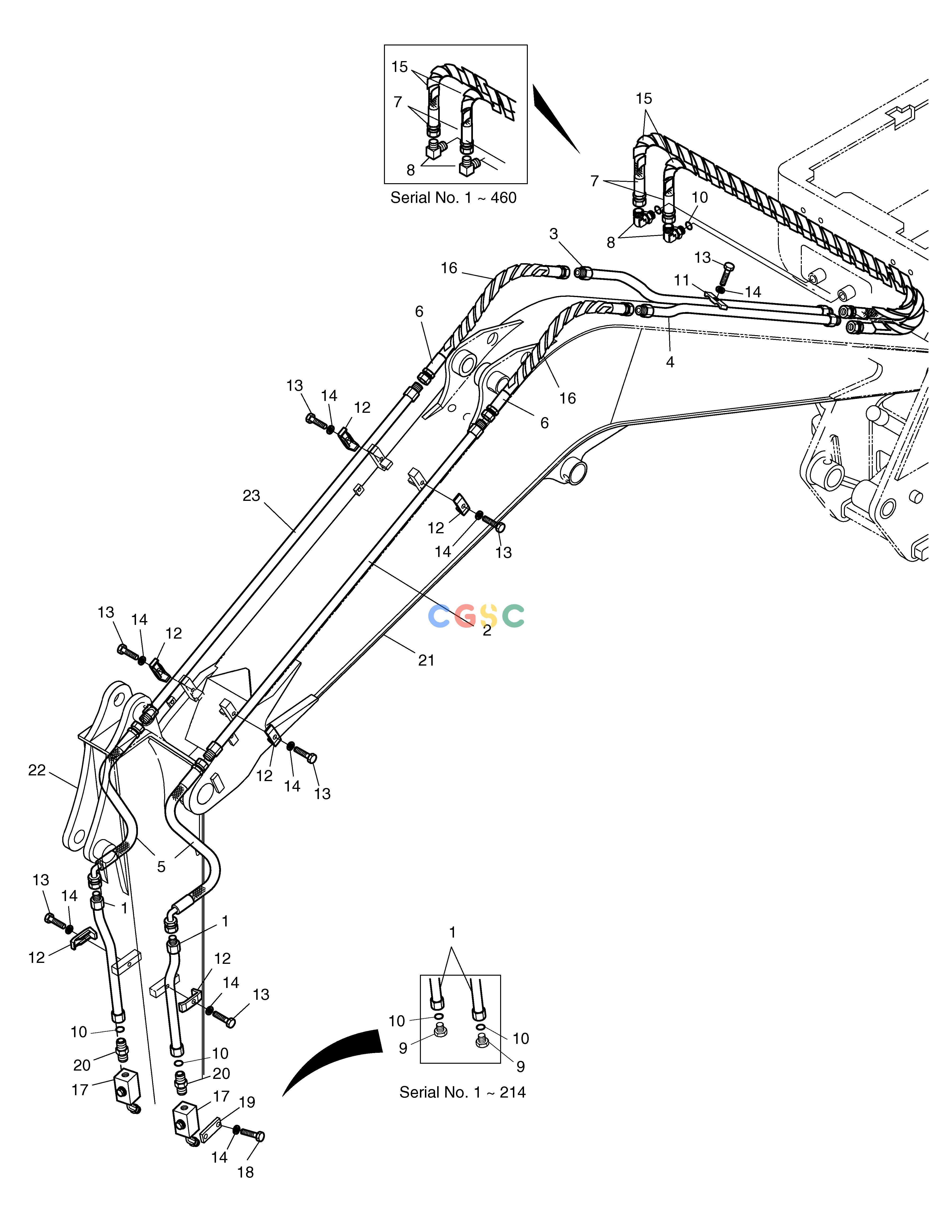

斗山零件查询BREAKER PIPING-ONE WAY SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
767 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1928
|
[-] |
BREAKER PIPING ASS'Y
|
|
| -. |
2400-1928A
|
[-] |
BREAKER PIPING ASS'Y
|
|
| 1. |
2182-1702
|
[2] |
PIPE
|
|
| 1. |
2182-1699
|
[2] |
PIPE
|
2182-1699A
|
| 1. |
2182-1699A
|
[2] |
PIPE
|
|
| 10. |
S8000181
|
[2] |
O-RING
|
|
| 10. |
S8000181
|
[4] |
O-RING
|
|
| 11. |
2124-1643
|
[2] |
CLAMP;PIPE
|
|
| 12. |
2124-1026D1
|
[8] |
CLAMP;PIPE
|
|
| 12. |
2124-1026D1
|
[6] |
CLAMP;PIPE
|
|
| 13. |
S0558453
|
[10] |
BOLT
|
|
| 13. |
S0558453
|
[8] |
BOLT
|
|
| 14. |
S5102603
|
[10] |
. WASHER
|
|
| 14. |
S5102603
|
[14] |
. WASHER
|
|
| 15. |
2158-1003D30
|
[2] |
HOSE;PROTECROT 1180L
|
|
| 16. |
2158-1003D29
|
[2] |
HOSE;PROTECROT 480L
|
|
| 17. |
2420-9584
|
[2] |
STOP VALVE ASS'Y
|
|
| 18. |
S0558753
|
[4] |
BOLT M10X1.5X60
|
|
| 19. |
2124-1659
|
[2] |
CLAMP;PIPE
|
|
| 2. |
2182-1703A
|
[2] |
PIPE
|
|
| 2. |
2182-1703B
|
[1] |
PIPE
|
|
| 2. |
2182-1703
|
[2] |
PIPE
|
2182-1703A
|
| 20. |
2181-1920D4
|
[2] |
ADAPTER PT1/2-PFO1/2
|
|
| 21. |
2701-1584B
|
[1] |
BOOM ASS'Y
|
|
| 22. |
2701-1583C
|
[1] |
ARM ASS'Y
|
|
| 23. |
140-00216
|
[1] |
PIPE
|
|
| 3. |
2182-1704A
|
[1] |
PIPE
|
|
| 3. |
2182-1704B
|
[1] |
PIPE
|
|
| 3. |
2182-1704
|
[1] |
PIPE
|
2182-1704A
|
| 4. |
2182-1705
|
[1] |
PIPE
|
2182-1705A
|
| 4. |
2182-1705A
|
[1] |
PIPE
|
|
| 4. |
2182-1705B
|
[1] |
PIPE
|
|
| 5. |
2184-1071D36
|
[2] |
HOSE PF1/2-800L
|
|
| 6. |
2184-1026D182
|
[2] |
HOSE PF1/2-600L
|
|
| 7. |
2184-1026D295
|
[2] |
HOSE PF1/2-1300L
|
|
| 8. |
2181-1186D3
|
[2] |
ELBOW PT1/2-PF1/2
|
|
| 8. |
2181-1702D50
|
[2] |
ELBOW
|
|
| 9. |
2181-1950D3
|
[2] |
PLUG
|
|
