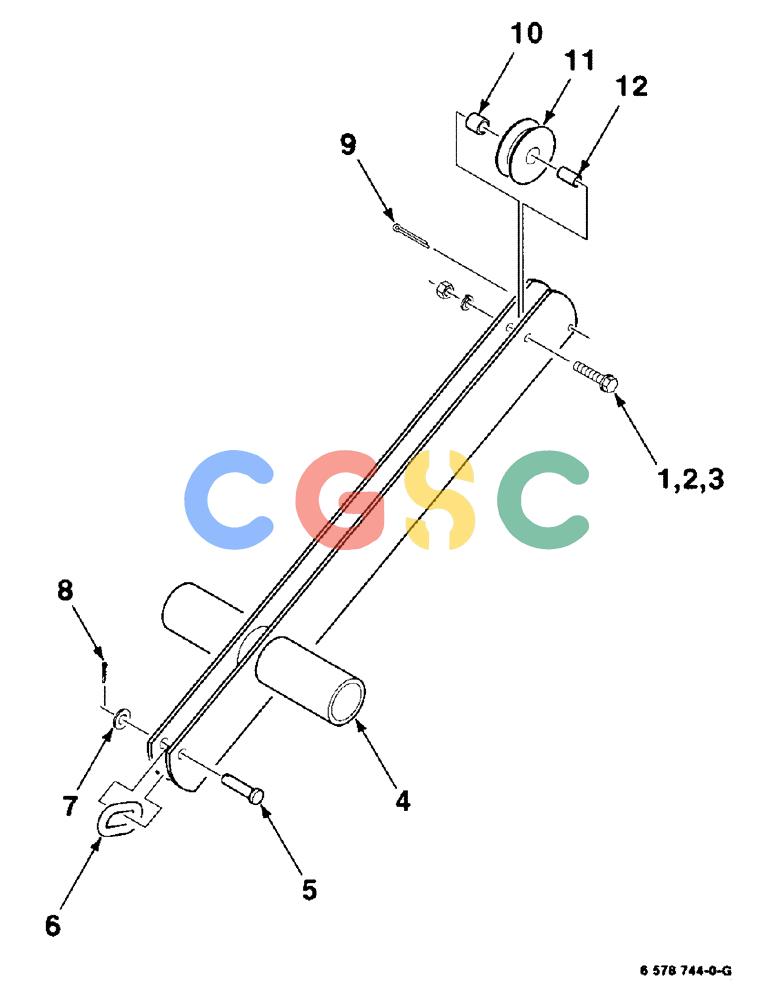

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (6-28) - TENSION ARM ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
363-31016
|
[1] |
SCREW,Hex Wash Hd, #10-24 x 1"
|
CAS
#10-24 X 1 HWHMS
|
| 2. |
492-11010
|
[1] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 3. |
225-14110
|
[1] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 4. |
6578751
|
[1] |
ARM
|
CAS
WA-TENSION
|
| 5. |
A8823
|
[1] |
PIN,6.29mm OD x 26.99mm L
|
CAS
1/4 X 1 CLEVIS PIN
|
| 6. |
89987
|
[1] |
CHAIN (AG)
|
HFI
LINK-CHAIN
|
| 7. |
495-11028
|
[1] |
WASHER,1/4", SAE
|
CAS
Superseded by part number: 87361, 72187256
|
| 8. |
432-48
|
[1] |
COTTER PIN,1/16" x 1/2"
|
CAS
PIN, SPLIT (COTTER), 1/16" x 1/2" Superseded by part number: 280236, 72187234
|
| 9. |
432-820
|
[1] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 1/8" x 1-1/4" Superseded by part number: 87395, 87778232
|
| 10. |
7849656
|
[1] |
SLEEVE
|
CAS
-ROLLER
|
| 11. |
6529945
|
[1] |
ROLLER
|
CAS
-NEEDLE
|
| 12. |
7849110
|
[1] |
BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L
|
CAS
BUSHING-ROLLER
|
