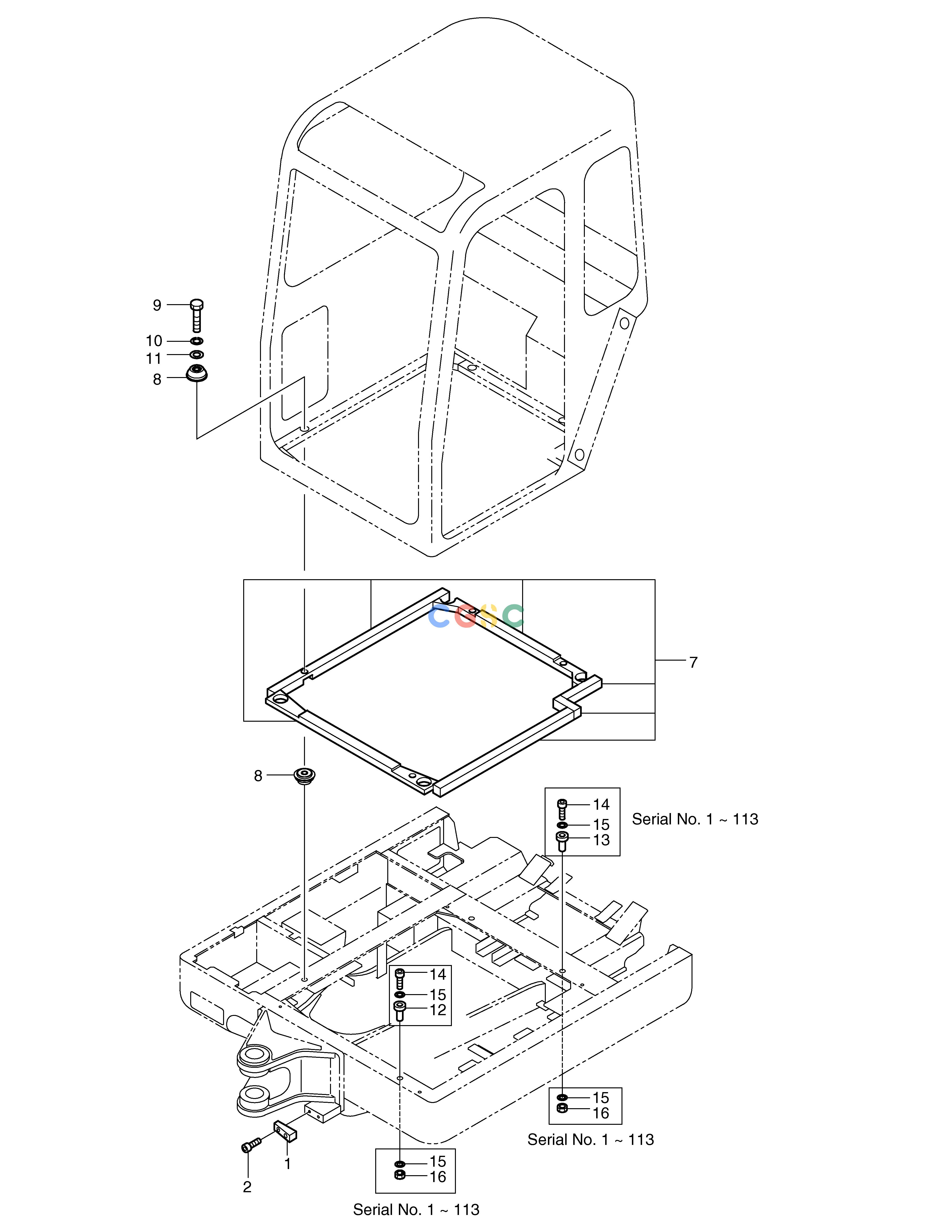

斗山零件查询CABIN MOUNTING SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-1447A
|
[-] |
CABIN ASS'Y
|
|
| 1. |
2128-1207
|
[1] |
STOPPER;SWING
|
2128-1207A
|
| 1. |
2128-1207A
|
[1] |
STOPPER;SWING
|
|
| 10. |
S5102703
|
[4] |
WASHER
|
|
| 11. |
2114-1058D68
|
[4] |
WASHER
|
2114-1058D73
|
| 11. |
2114-1058D73
|
[4] |
WASHER
|
|
| 12. |
71440283
|
[2] |
COLLAR
|
|
| 13. |
71440282
|
[2] |
COLLAR
|
|
| 14. |
S2227963
|
[4] |
BOLT;SOCKET M20X2.5X65
|
|
| 15. |
S5010913
|
[8] |
WASHER
|
|
| 16. |
S4500933
|
[4] |
NUT;FLANGE M16X2.0
|
|
| 2. |
S2212053
|
[2] |
BOLT;SOCKET M10X1.5X25
|
|
| 7. |
2161-2244
|
[1] |
ABSORBER;RUBBER
|
2161-2244A
|
| 7. |
2161-2244A
|
[1] |
ABSORBER;RUBBER
|
|
| 8. |
854-10004
|
[8] |
RUBBER;MOUNTING
|
|
| 9. |
S0561553
|
[4] |
BOLT M12X1.75X90
|
|
