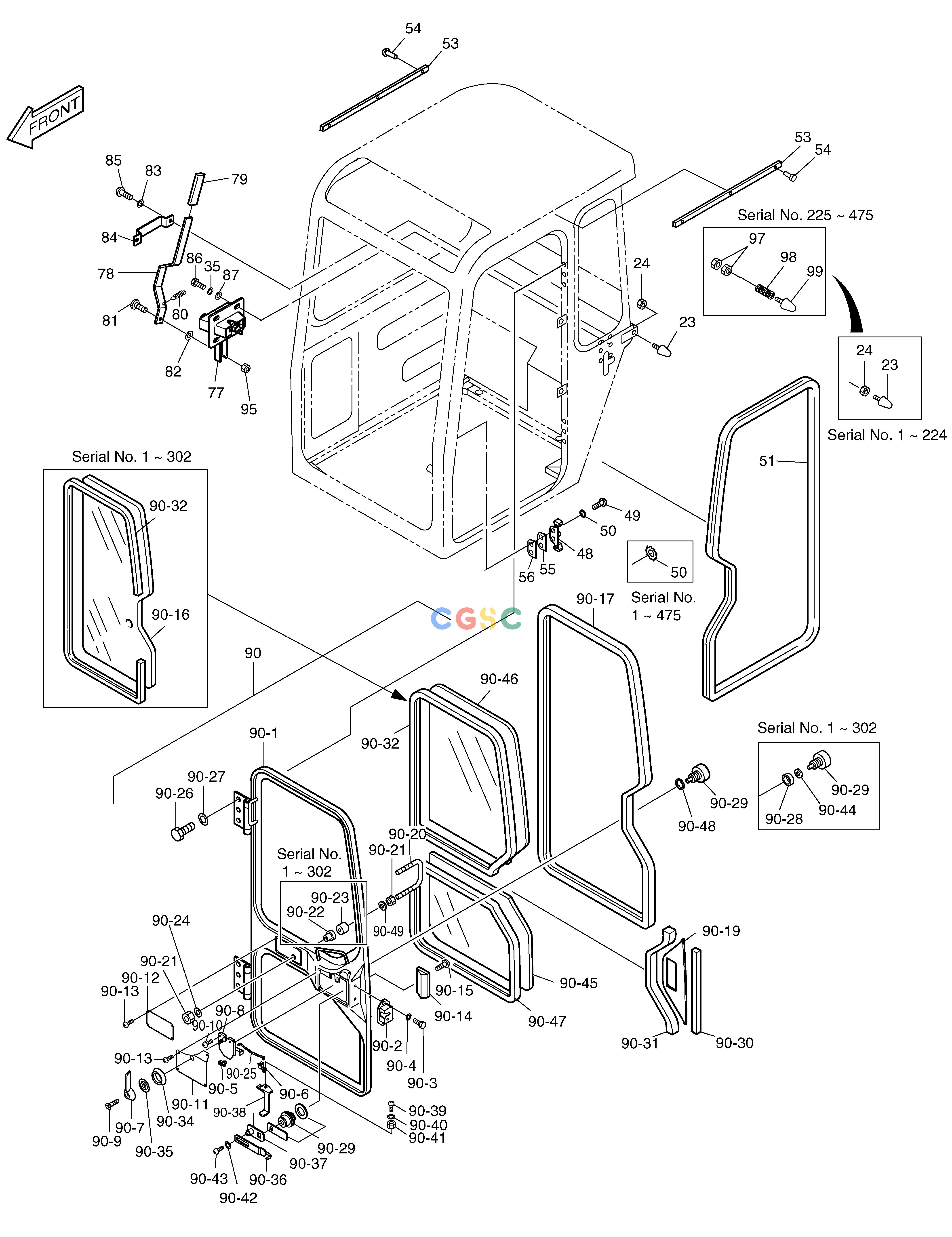

斗山零件查询CABIN(3)-OPTION(TOPS) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-1484
|
[1] |
CABIN ASS'Y
|
2622-1484A
|
| -. |
2622-1484A
|
[1] |
CABIN ASS'Y
|
2622-1484H
|
| -. |
2622-1484H
|
[1] |
CABIN ASS'Y
|
2622-1484J
|
| -. |
2622-1484J
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1484K
|
[1] |
CABIN ASS'Y
|
2622-1484L
|
| -. |
2622-1484L
|
[1] |
CABIN ASS'Y
|
2622-1484N
|
| -. |
2622-1484N
|
[1] |
CABIN ASS'Y
|
2622-1484P
|
| -. |
2622-1484P
|
[1] |
CABIN ASS'Y
|
|
| 23. |
2161-2179
|
[1] |
STOPPER
|
|
| 24. |
S4012733
|
[1] |
NUT
|
|
| 35. |
S5102503
|
[4] |
. WASHER
|
|
| 48. |
2142-9003
|
[1] |
STRIKER
|
|
| 49. |
2120-2143
|
[2] |
SCREW
|
|
| 50. |
S5200603
|
[2] |
WASHER
|
|
| 50. |
S8000081
|
[2] |
O-RING
|
|
| 51. |
2160-1023
|
[1] |
. TRIM;RUBBER
|
|
| 53. |
2621-3690
|
[2] |
FINISHER
|
|
| 54. |
2122-1002D3
|
[6] |
RIVET
|
|
| 55. |
2114-1840
|
[1] |
SHIM
|
|
| 56. |
2114-1839
|
[1] |
SHIM
|
|
| 77. |
2125-9028
|
[1] |
LOCK ASS'Y
|
2125-9049
|
| 77. |
2125-9049
|
[1] |
LOCK ASS'Y
|
|
| 78. |
2133-2001
|
[1] |
LEVER
|
|
| 79. |
2160-1292
|
[1] |
COVER
|
|
| 80. |
2129-1442
|
[1] |
SPRING
|
|
| 81. |
2123-2229
|
[1] |
PIN
|
|
| 82. |
S5010313
|
[1] |
WASHER
|
|
| 83. |
S5102303
|
[2] |
. WASHER
|
|
| 84. |
2891-1230
|
[1] |
GUIDE
|
|
| 85. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 86. |
S0508853
|
[4] |
. BOLT
|
|
| 87. |
S5010513
|
[4] |
WASHER
|
|
| 90. |
2622-1454A
|
[1] |
DOOR ASS'Y
|
|
| 90. |
2622-1454B
|
[1] |
DOOR ASS'Y
|
2622-1454E
|
| 90. |
2622-1454E
|
[1] |
DOOR ASS'Y
|
2622-1454G
|
| 90. |
2622-1454G
|
[1] |
DOOR ASS'Y
|
|
| 90-1. |
2622-1418B
|
[1] |
DOOR
|
|
| 90-1. |
2622-1418C
|
[1] |
DOOR
|
|
| 90-1. |
2622-1418E
|
[1] |
DOOR
|
2622-1418G
|
| 90-1. |
2622-1418G
|
[1] |
DOOR
|
|
| 90-10. |
S3450953
|
[2] |
SCREW
|
|
| 90-11. |
2621-3691
|
[1] |
COVER
|
|
| 90-12. |
2621-3692
|
[1] |
COVER
|
|
| 90-13. |
S3450563
|
[8] |
SCREW M4X0.7X8
|
|
| 90-14. |
2172-9019
|
[1] |
HANDLE;OUTER
|
|
| 90-15. |
S3450943
|
[2] |
SCREW
|
|
| 90-16. |
2903-1205
|
[1] |
GLASS
|
|
| 90-17. |
2198-2170
|
[1] |
TRIM;RUBBER
|
|
| 90-19. |
2621-3693A
|
[1] |
PLATE
|
|
| 90-2. |
2125-9031
|
[1] |
LOCK ASS'Y
|
|
| 90-20. |
2120-2141A
|
[1] |
BOLT;U
|
|
| 90-21. |
S4012633
|
[4] |
NUT
|
|
| 90-22. |
2114-1841
|
[2] |
COLLAR
|
|
| 90-23. |
2161-2338
|
[2] |
SEAL
|
|
| 90-24. |
S5010613
|
[2] |
WASHER
|
|
| 90-25. |
2136-1430
|
[1] |
ROD
|
|
| 90-26. |
S0508853
|
[6] |
. BOLT
|
|
| 90-27. |
S5102503
|
[6] |
. WASHER
|
|
| 90-28. |
2180-1263
|
[1] |
SEAL
|
|
| 90-29. |
41301-01630
|
[1] |
KEY ASS'Y
|
2172-9034
|
| 90-29. |
2172-9034
|
[1] |
KEY ASS'Y
|
|
| 90-3. |
S0505053
|
[2] |
BOLT
|
|
| 90-3. |
S0504653
|
[2] |
. BOLT
|
|
| 90-30. |
2161-2186
|
[1] |
DAMPER
|
|
| 90-31. |
2161-2186
|
[1] |
DAMPER
|
|
| 90-32. |
2161-2186
|
[1] |
DAMPER
|
|
| 90-34. |
2180-1264
|
[1] |
BASE
|
|
| 90-35. |
2180-1265
|
[1] |
BASE
|
|
| 90-36. |
2891-1233
|
[1] |
ROD ASS'Y
|
|
| 90-37. |
2891-1234
|
[1] |
PLATE
|
|
| 90-38. |
2891-1235
|
[1] |
PLATE
|
|
| 90-39. |
S0504453
|
[1] |
BOLT
|
|
| 90-4. |
S5102303
|
[2] |
. WASHER
|
|
| 90-40. |
S5102303
|
[1] |
. WASHER
|
|
| 90-41. |
S4012333
|
[3] |
NUT
|
|
| 90-41. |
S4012333
|
[1] |
NUT
|
|
| 90-42. |
S5100103
|
[1] |
WASHER
|
|
| 90-43. |
S3450563
|
[1] |
SCREW M4X0.7X8
|
|
| 90-44. |
2161-2339
|
[1] |
RUBBER
|
|
| 90-45. |
2903-1240
|
[1] |
GLASS
|
|
| 90-46. |
2903-1241
|
[1] |
GLASS
|
|
| 90-47. |
2161-2186
|
[1] |
DAMPER
|
|
| 90-48. |
2161-2486
|
[1] |
RUBBER
|
|
| 90-49. |
2114-1898D1
|
[2] |
WASHER
|
|
| 90-5. |
2124-1619
|
[1] |
SNAP
|
|
| 90-6. |
2124-1618
|
[2] |
SNAP
|
|
| 90-7. |
2172-9018
|
[1] |
HANDLE;INNER
|
|
| 90-8. |
2125-9032
|
[1] |
CONTROL;REMOTE
|
|
| 90-9. |
S3454853
|
[1] |
SCREW M5X16
|
|
| 95. |
S4012333
|
[1] |
NUT
|
|
| 97. |
S4014753
|
[2] |
NUT M12X1.75
|
|
| 98. |
2129-1432
|
[1] |
. SPRING
|
|
| 99. |
2161-2425
|
[1] |
STOPPER
|
|
