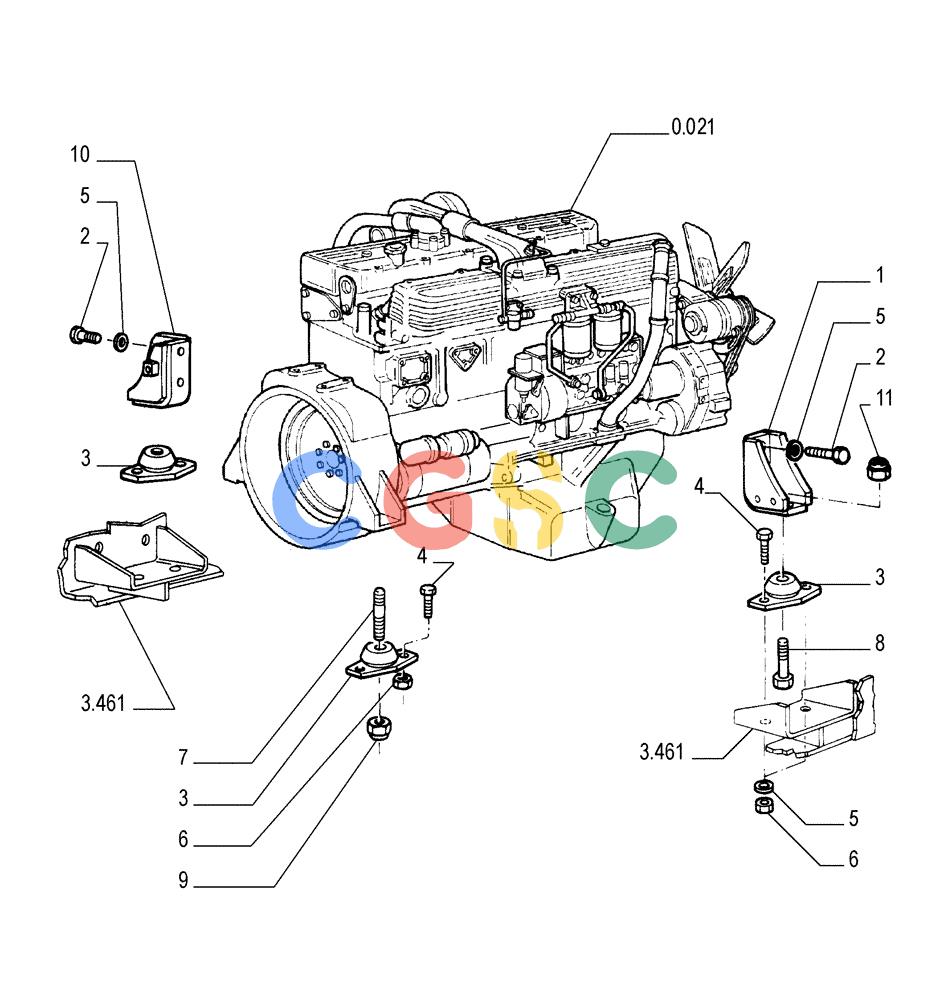

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.500[01]) - SUSPENSION - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76038275 | [1] | SUPPORT | LEC- FRONT LEFT |
| 2. | 11118531 | [4] | BOLT,Hex, M16 x 40, 10.9 | BHB Superseded by part number: 374835 |
| 3. | 4955094 | [4] | ISOLATOR | LEC |
| 4. | 11391531 | [8] | BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11391537 |
| 5. | 14496931 | [12] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 6. | 15504021 | [8] | NUT,M16 x 1.5 | MKT |
| 7. | 11813930 | [2] | STUD | LEC24X2X97 |
| 8. | 11398131 | [2] | BOLT,Hex, M24 x 2 x 80mm, Cl 10.9 | LEC Superseded by part number: 11398134 |
| 9. | 12575321 | [2] | NUT,M24 x 2, Cl 10 | LEC |
| 10. | 76041170 | [1] | SUPPORT | LEC- FRONT RIGHT |
| 11. | 79013815 | [2] | NUT | LEC |
