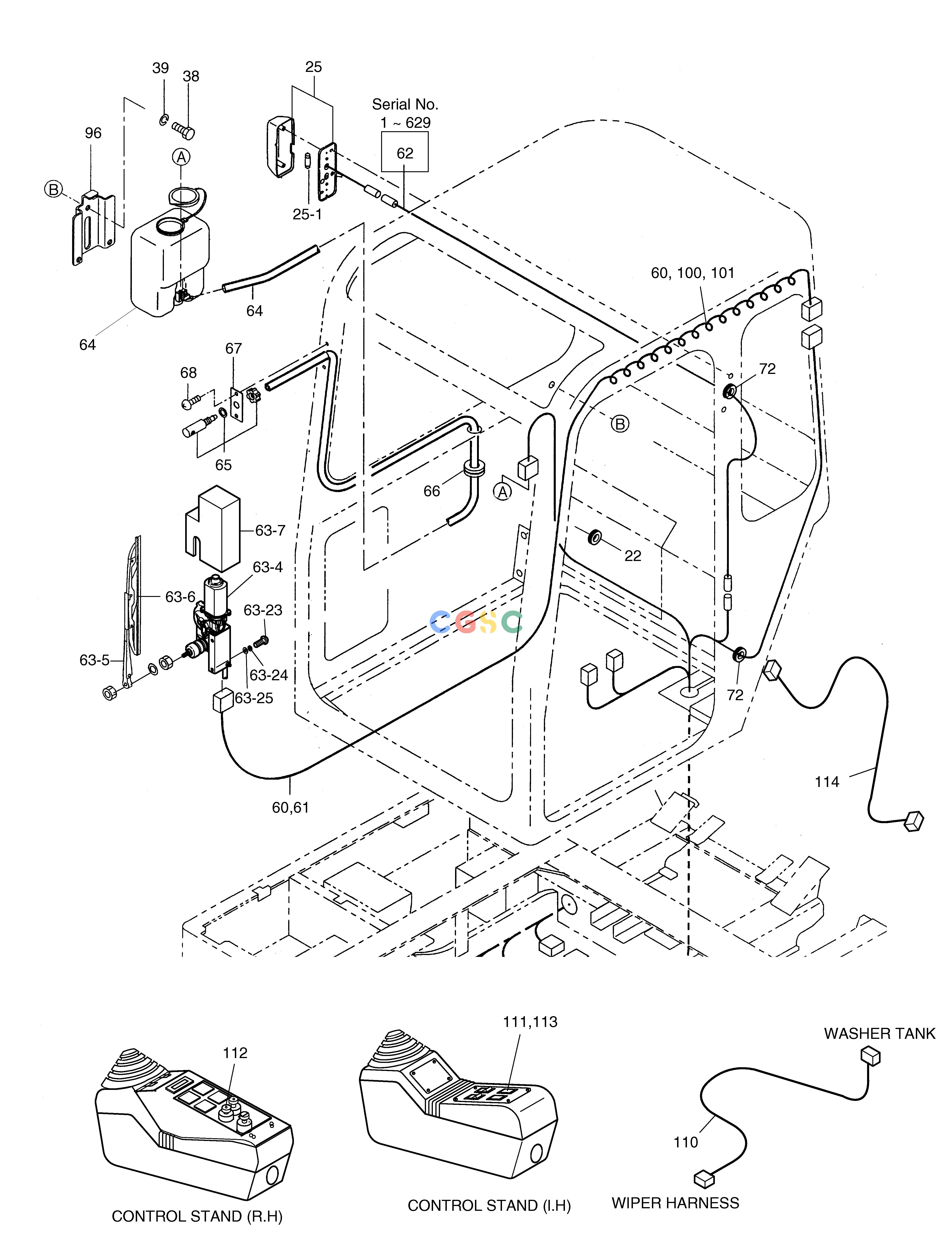

斗山零件查询CABIN(4)-OPTION(TOPS) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
312 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-1484
|
[1] |
CABIN ASS'Y
|
2622-1484A
|
| -. |
2622-1484A
|
[1] |
CABIN ASS'Y
|
2622-1484H
|
| -. |
2622-1484H
|
[1] |
CABIN ASS'Y
|
2622-1484J
|
| -. |
2622-1484J
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1484K
|
[1] |
CABIN ASS'Y
|
2622-1484L
|
| -. |
2622-1484L
|
[1] |
CABIN ASS'Y
|
2622-1484N
|
| -. |
2622-1484N
|
[1] |
CABIN ASS'Y
|
2622-1484P
|
| -. |
2622-1484P
|
[1] |
CABIN ASS'Y
|
|
| 100. |
S3450823
|
[1] |
SCREW
|
|
| 101. |
S3654333
|
[1] |
SCREW;TAPPING
|
|
| 110. |
2530-1658B
|
[1] |
HARNESS;CABIN
|
|
| 111. |
2549-9114
|
[1] |
SWITCH;WIPER & WASHER
|
|
| 112. |
545-00002
|
[1] |
LIGHTER;CIGAR
|
|
| 113. |
2190-2036D14
|
[1] |
INSERT;WIPER & WASHER
|
|
| 114. |
2530-1659
|
[1] |
HARNESS
|
|
| 22. |
2160-1293
|
[1] |
GROMMET
|
|
| 22. |
2160-1004D25
|
[1] |
BUSHING;RUBBER
|
|
| 25. |
2534-9068
|
[1] |
LAMP;ROOM
|
|
| 25-1. |
2515-1021D6
|
[1] |
BULB
|
|
| 38. |
S0504453
|
[2] |
BOLT
|
|
| 39. |
S5102303
|
[2] |
. WASHER
|
|
| 60. |
2124-1620
|
[3] |
CLIP
|
|
| 60. |
2124-1620
|
[4] |
CLIP
|
|
| 61. |
2530-1623A
|
[1] |
HARNESS;ROOM LAMP
|
|
| 62. |
2530-1655
|
[1] |
HARNESS;WIPER
|
|
| 63-23. |
S0504353
|
[2] |
BOLT M6X1.0X10
|
|
| 63-24. |
S5102303
|
[2] |
. WASHER
|
|
| 63-25. |
S5010303
|
[2] |
WASHER
|
|
| 63-4. |
2538-9015
|
[1] |
MOTOR;WIPER
|
|
| 63-4. |
538-00005
|
[1] |
MOTOR;WIPER
|
|
| 63-5. |
2541-6021
|
[1] |
ARM;WIPER
|
|
| 63-6. |
2507-6006
|
[1] |
BLADE;WIPER
|
|
| 63-7. |
2403-1053
|
[1] |
COVER;WIPER MOTOR
|
|
| 64. |
2916-9002A
|
[1] |
TANK;WASHER
|
|
| 65. |
2415-9001A
|
[1] |
NOZZLE
|
|
| 66. |
2160-1004D9
|
[5] |
GROMMET
|
|
| 67. |
2891-1229
|
[1] |
PLATE
|
|
| 68. |
S3650103
|
[2] |
SCREW M4X10
|
|
| 68. |
S3650103
|
[3] |
SCREW M4X10
|
|
| 72. |
2160-1004D10
|
[2] |
GROMMET
|
|
| 96. |
2195-1534
|
[1] |
BRACKET
|
|
