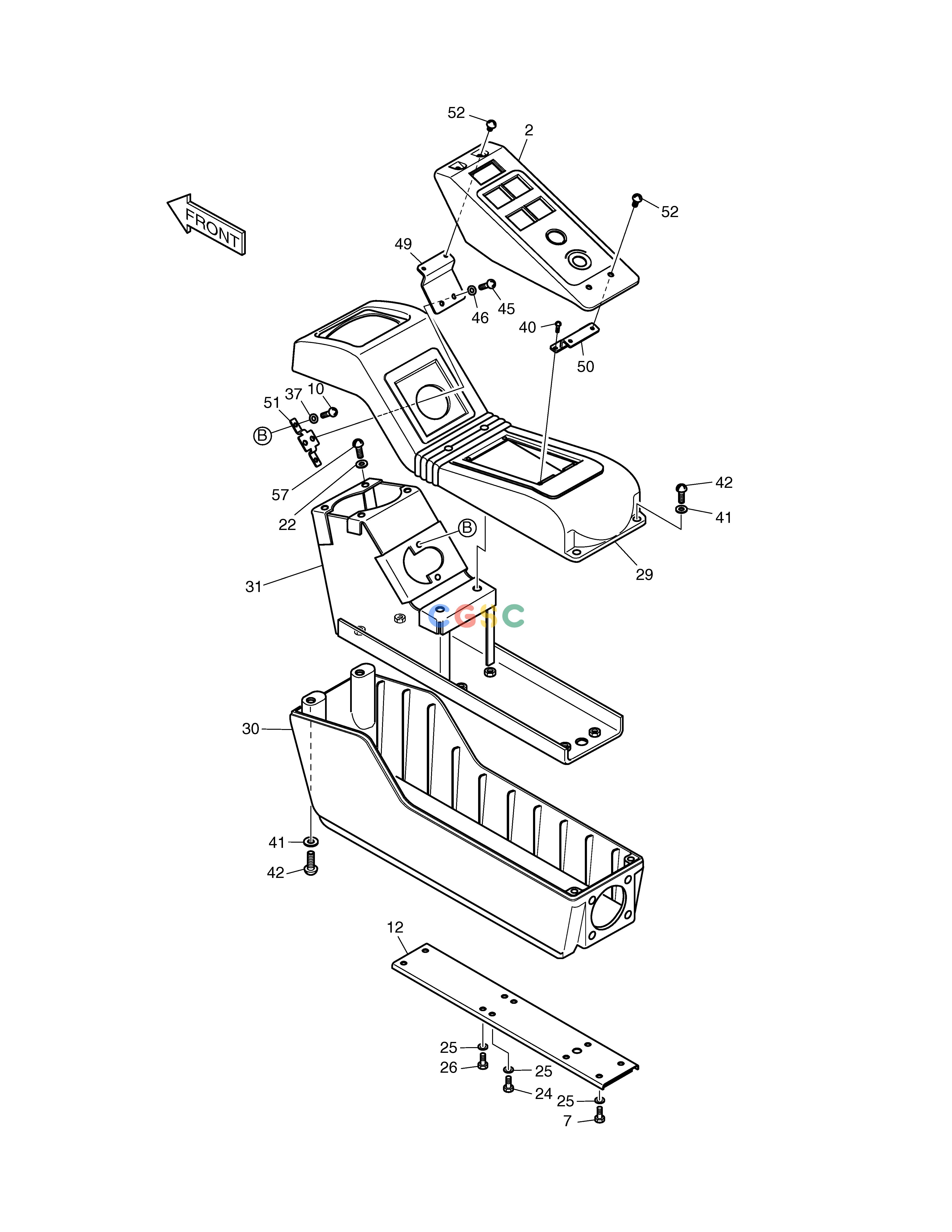

斗山零件查询CONTROL STAND(2)-R.H SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
986 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-00384C
|
[-] |
CONTROL STAND ASS'Y
|
|
| -. |
195-00384A
|
[-] |
CONTROL STAND ASS'Y
|
|
| -. |
195-00384B
|
[-] |
CONTROL STAND ASS'Y
|
|
| 10. |
2120-2166D33
|
[2] |
SCREW M4X0.7X10
|
|
| 12. |
195-00388A
|
[1] |
BRACKET(R.H)
|
|
| 2. |
621-01083A
|
[1] |
COVER;SWITCH(R.H)
|
|
| 22. |
S5110303
|
[4] |
WASHER;SPRING M6
|
|
| 24. |
2120-2166D25
|
[2] |
BOLT
|
|
| 25. |
2114-1898D2
|
[10] |
WASHER
|
|
| 26. |
2120-2166D5
|
[6] |
BOLT
|
|
| 29. |
2125-1078B
|
[1] |
CASE;UPPER
|
|
| 30. |
125-00020
|
[1] |
CASE;LOWER
|
|
| 31. |
2195-3763B
|
[1] |
BRACKET
|
|
| 37. |
2114-1898D13
|
[2] |
WASHER
|
|
| 40. |
2120-2166D22
|
[2] |
SCREW M3X0.5X12
|
|
| 41. |
2114-1898D4
|
[6] |
WASHER
|
|
| 42. |
2120-2166D23
|
[6] |
SCREW
|
|
| 45. |
2120-2166D23
|
[2] |
SCREW
|
|
| 46. |
2114-1058D64
|
[2] |
WASHER
|
|
| 49. |
195-01102A
|
[1] |
BRACKET
|
|
| 50. |
195-01103A
|
[1] |
BRACKET
|
|
| 51. |
195-00389A
|
[1] |
BRACKET
|
|
| 52. |
2120-2166D18
|
[4] |
SCREW
|
|
| 57. |
S0505053
|
[4] |
BOLT
|
|
| 7. |
2120-2166D38
|
[2] |
BOLT M8X1.25X35
|
|
