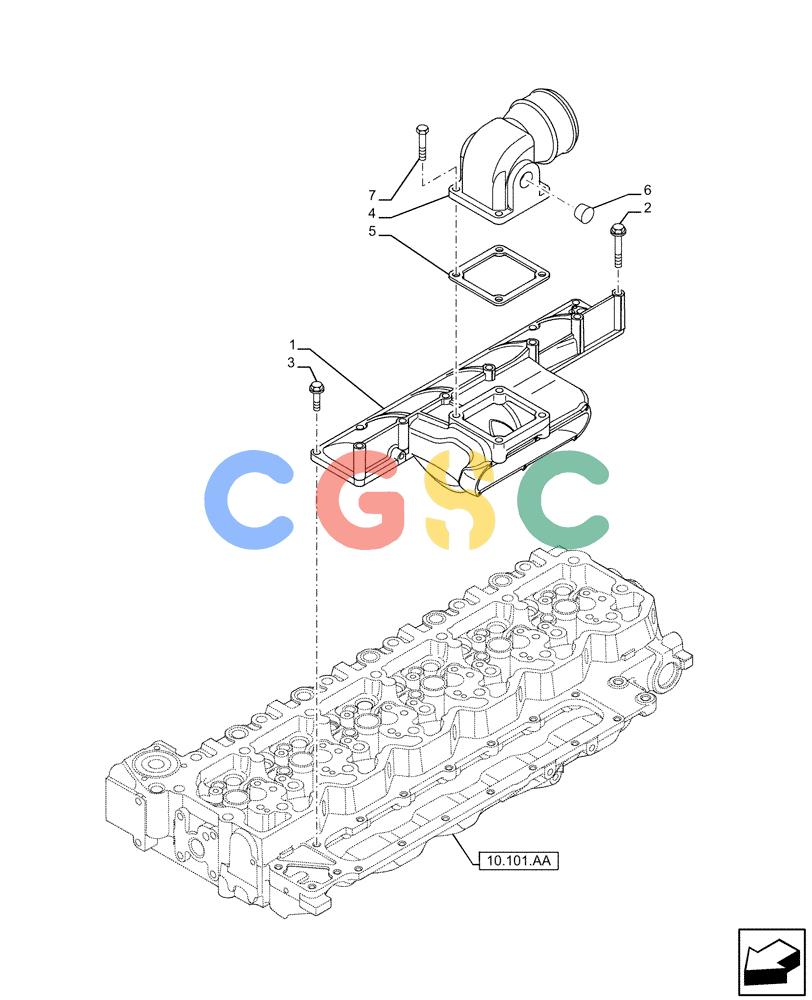

神钢零件查询(F4HFE613E B005) - ENGINE 5801925171 47748445 CX6080 S T4B (1/13-) (10.254.AM) - AIR INTAKE, MANIFOLD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
301 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854534 | [1] | INLET MANIFOLD | TOR Superseded by part number: 504114393 |
| 2. | 4895432 | [3] | SCREW,M8 x 1.25 x 70mm | TORM8 x 1.25 x 70 |
| 3. | 4899039 | [7] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TOR |
| 4. | 4895424 | [1] | INLET MANIFOLD | TOR |
| 5. | 4899921 | [1] | GASKET,1.2mm Thk | TOR |
| 6. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 7. | 2852212 | [4] | FLANGE BOLT,Hex, M8 x 1.25 x 25mm | TOR |
