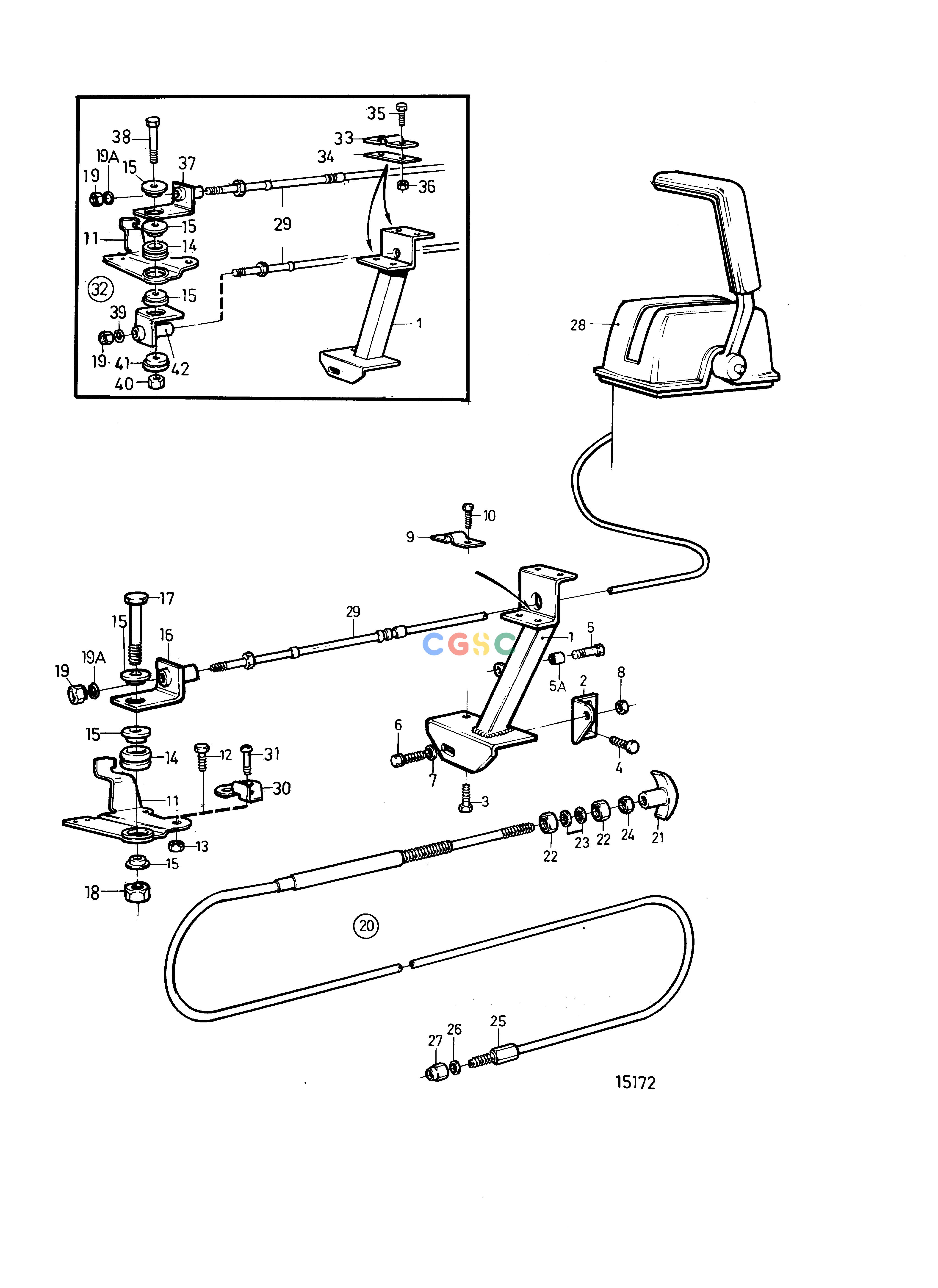

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AControlsControl Connection, Speed and Stop Control: SINGLE STATIONEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838783
|
[1] |
Bracket
|
|
| 2. |
838753
|
[1] |
Bracket
|
|
| 3. |
946471
|
[1] |
Flange screw
|
L=16mm
|
| 3. |
946441
|
[1] |
Flange screw
|
L=20mm
|
| 4. |
946440
|
[2] |
Flange screw
|
|
| 5. |
947542
|
[1] |
Flange screw
|
|
| 5A. |
|
|
|
|
| 6. |
945444
|
[1] |
Flange screw
|
|
| 7. |
191172
|
[1] |
Washer
|
|
| 8. |
948645
|
[1] |
Flange lock nut
|
|
| 9. |
21471054
|
[1] |
Bracket
|
|
| 10. |
956078
|
[2] |
Cross recessed screw
|
|
| 11. |
858261
|
[1] |
Lever
|
|
| 12. |
946544
|
[1] |
Flange screw
|
|
| 13. |
949278
|
[1] |
Flange lock nut
|
|
| 14. |
843109
|
[1] |
Bushing
|
|
| 15. |
843105
|
[3] |
Spacer washer
|
|
| 16. |
843107
|
[1] |
Anchorage
|
|
| 17. |
955274
|
[1] |
Hexagon screw
|
|
| 18. |
949278
|
[1] |
Flange lock nut
|
|
| 19. |
951674
|
[1] |
Lock nut
|
|
| 19A. |
955971
|
[1] |
O-ring
|
|
| 20. |
818478
|
[1] |
Push pull control
|
L=3,3mm
|
| 20. |
818470
|
[1] |
Push pull control
|
L=6,9mm
|
| 21. |
829241
|
[1] |
Handle
|
|
| 22. |
955857
|
[2] |
Hexagon nut
|
|
| 23. |
955950
|
[2] |
Toothed washer
|
|
| 24. |
955844
|
[1] |
Hexagon nut
|
|
| 25. |
829070
|
[1] |
Cable lock
|
|
| 26. |
955894
|
[2] |
Washer
|
|
| 27. |
950363
|
[1] |
Lock nut
|
|
| 28. |
|
|
|
|
| 29. |
|
|
|
|
| 30. |
860959
|
[1] |
Stop dog
|
|
| 31. |
956094
|
[1] |
Cross recessed screw
|
|
