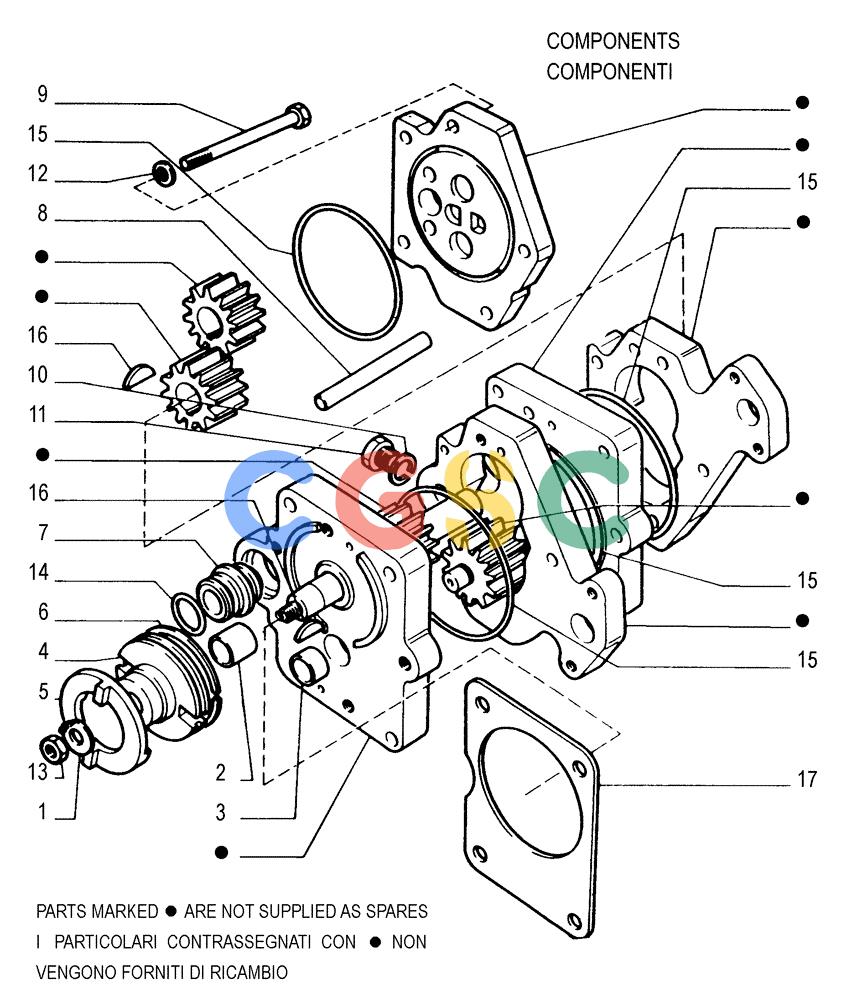

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.200[09]) - TRANSMISSION-CONVERTER PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
430 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 588915 | [1] | LOCK WASHER,10.5mm ID x 17.8mm OD x 0.9mm Thk | LEC |
| 2. | 591055 | [1] | BUSHING,15.45mm ID x 19mm OD x 21mm L | LEC |
| 3. | 591707 | [4] | BUSHING,15.45mm ID x 19mm OD x 16mm L | MOD Superseded by part number: 80591707 |
| 4. | 591794 | [1] | CHANNEL | LEC |
| 5. | 4526899 | [1] | COUPLING RING | BRE |
| 6. | 4526900 | [1] | SNAP RING | BRE |
| 7. | 4952685 | [1] | HYD CONNECTOR | LEC |
| 8. | 4960323 | [2] | PIN | LEC |
| 9. | 4960324 | [5] | SCREW | LEC |
| 10. | 10263160 | [1] | SEALING WASHER,M18.3 x 24 x 1 | JES |
| 11. | 10300811 | [1] | PLUG,M18 x 1.5 x 14, Cl5.8 | IMO Superseded by part number: 16992511 |
| 12. | 10516671 | [5] | LOCK WASHER | BHB8,1X2,2 Superseded by part number: 83990583 |
| 13. | 12164721 | [1] | NUT,M10 x 1.25, Cl 10 | TTF |
| 14. | 14462881 | [3] | O-RING,18.64mm ID x 3.53" Width | LEC Superseded by part number: 86625107, 76022809 |
| 15. | 14465481 | [4] | O-RING,3.234" ID x 3.512" OD x 0.139" | LEC(M82.14 ID x 3.53 Thk) |
| 16. | 79014342 | [2] | KEY | LEC |
| 17. | 79038142 | [1] | GASKET,0.8mm Thk | LEC |
